 Posted: Sat Oct 27, 2007 11:42 am Post subject: Front and rear aprons. |
 |
|
Decided not to do any sanding right now as the weather is cold and I wouldn't want to leave bare metal unprimed. So I am trying to remove the front and rear aprons. I got all the bolts out of the rear and it is like super glued or something. Is there a trick to removal on these things? I did have one bolt stripped and had to force it out with a screw driver behind it. One other bolt the holder just kept turning and got it out. Now what do I do? And if you have any input on if I should or shouldn't sand the car down in the winter in Colorado and leave it out in the weather let me know. I thought maybe it would rust even more if I did.
Oh this is a 70 regular bug.
_________________
<===Lefty===
Lazear Colorado
2000 Jetta TDI Stock
2007 Yamaha Big Bear
1970 Vw Bug Rebuilding
Monsoon 90 CC Grandkids |
|
| Back to top |
|
 |
73BuzzBomb
Samba Member
Joined: December 14, 2003
Posts: 895
Location: Baldwin/Smyrna, GA
|
| Posted: Sat Oct 27, 2007 11:53 am Post subject: |
|
|
the aprons are not bolted on. they're welded on. you'll have to drill out the spot welds.
_________________
'73 Super
2270 type IV |
|
| Back to top |
|
|
lefty2053
Samba Member
Joined: January 08, 2007
Posts: 40
|
| Posted: Sat Oct 27, 2007 2:24 pm Post subject: |
|
|
| 73BuzzBomb wrote: |
| the aprons are not bolted on. they're welded on. you'll have to drill out the spot welds. |
I guess I will have to just try and repair the aprons. I could not find any spot welds or welds at all on it. The back that is. I haven't even looked at the front yet.
_________________
<===Lefty===
Lazear Colorado
2000 Jetta TDI Stock
2007 Yamaha Big Bear
1970 Vw Bug Rebuilding
Monsoon 90 CC Grandkids |
|
| Back to top |
|
|
Mr. Unpopular
Samba Member
Joined: September 20, 2005
Posts: 3715
Location: Tampa Florida
|
| Posted: Sat Oct 27, 2007 3:00 pm Post subject: |
|
|
The spot welds will be on the sides of the aprons where the fender bolts up.
_________________
"In any racing engine, the nearer you are to it disintegrating, the better it's performance will be"
-Keith Duckworth, creator of the Ford/Cosworth DFV |
|
| Back to top |
|
|
lefty2053
Samba Member
Joined: January 08, 2007
Posts: 40
|
| Posted: Sat Oct 27, 2007 3:58 pm Post subject: |
|
|
| Florida_Buggy wrote: |
| The spot welds will be on the sides of the aprons where the fender bolts up. |
Do you know how many there are? Are they obvious?
_________________
<===Lefty===
Lazear Colorado
2000 Jetta TDI Stock
2007 Yamaha Big Bear
1970 Vw Bug Rebuilding
Monsoon 90 CC Grandkids |
|
| Back to top |
|
|
lefty2053
Samba Member
Joined: January 08, 2007
Posts: 40
|
| Posted: Sat Oct 27, 2007 4:00 pm Post subject: |
|
|
Do you have to remove the fenders to see them?
_________________
<===Lefty===
Lazear Colorado
2000 Jetta TDI Stock
2007 Yamaha Big Bear
1970 Vw Bug Rebuilding
Monsoon 90 CC Grandkids |
|
| Back to top |
|
|
a.wilson
Samba Member
Joined: January 11, 2007
Posts: 2033
Location: Georgia
|
| Posted: Sat Oct 27, 2007 4:11 pm Post subject: |
|
|
| lefty2053 wrote: |
| Do you have to remove the fenders to see them? |
Yes. Once you remove a fender, look close to the edge of the apron, and you'll notice little round "spots' in the metal. They will be the spot welds.
I counted around 9 or so spotwelds on the left side rear-lower quarter panel (for rear apron) on my '74 project. There is also a little braze-weld at the top part of the rear apron to quarter panel.. (Hope this explanation is clear enough!).
_________________
Be kind to all critters. America's "H8TERZ" can drink sludgy used Motor Oil!
oemwolf |
|
| Back to top |
|
|
lefty2053
Samba Member
Joined: January 08, 2007
Posts: 40
|
| Posted: Sun Oct 28, 2007 6:17 am Post subject: |
|
|
Thanks for the info a.wilson. I now have a clue where to look. My Rear Apron is in pretty bad shape and some one before me tried to pull out the dents and left a bunch of holes and the dent is still there. Would rather just replace it.
_________________
<===Lefty===
Lazear Colorado
2000 Jetta TDI Stock
2007 Yamaha Big Bear
1970 Vw Bug Rebuilding
Monsoon 90 CC Grandkids |
|
| Back to top |
|
|
keifernet
Samba Search & Rescue
Joined: May 11, 2002
Posts: 19395
Location: Samba Center for Behavioral Science
|
| Posted: Sun Oct 28, 2007 9:25 am Post subject: |
|
|
| lefty2053 wrote: |
| Thanks for the info a.wilson. I now have a clue where to look. My Rear Apron is in pretty bad shape and some one before me tried to pull out the dents and left a bunch of holes and the dent is still there. Would rather just replace it. |
Check out page 8 of my "gallery" images on this site. I have some pics or rear apron replacement.

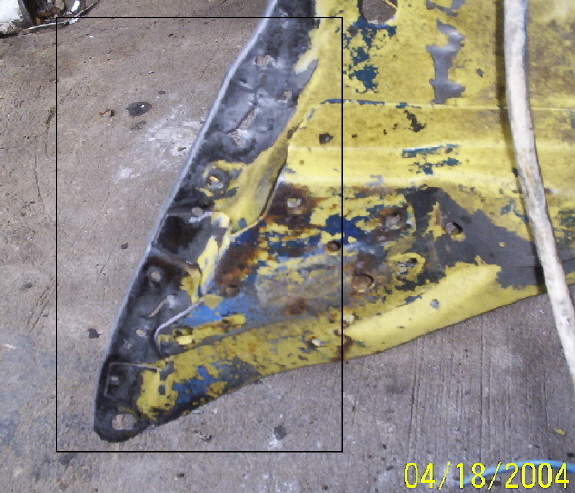

Example... this is where the spot welds are drilled out
There are also many threads on this in the paint and body forum.
and here is a good webpage from another samba member on the front apron.
http://www.my65bug.com/front_apron.htm |
|
| Back to top |
|
|
lefty2053
Samba Member
Joined: January 08, 2007
Posts: 40
|
| Posted: Sun Oct 28, 2007 10:31 am Post subject: |
|
|
Thanks for the Pics keifernet . I think I'm on my way to fixing this thing now.
_________________
<===Lefty===
Lazear Colorado
2000 Jetta TDI Stock
2007 Yamaha Big Bear
1970 Vw Bug Rebuilding
Monsoon 90 CC Grandkids |
|
| Back to top |
|
|
keifernet
Samba Search & Rescue
Joined: May 11, 2002
Posts: 19395
Location: Samba Center for Behavioral Science
|
|
| Back to top |
|
|
johneliot
Samba Member
Joined: August 29, 2005
Posts: 2191
Location: Chico, CA
|
| Posted: Sun Oct 28, 2007 12:27 pm Post subject: |
|
|
Here's a couple of pictures that you can use to help you find the spot welds:
John
_________________
John
There is no distinctly American criminal class - except Congress.
Mark Twain
69 bug - "The Grey Ghost" |
|
