Volkswagen Shop Manual - Fresh Air Heating and Air Conditioning
Click on any link to see it full size.
Please right click on any of the PDF links and download them to your computer before viewing, do not view them online.

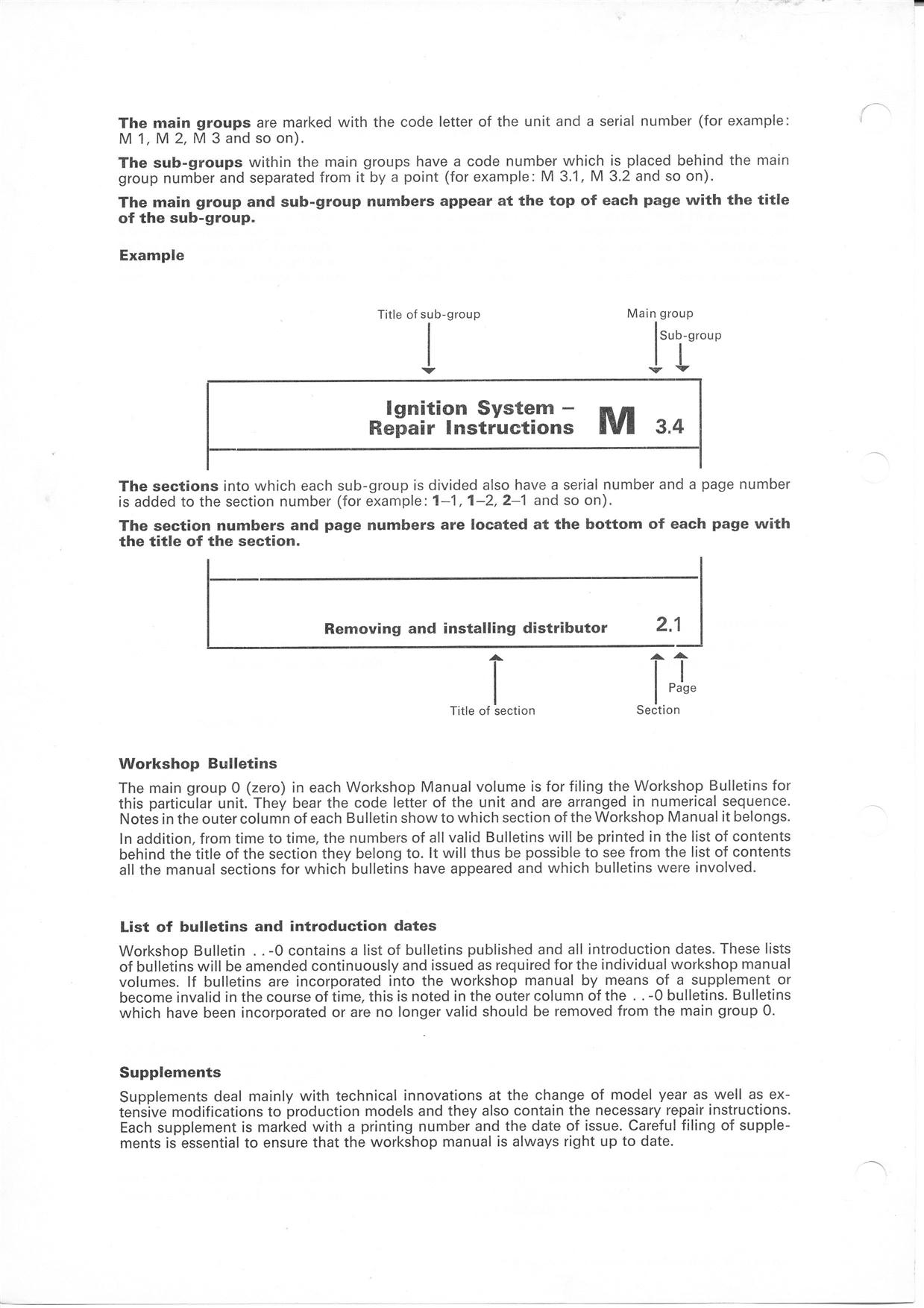

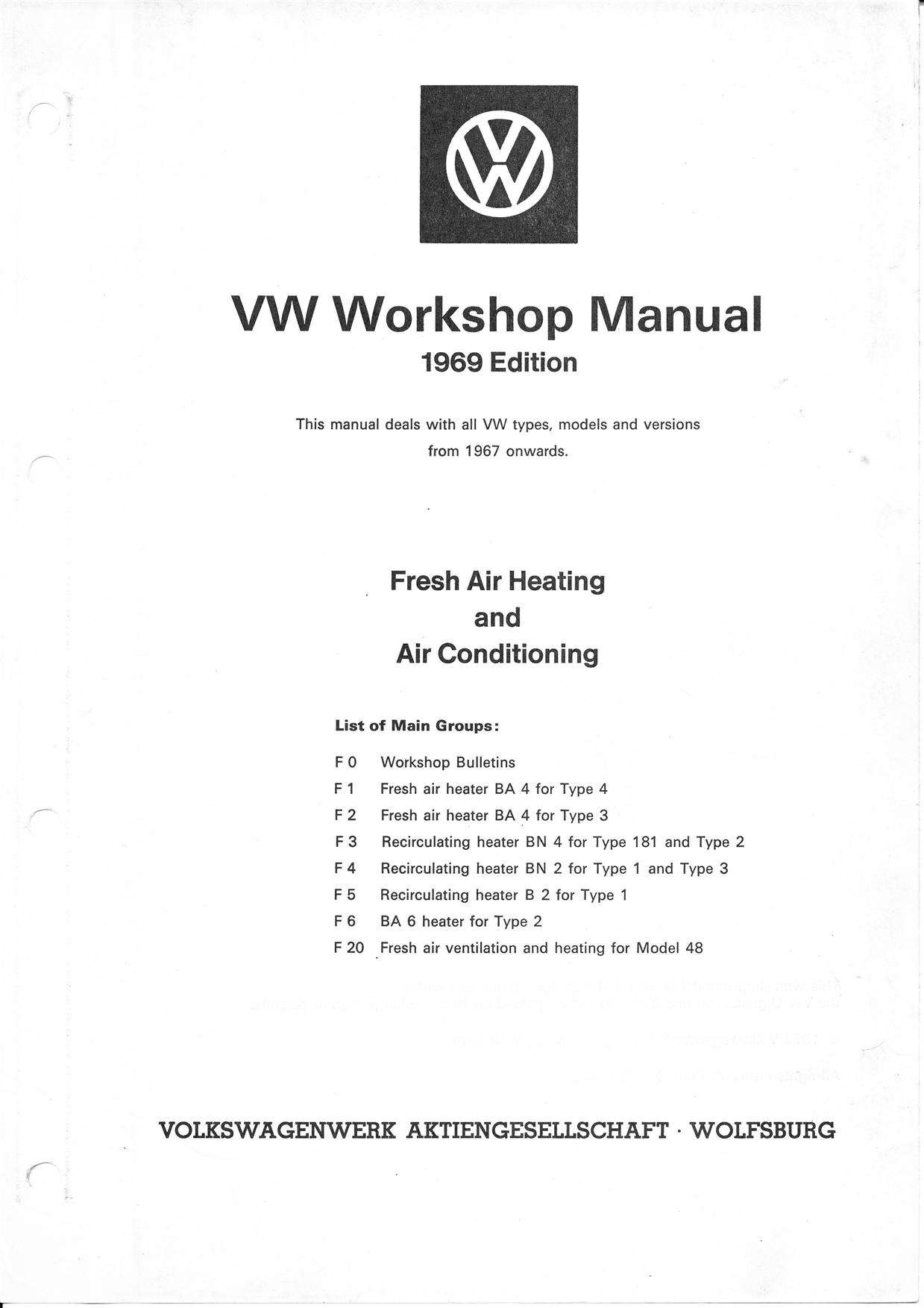

Introduction 1 2

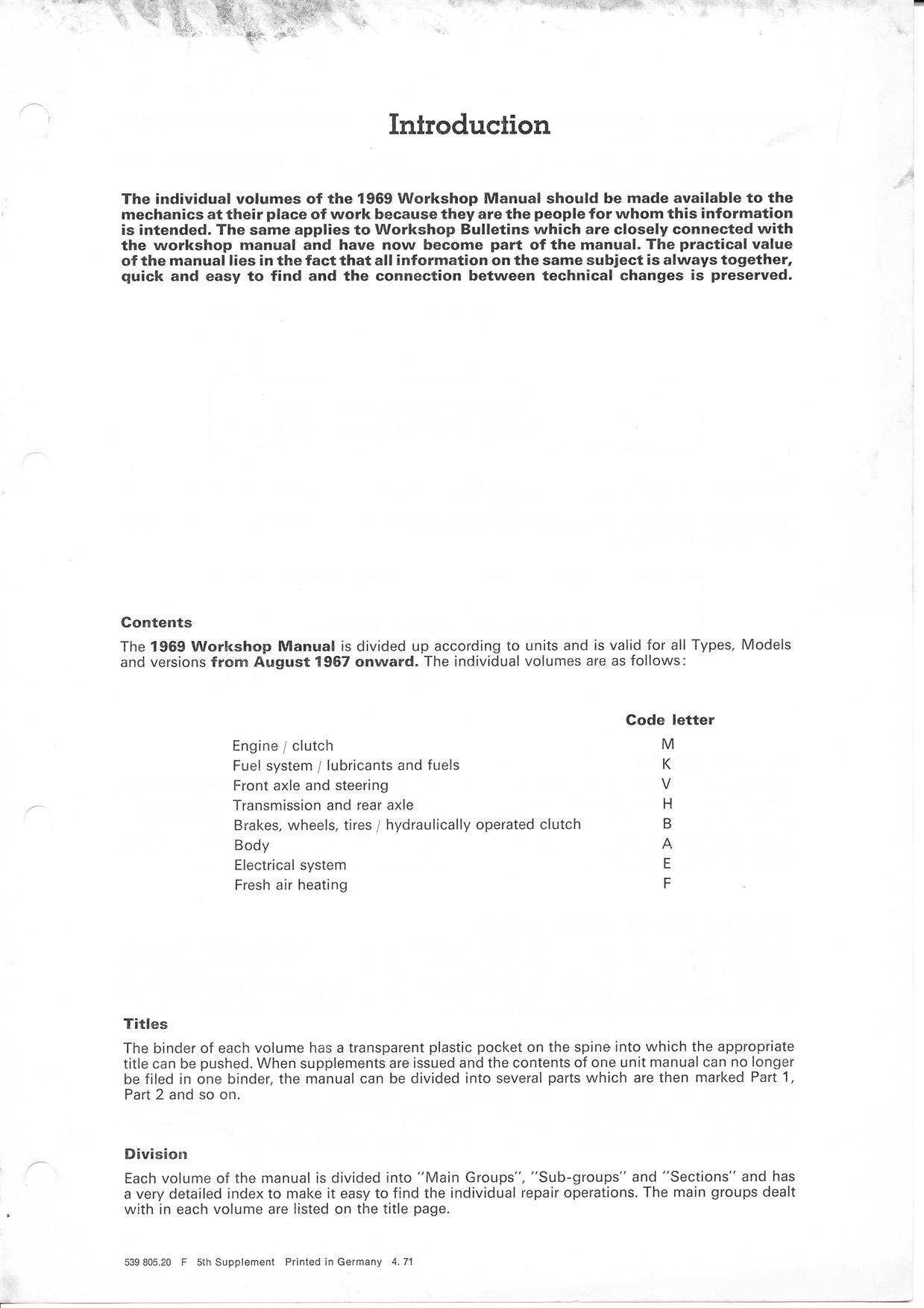

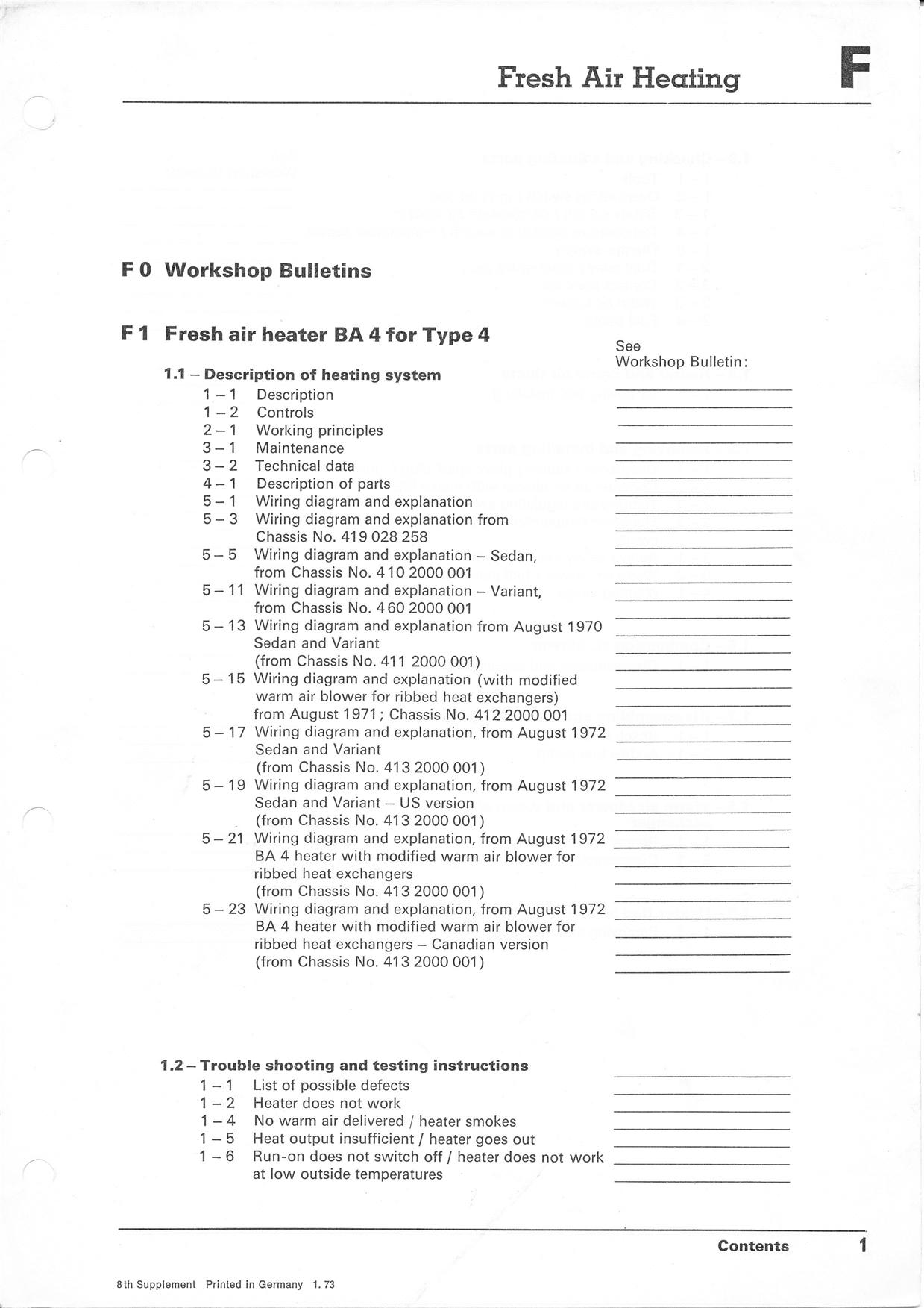

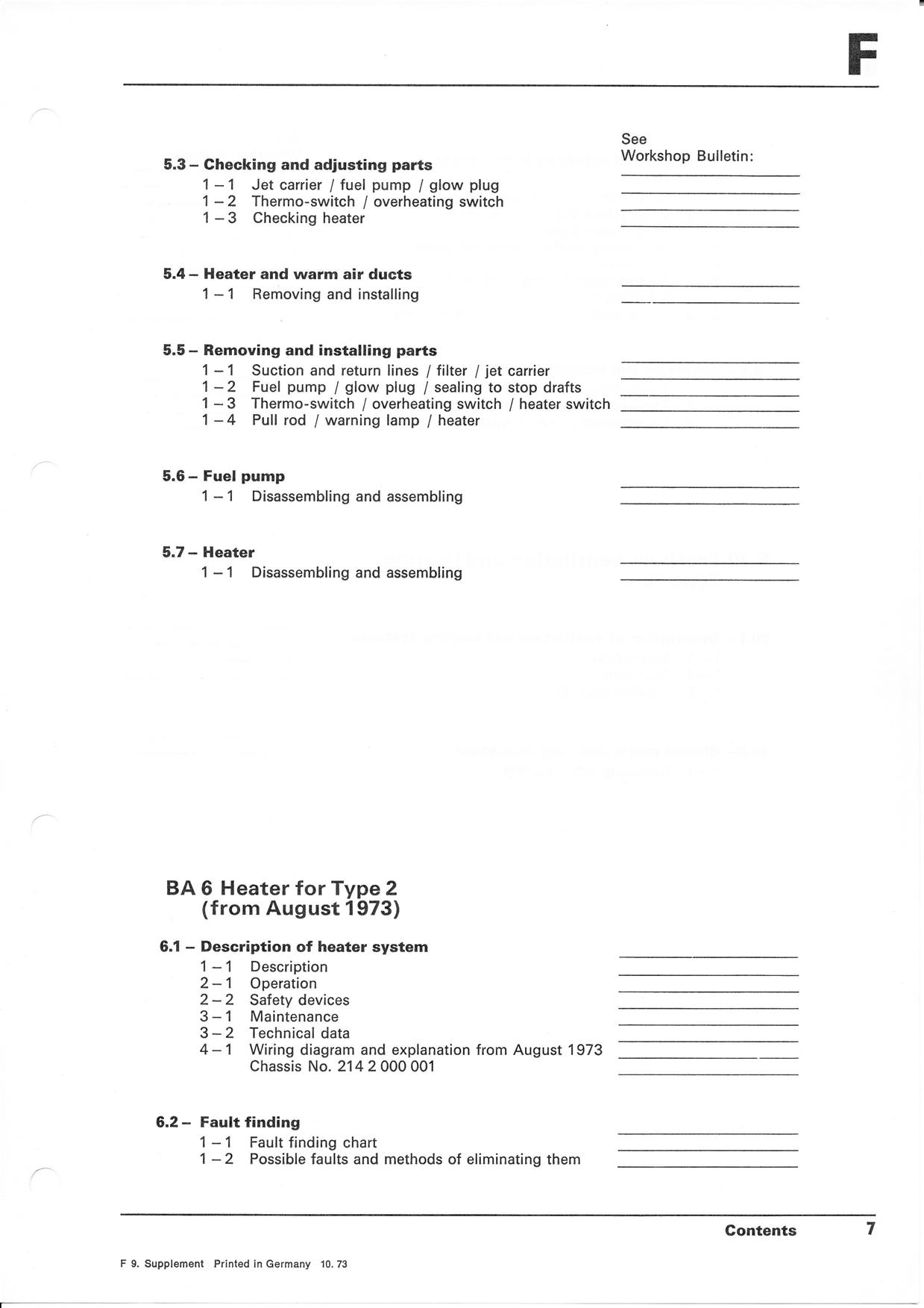

Contents 1 2 3 4 5 6 7 8

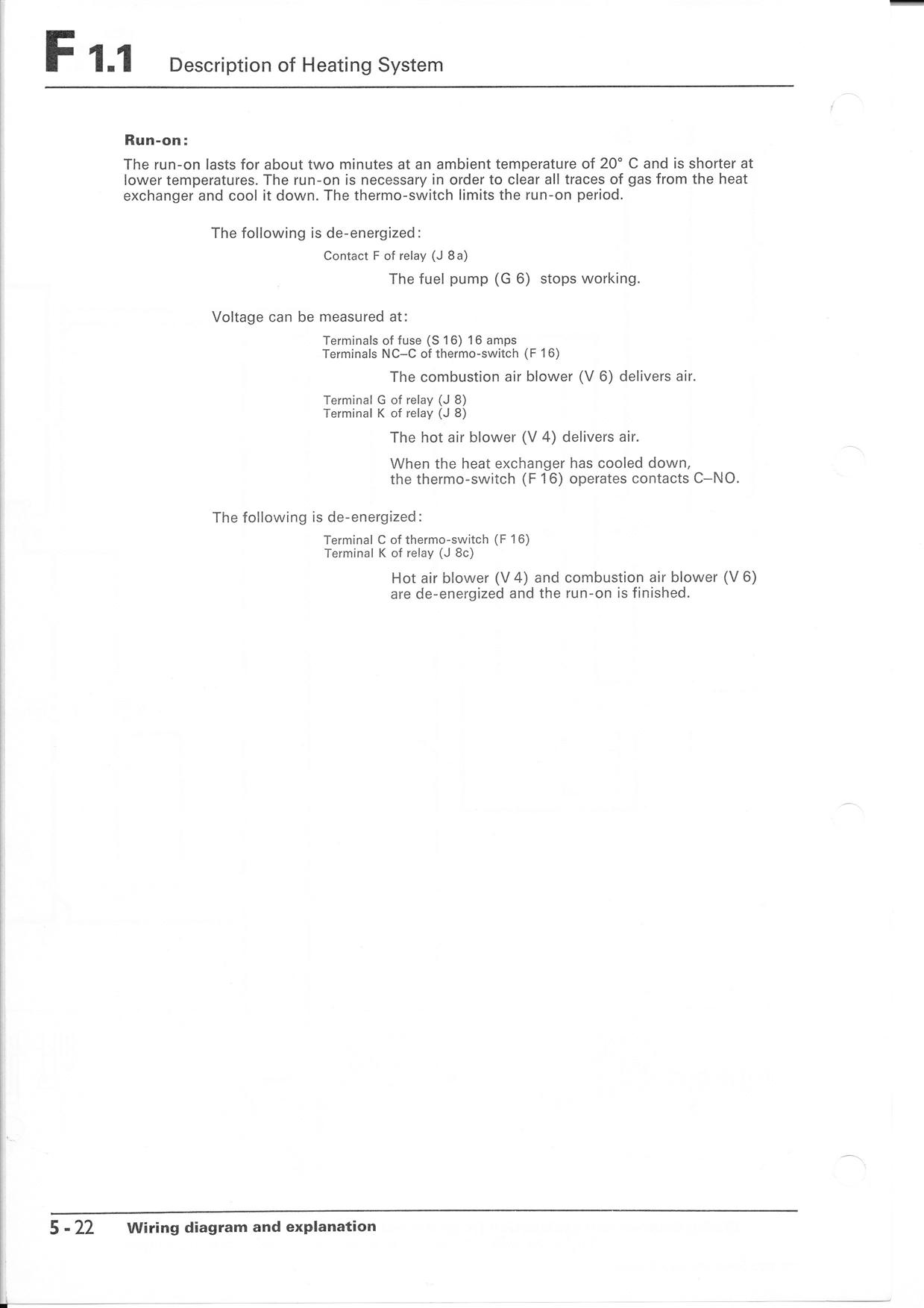

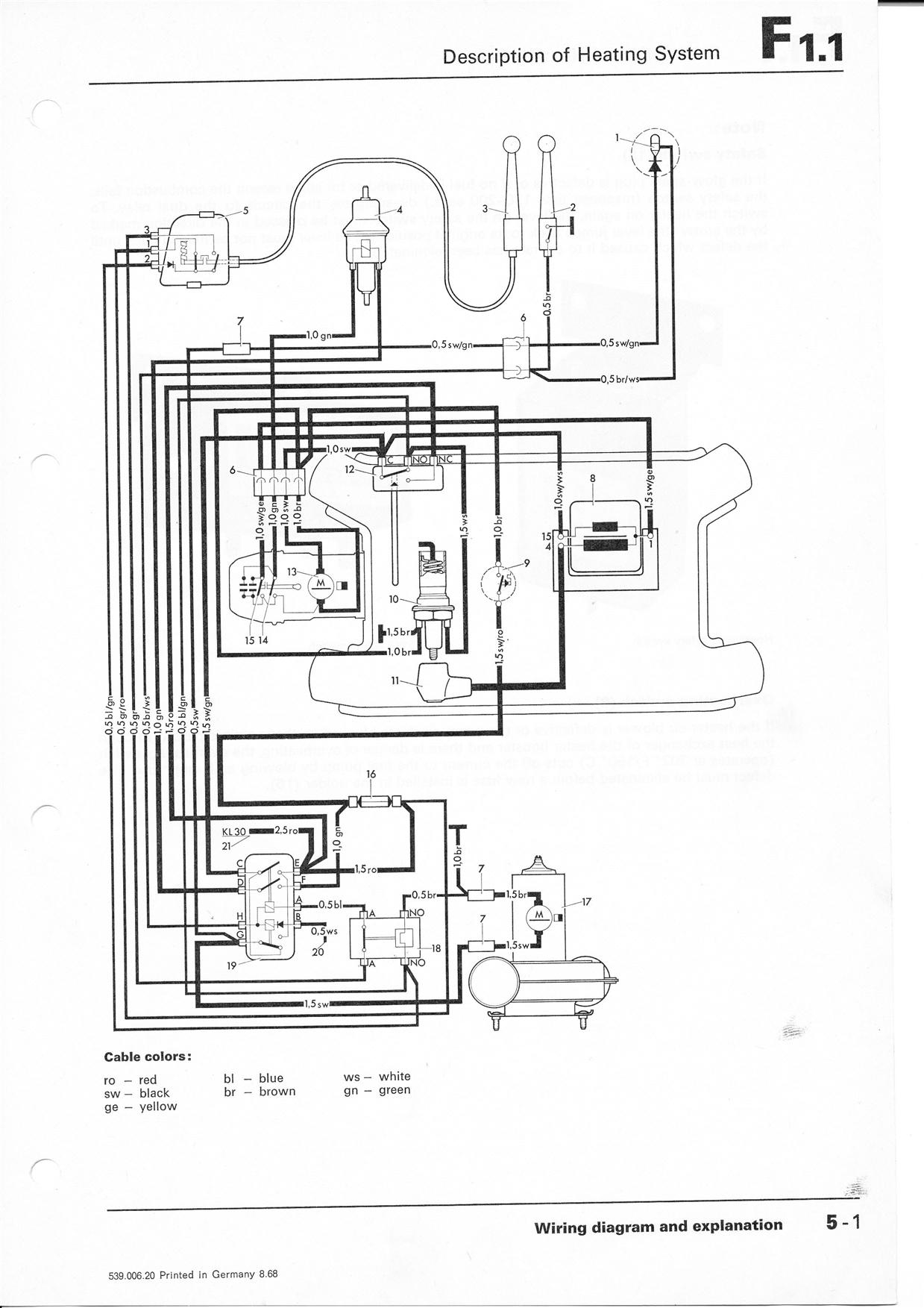

F1 - Fresh Air Heating, Type 4 - Section F1 PDF (73.8 MB)
F1 - Index

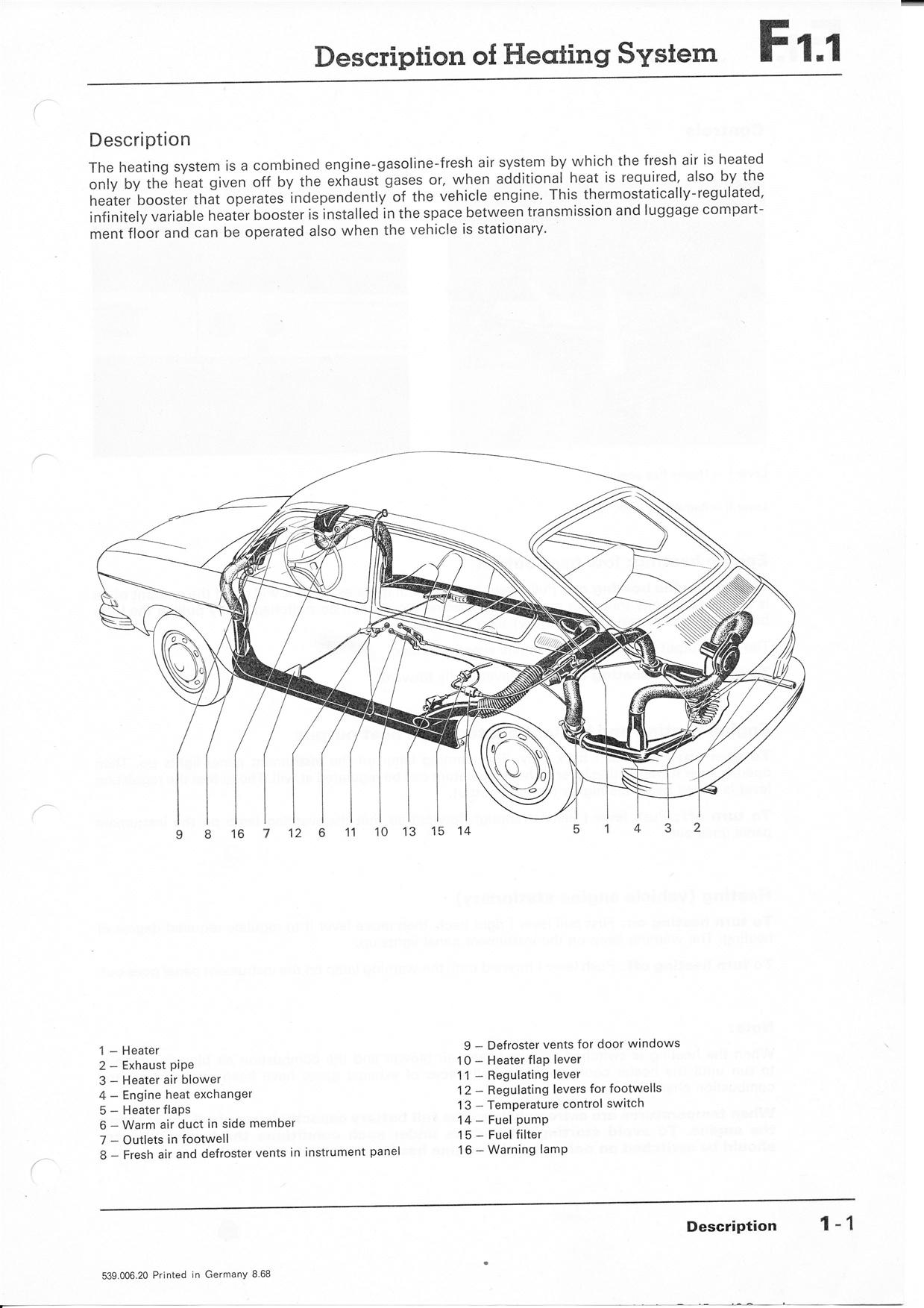

F1.1 1-1 1-2
F1.1 2-1 2-2
F1.1 3-1

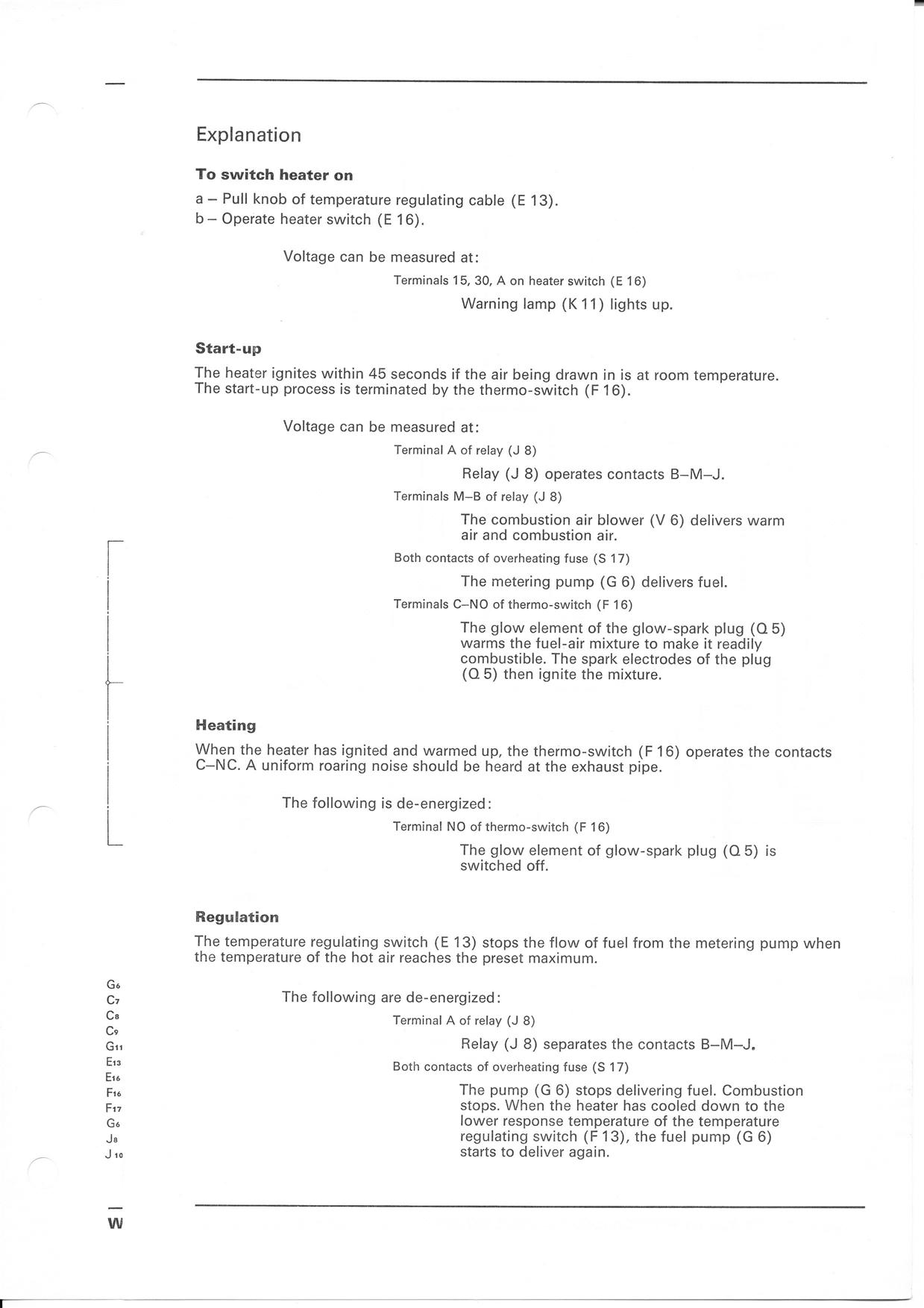

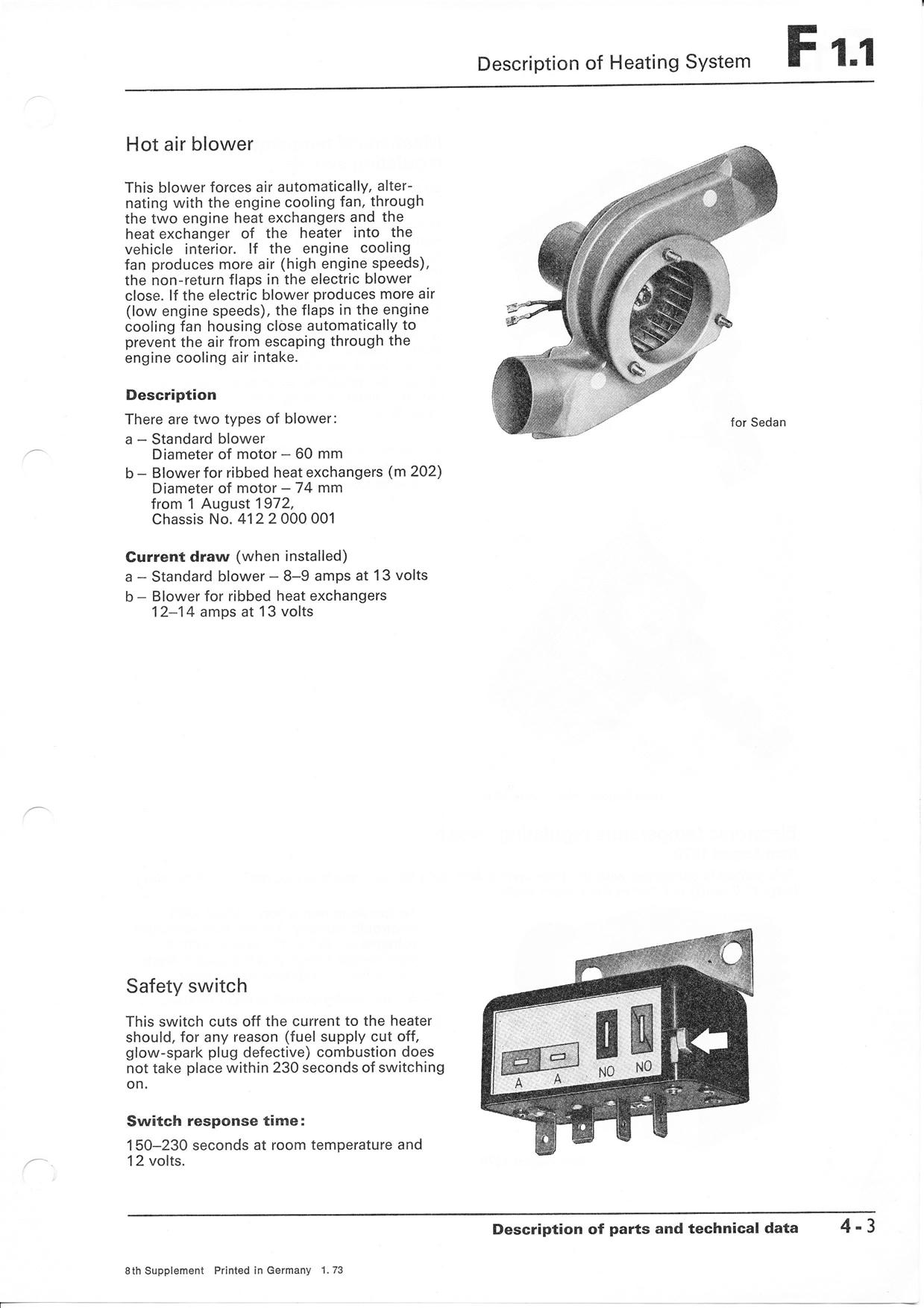

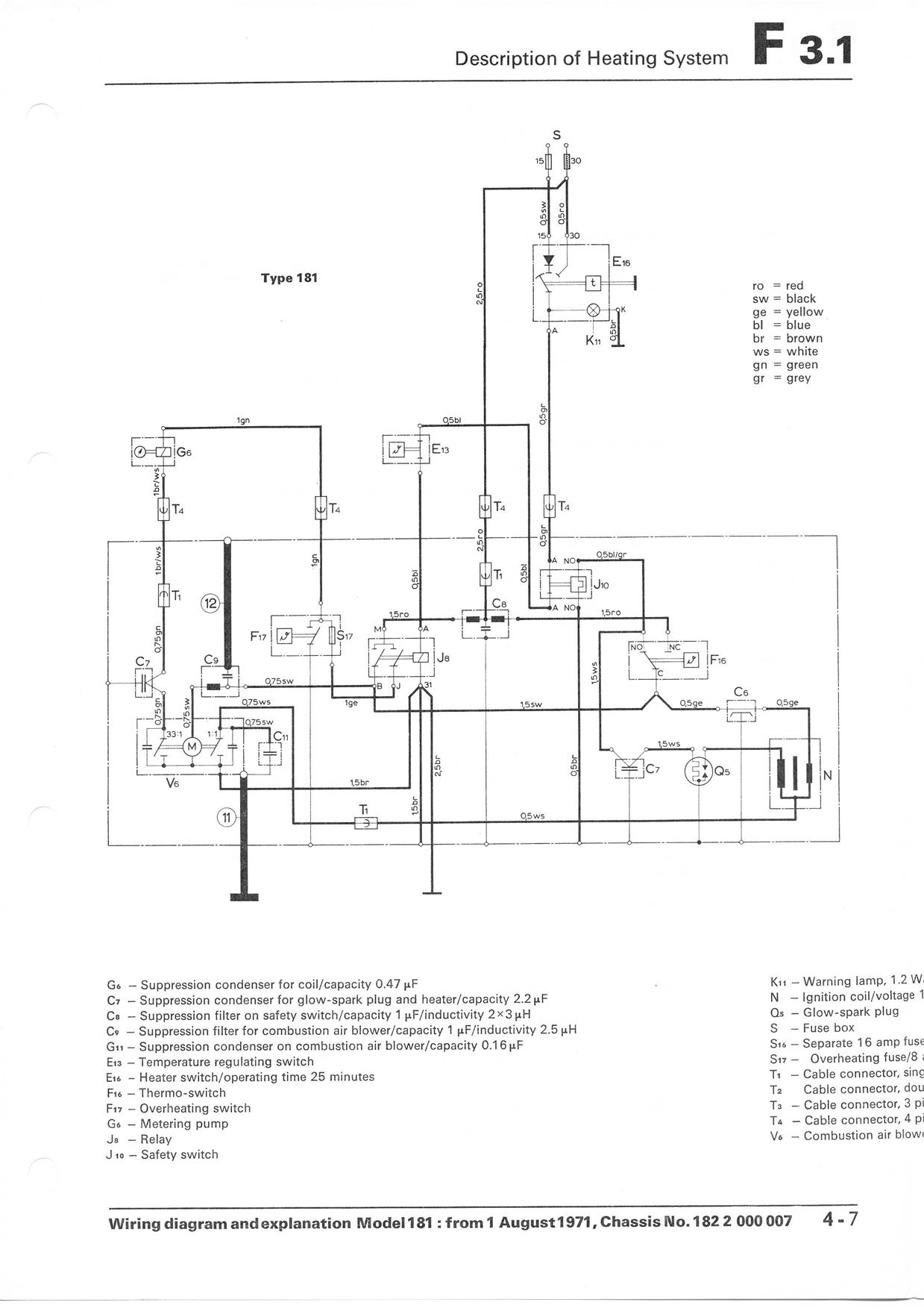

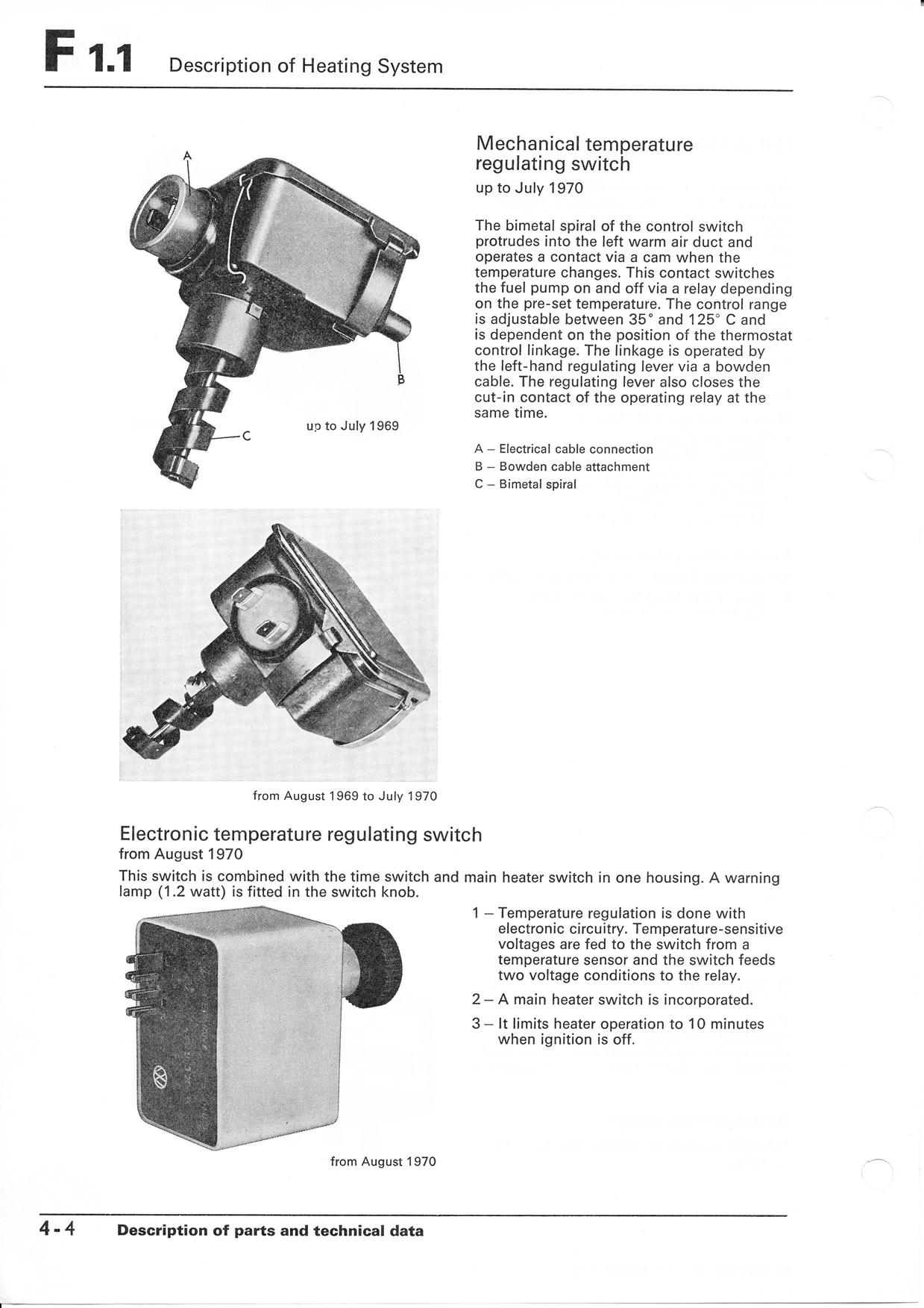

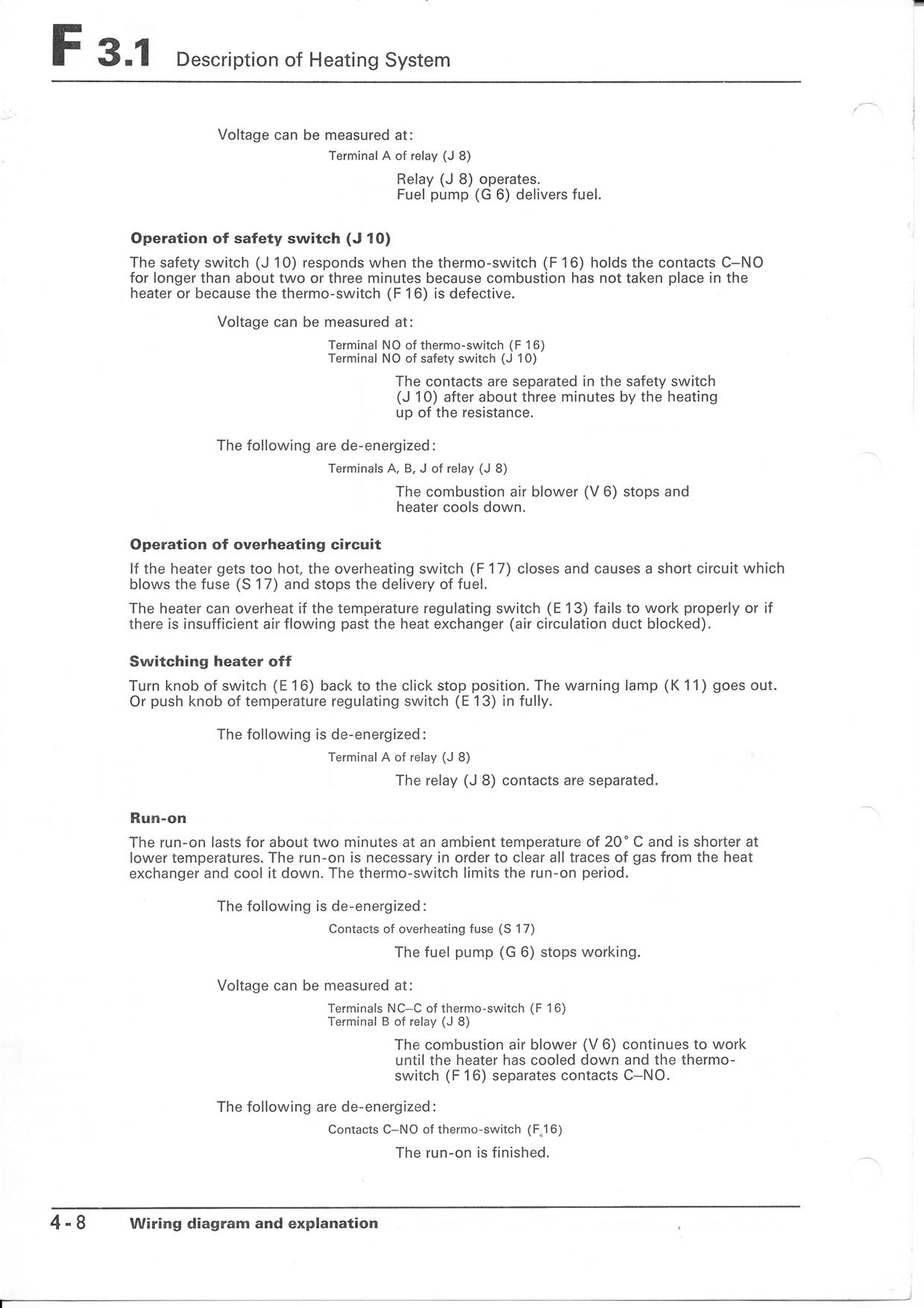

F1.1 4-1 4-2 4-3 4-4 4-5 4-6 4-7a 4-7b 4-8a 4-8b
F1.1 5-1a 5-1b 5-2 5-3 5-4 5-a 5-5b 5-6

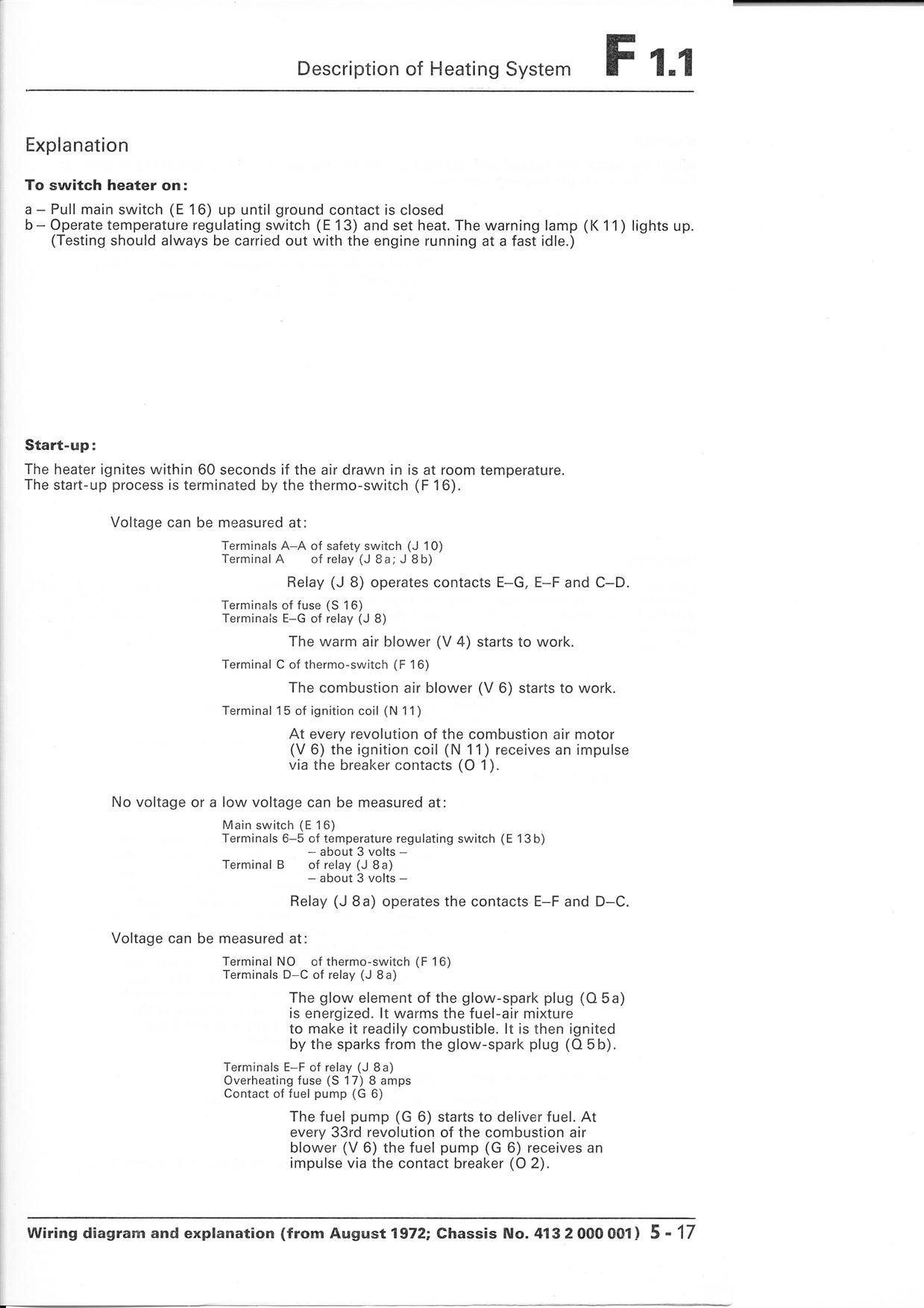

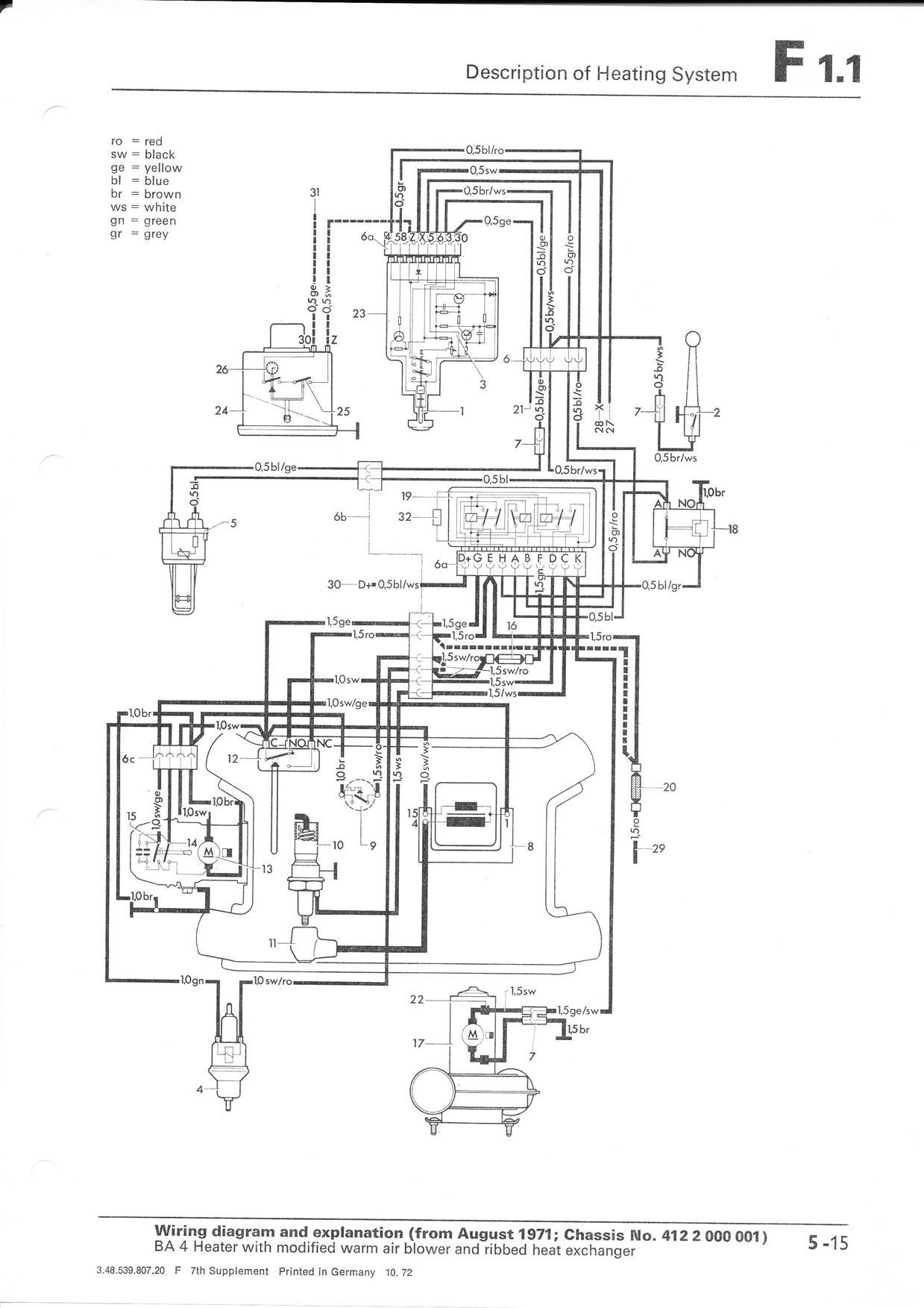

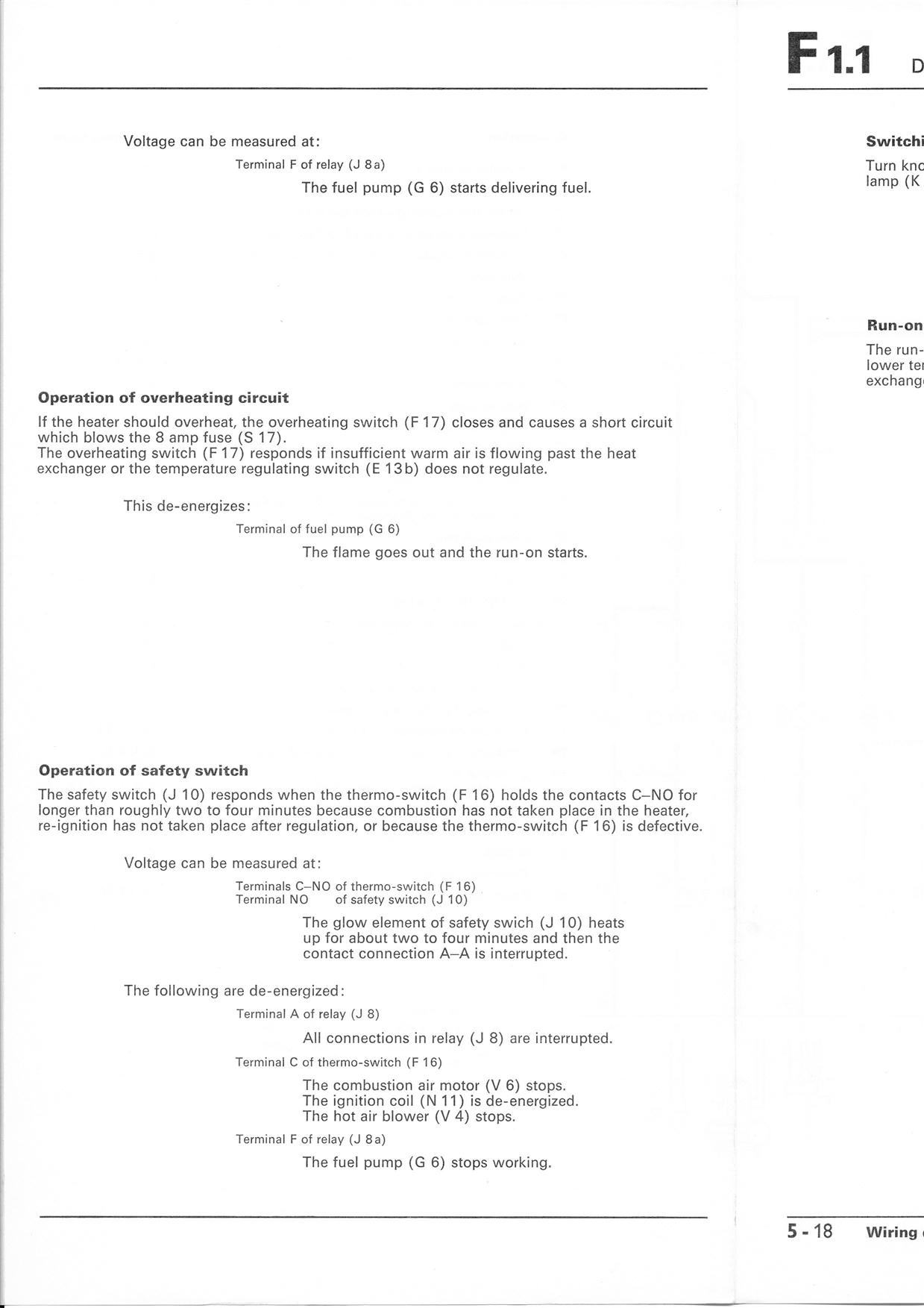

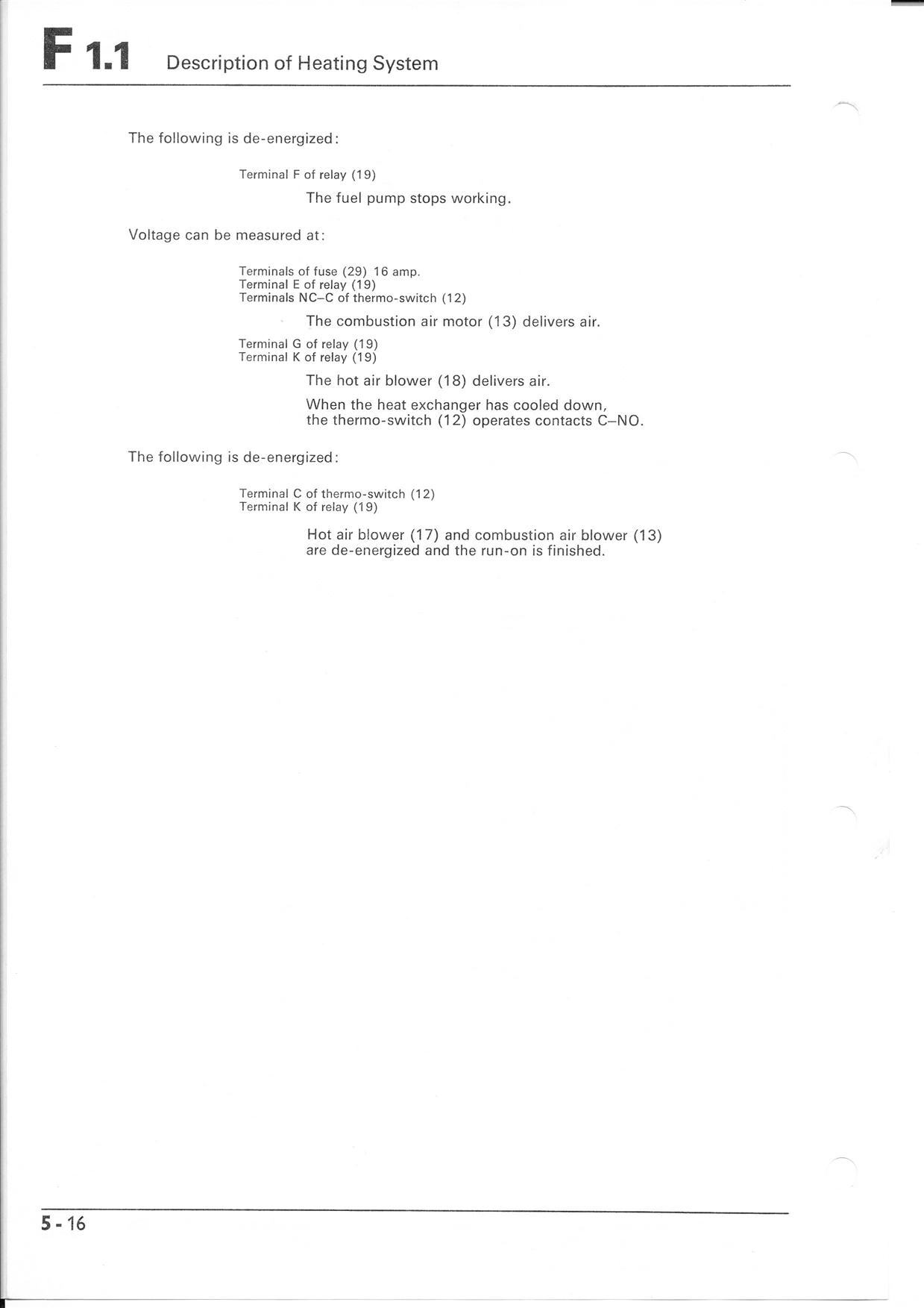

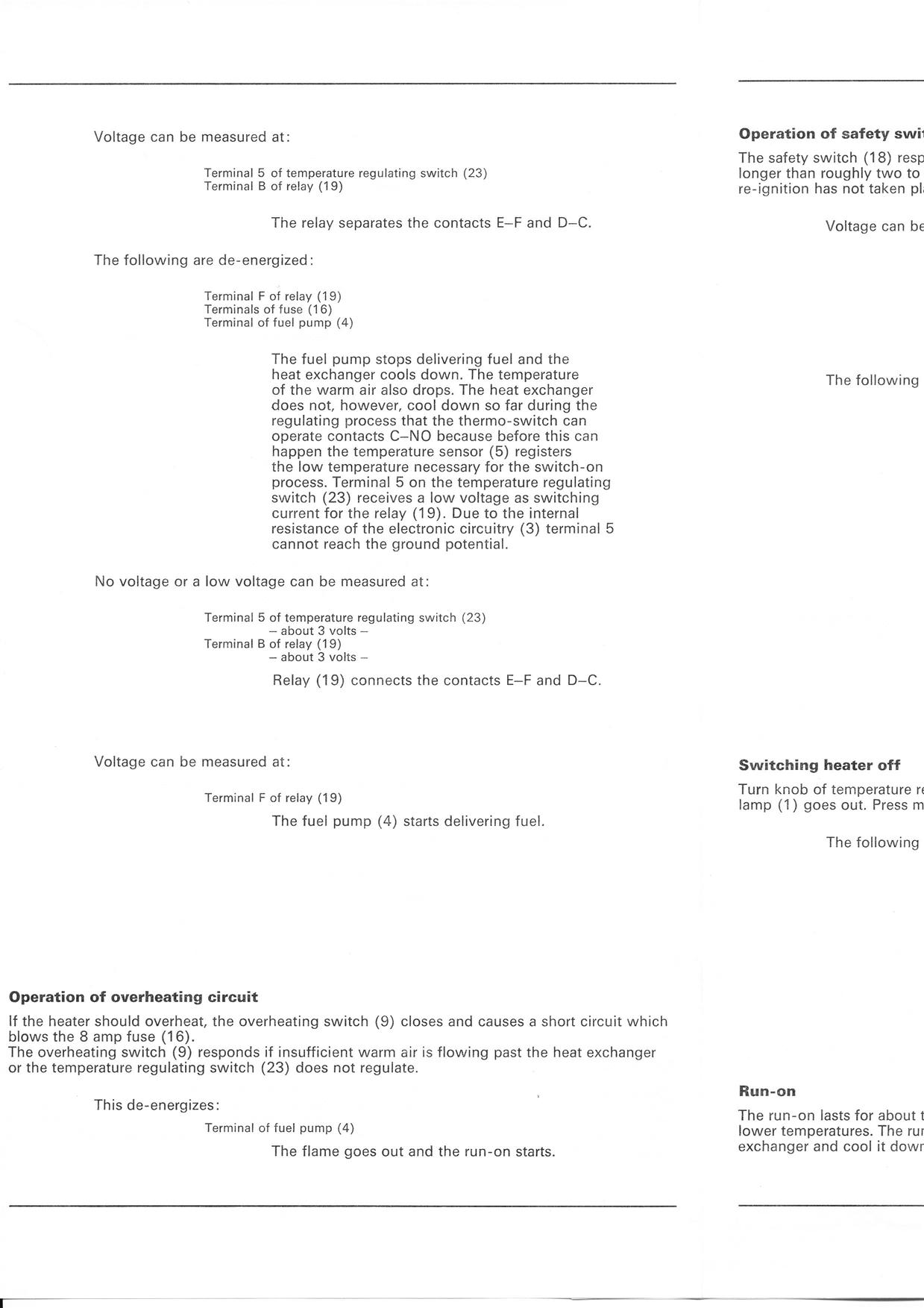

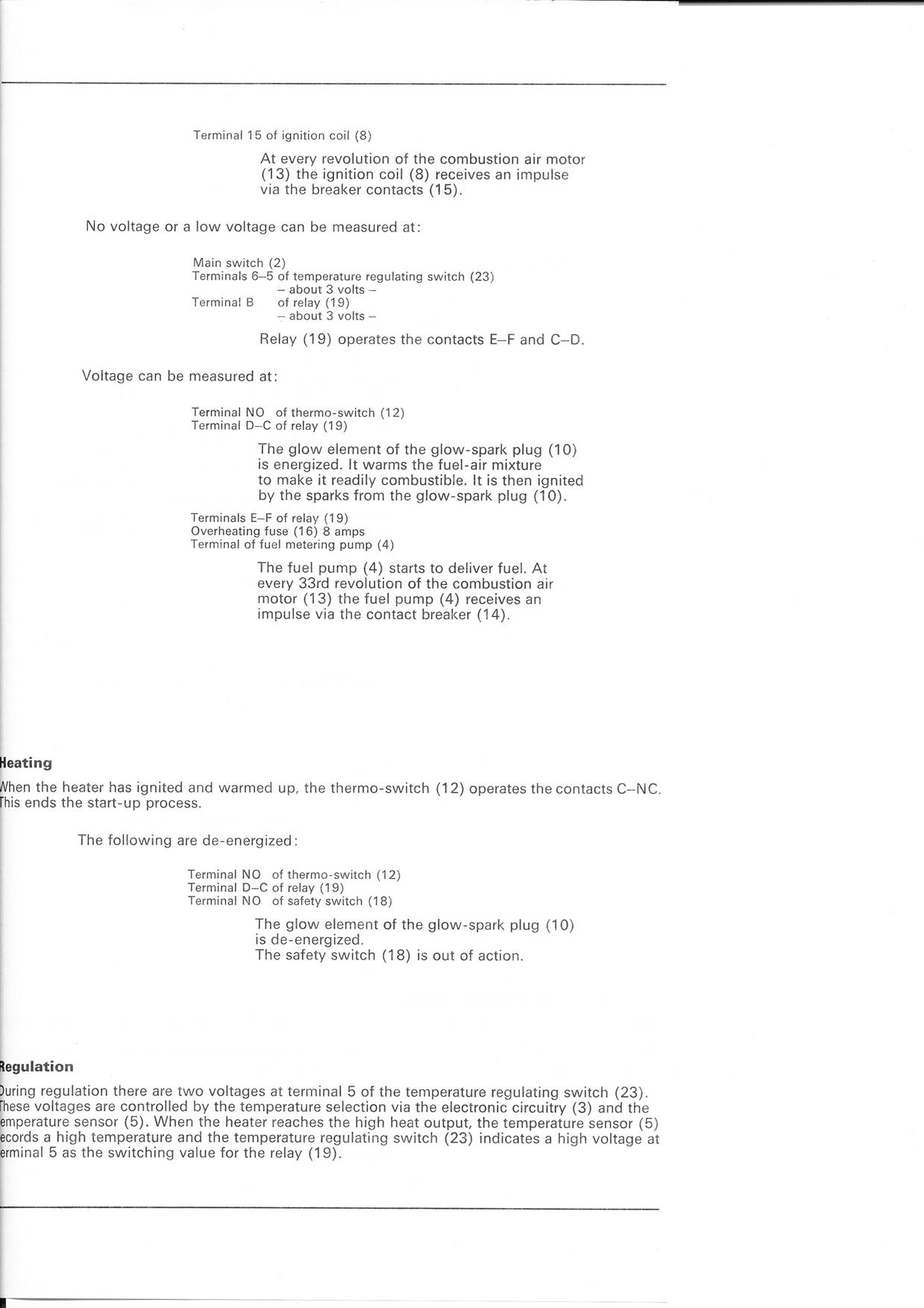

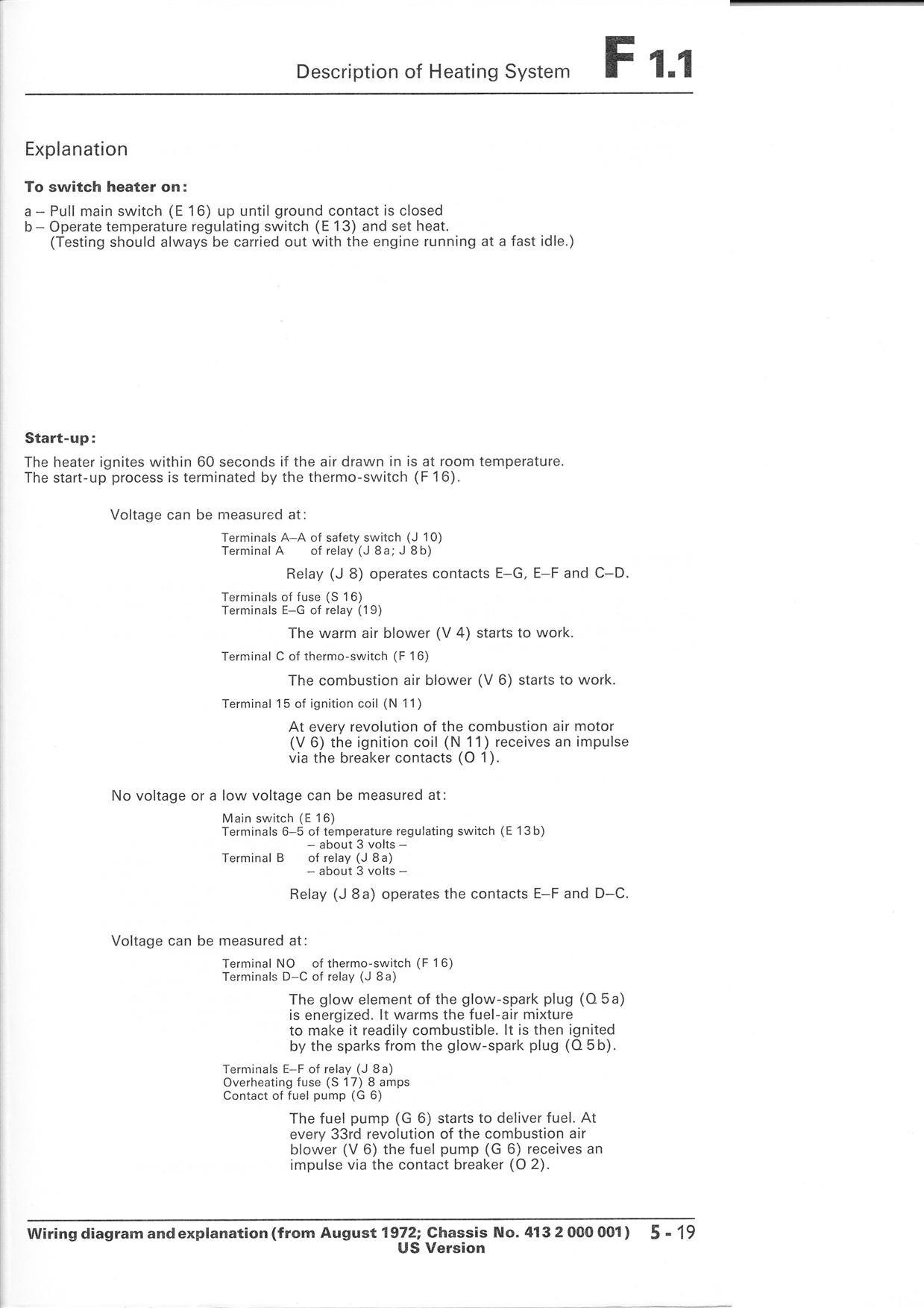

F1.1 5-11 5-12 5-15a 5-15b 5-15c 5-16a 5-16b 5-16c 5-17a 5-17b 5-17c 5-18a 5-18b 5-18c 5-19a 5-19b 5-19c

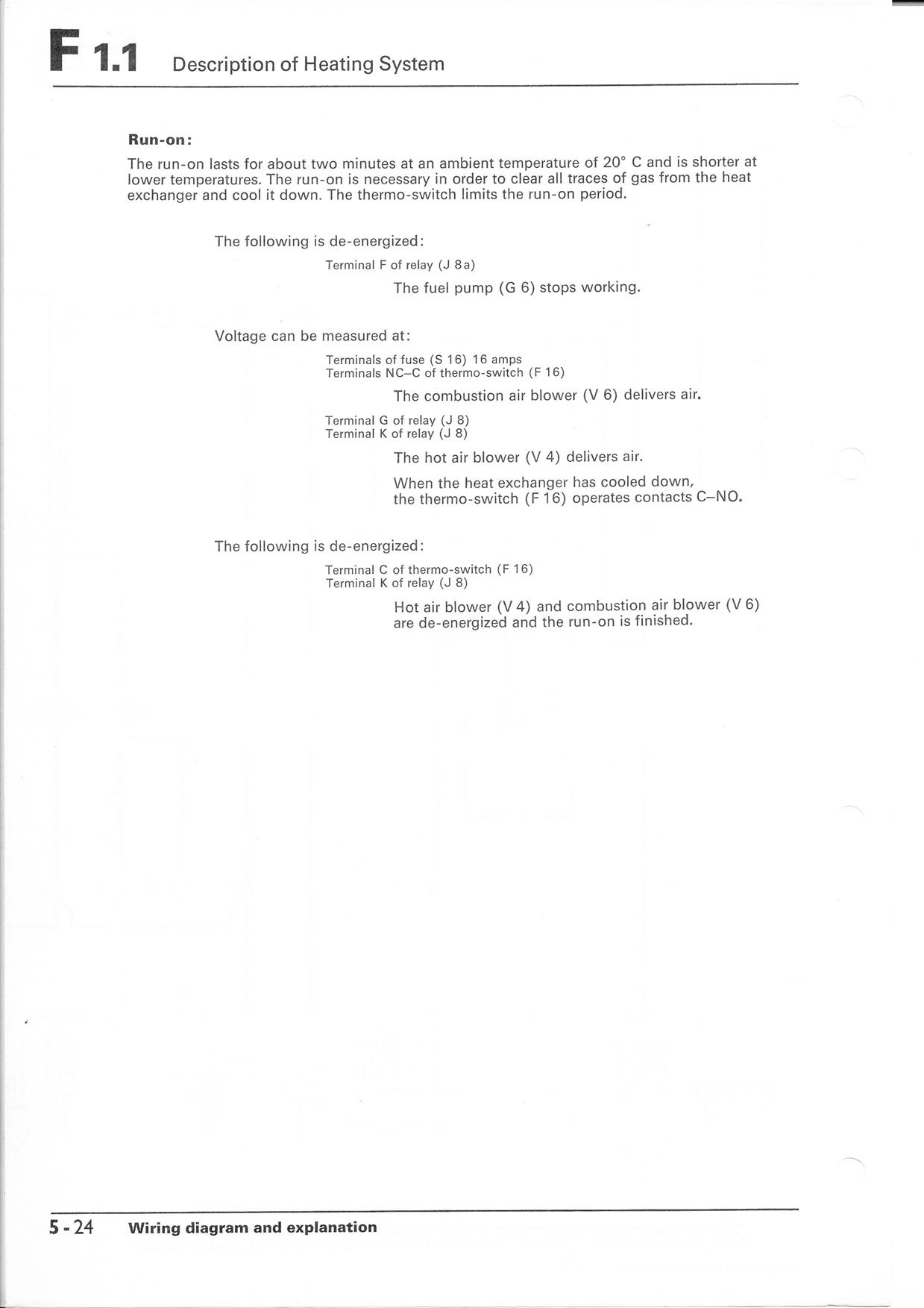

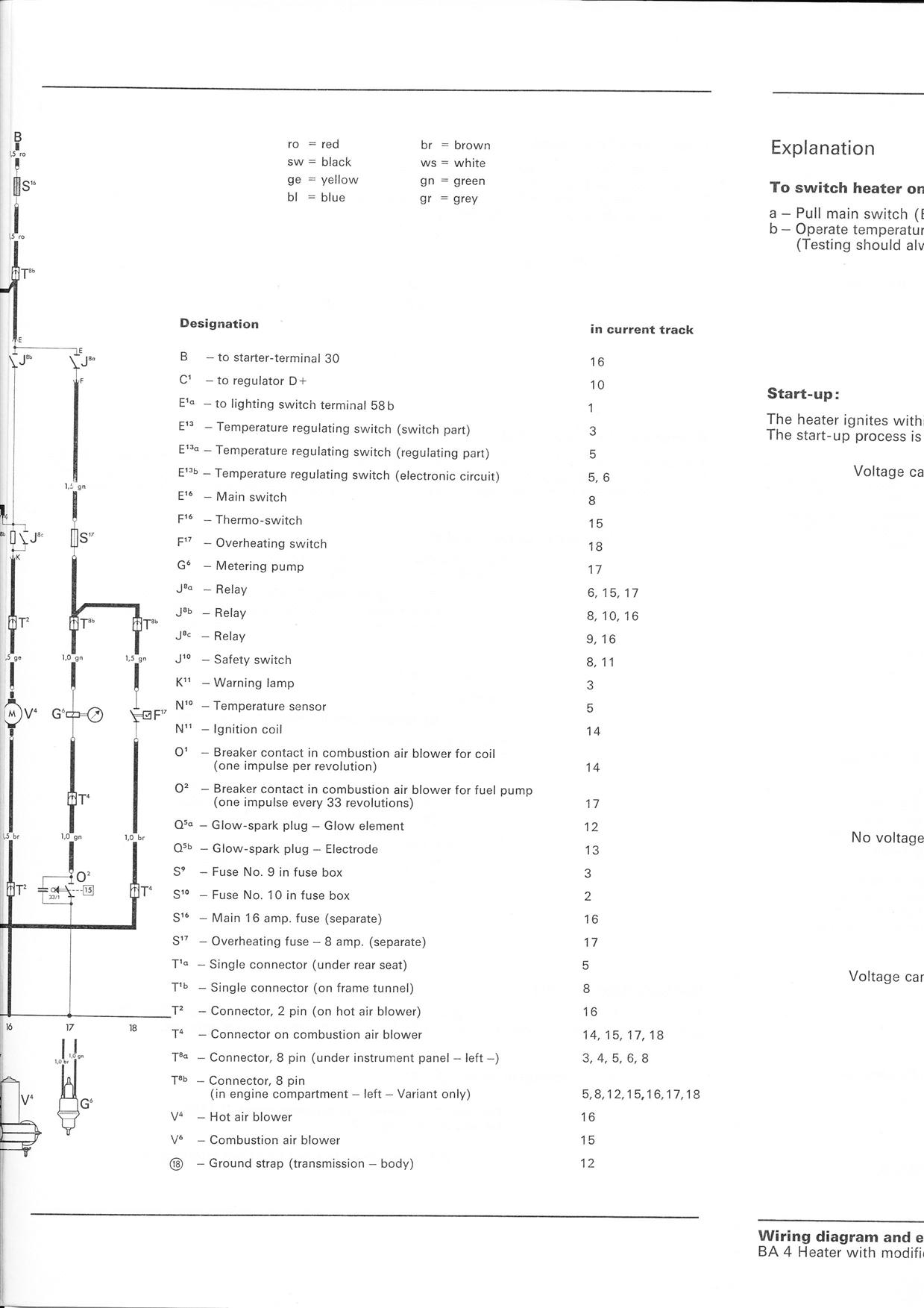

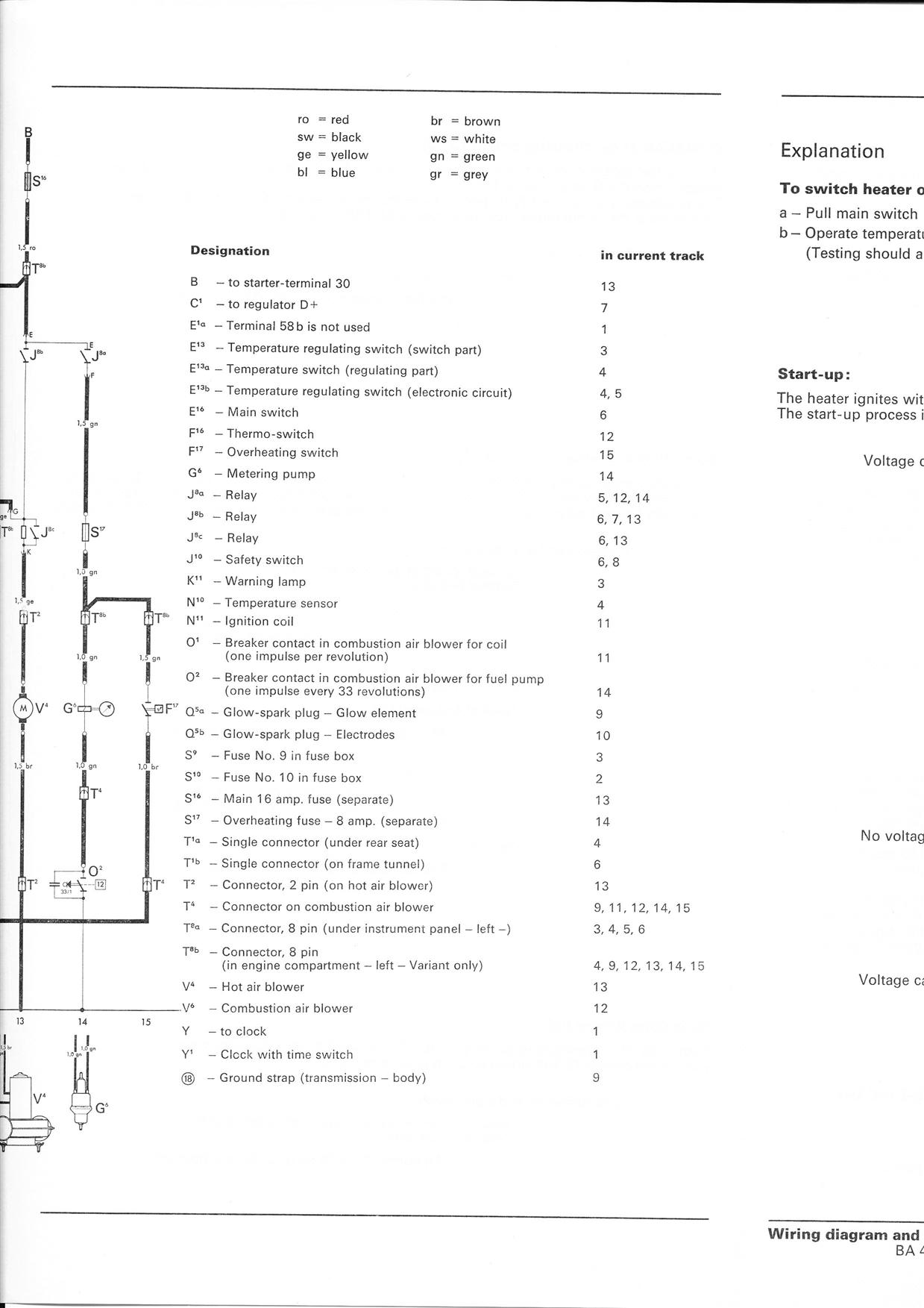

F1.1 5-20a 5-20b 5-20c 5-21a 5-21b 5-21c 5-22a 5-22b 5-22c 5-23a 5-23b 5-23c 5-24a 5-24b 5-24c
F1.2 1-1 1-2 1-3 1-4 1-5 1-6

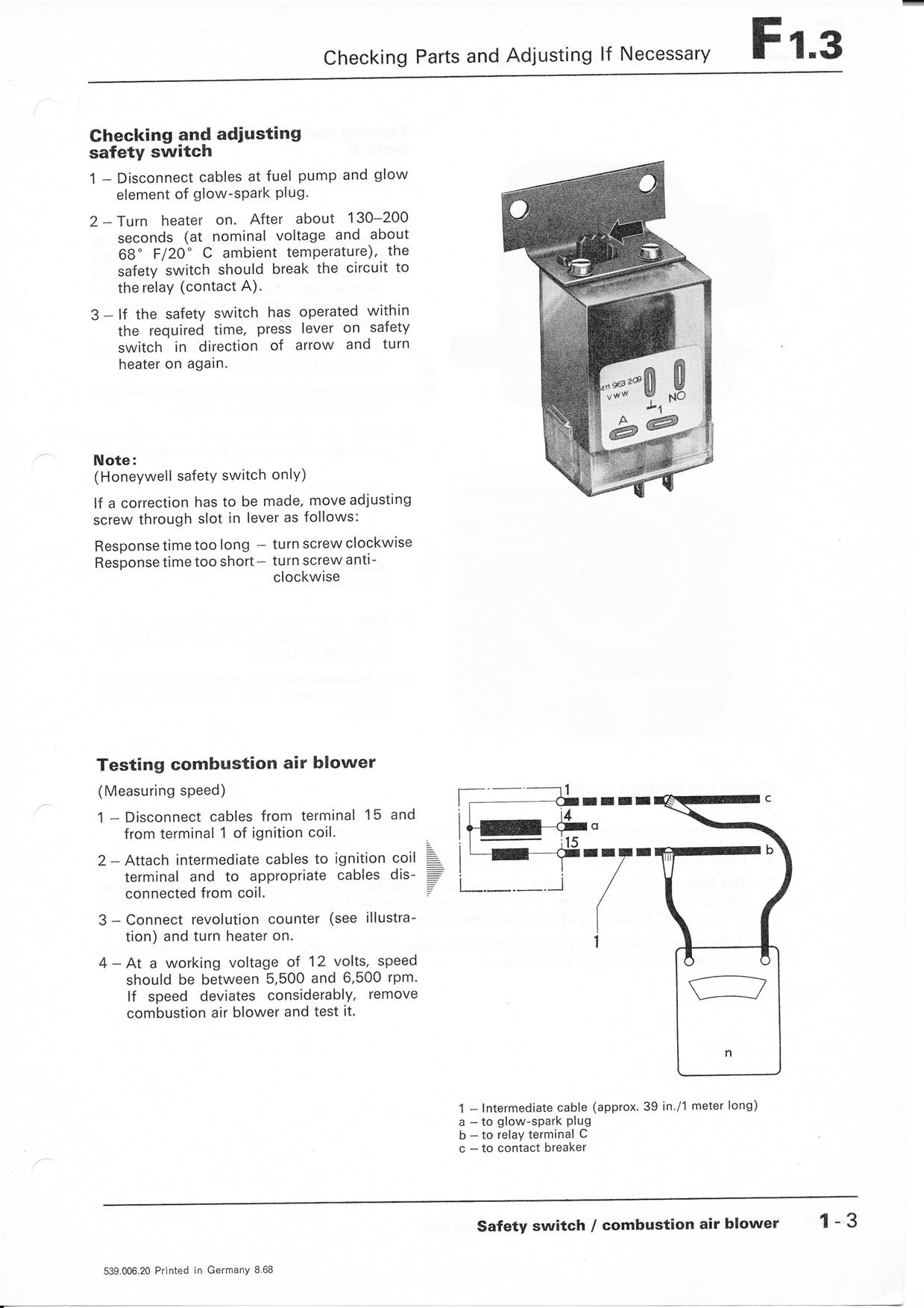

F1.3 1-1 1-2 1-3 1-4

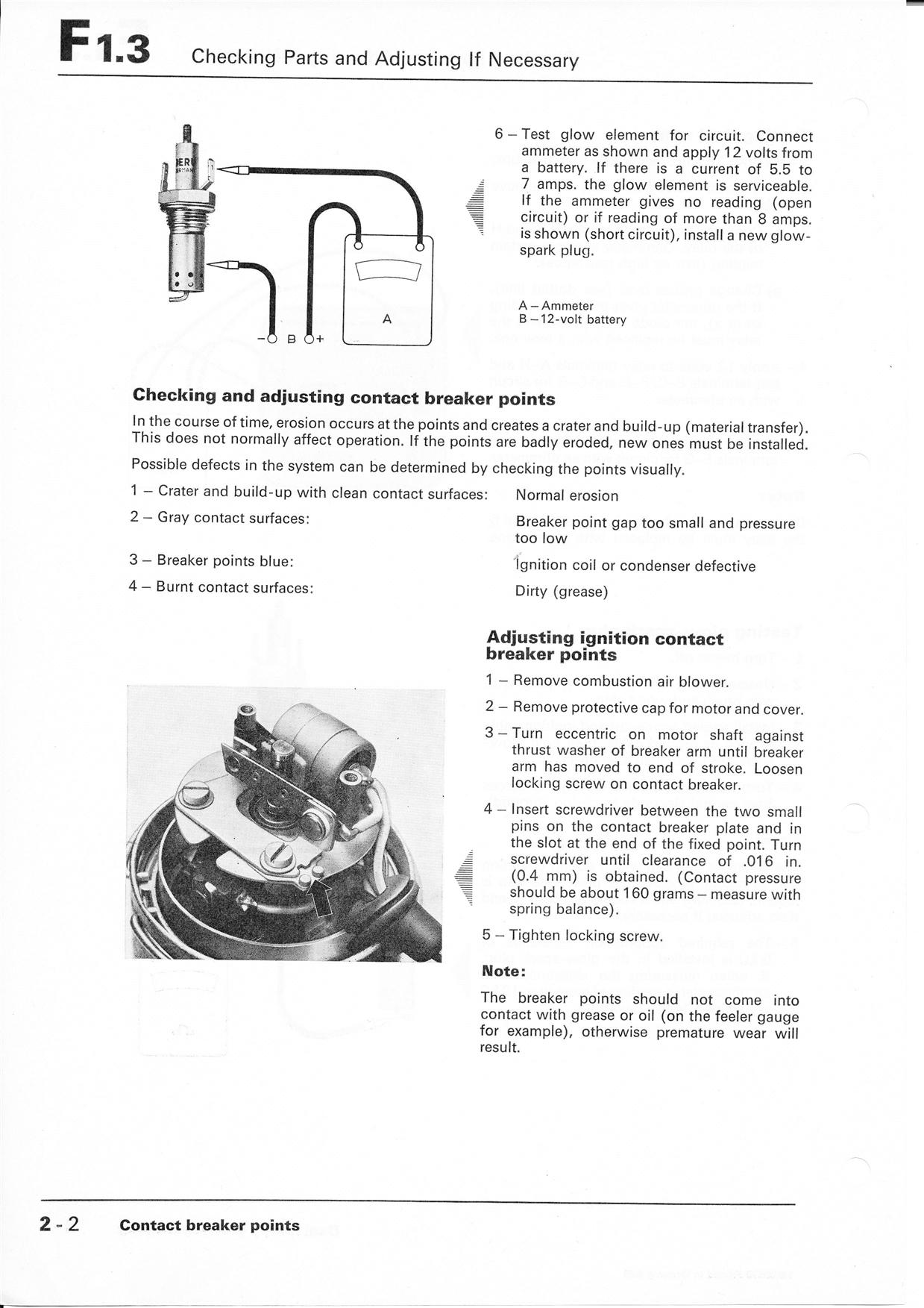

F1.3 2-1 2-2 2-3 2-4

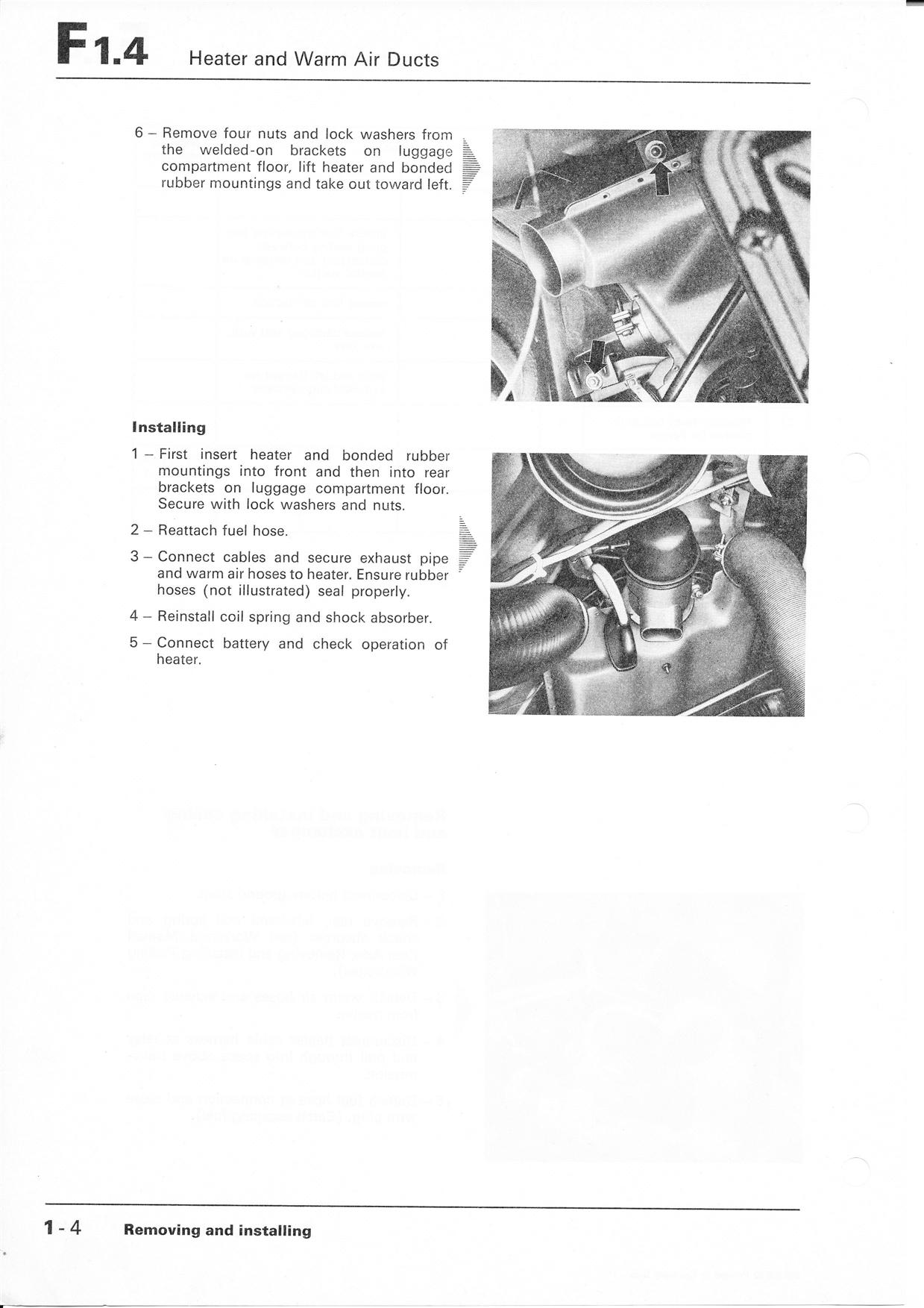

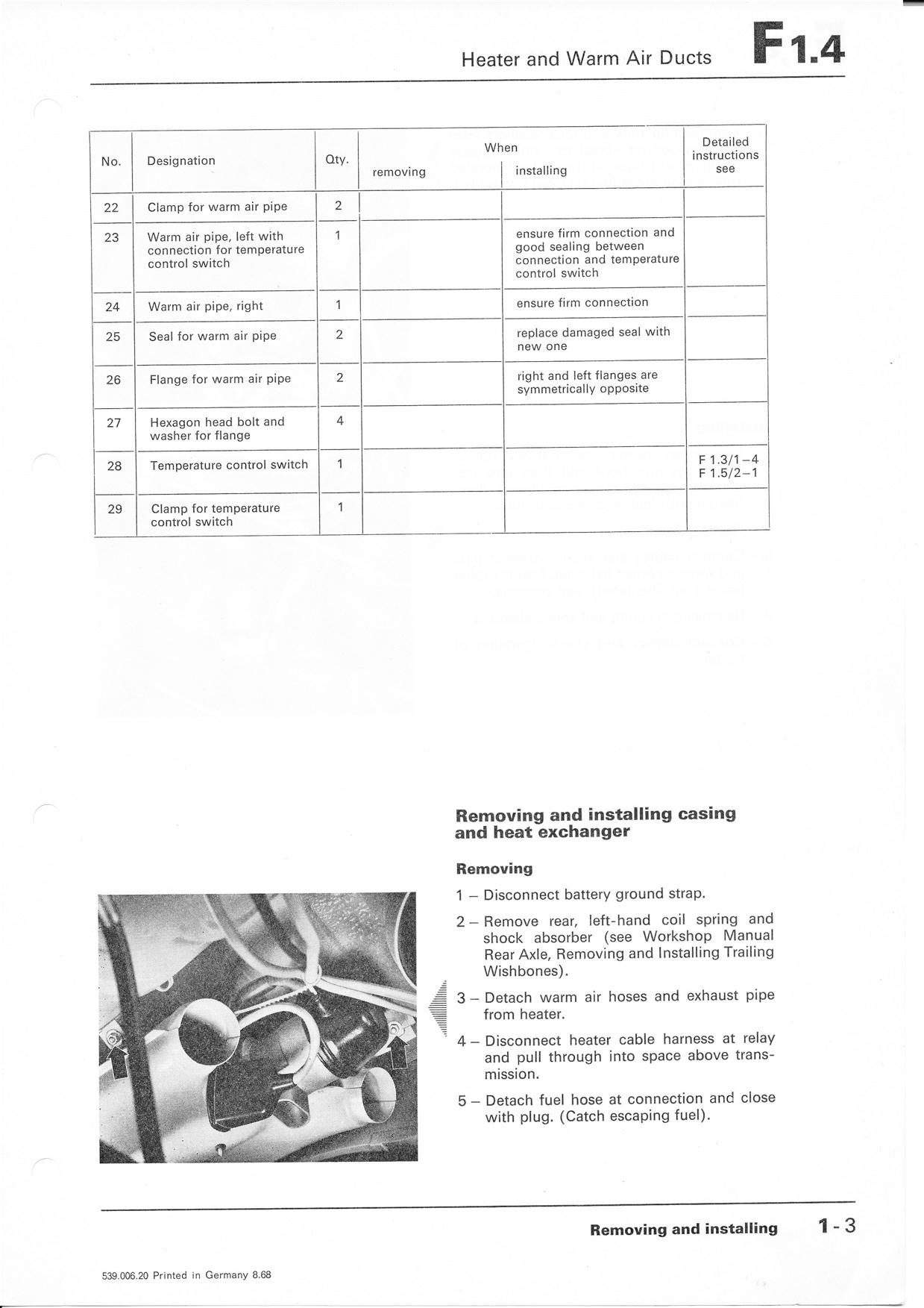

F1.4 1-1 1-2 1-3 1-4
F1.5 1-1 1-2 1-3

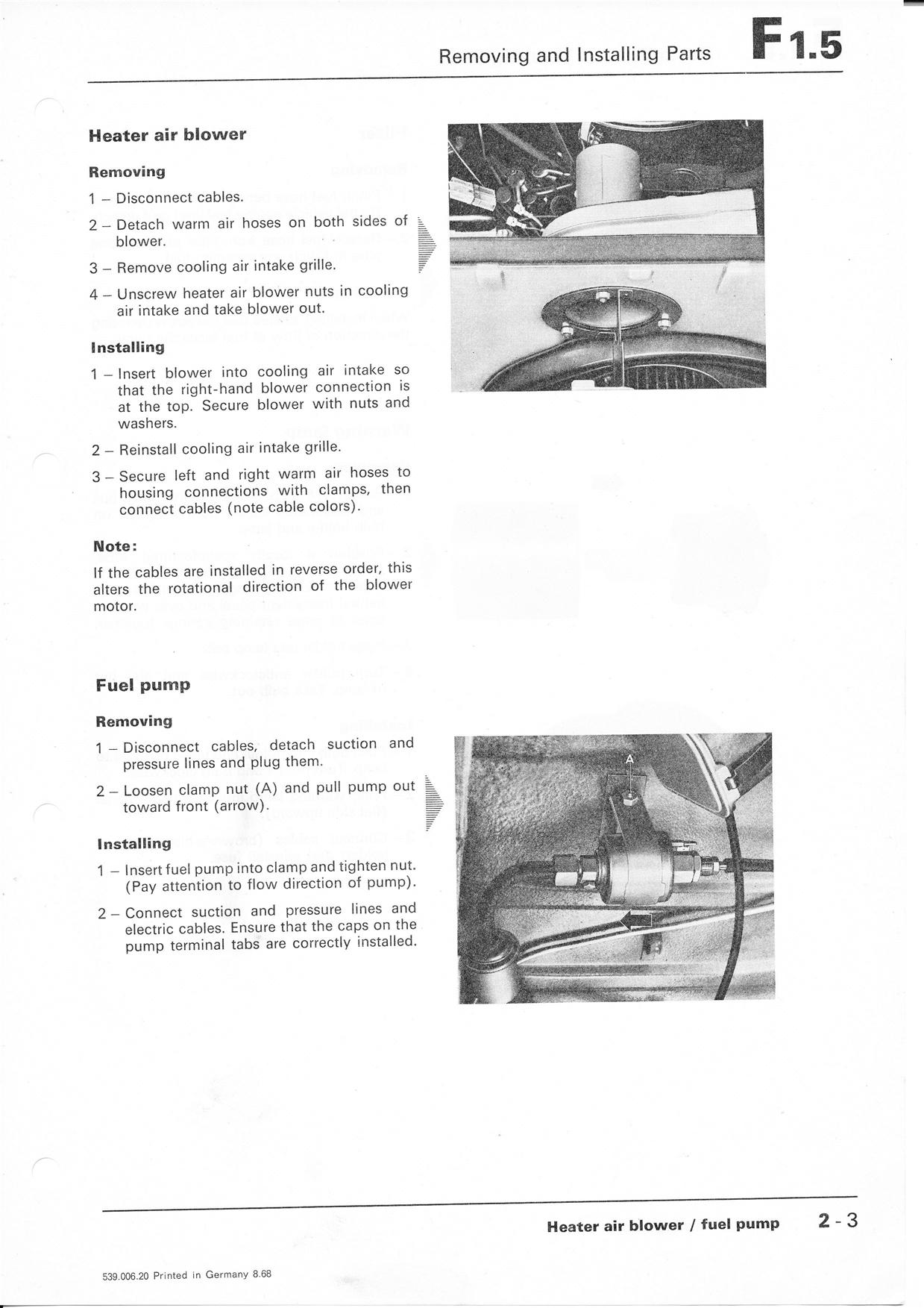

F1.5 2-1 2-2 2-3 2-4
F1.6 1-1 1-2 1-3 1-4 1-5

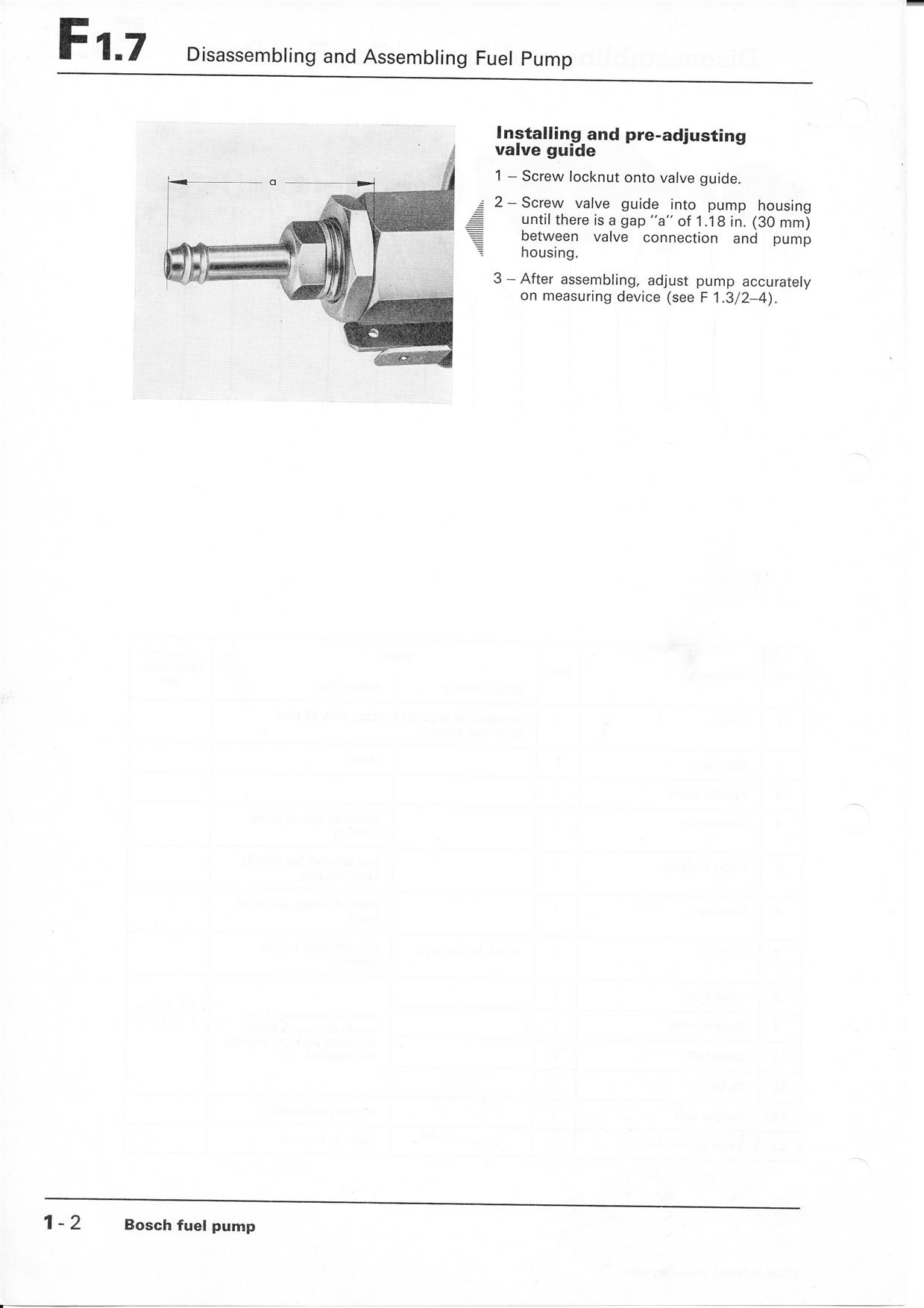

F1.7 1-1 1-2
F1.7 2-1 2-2

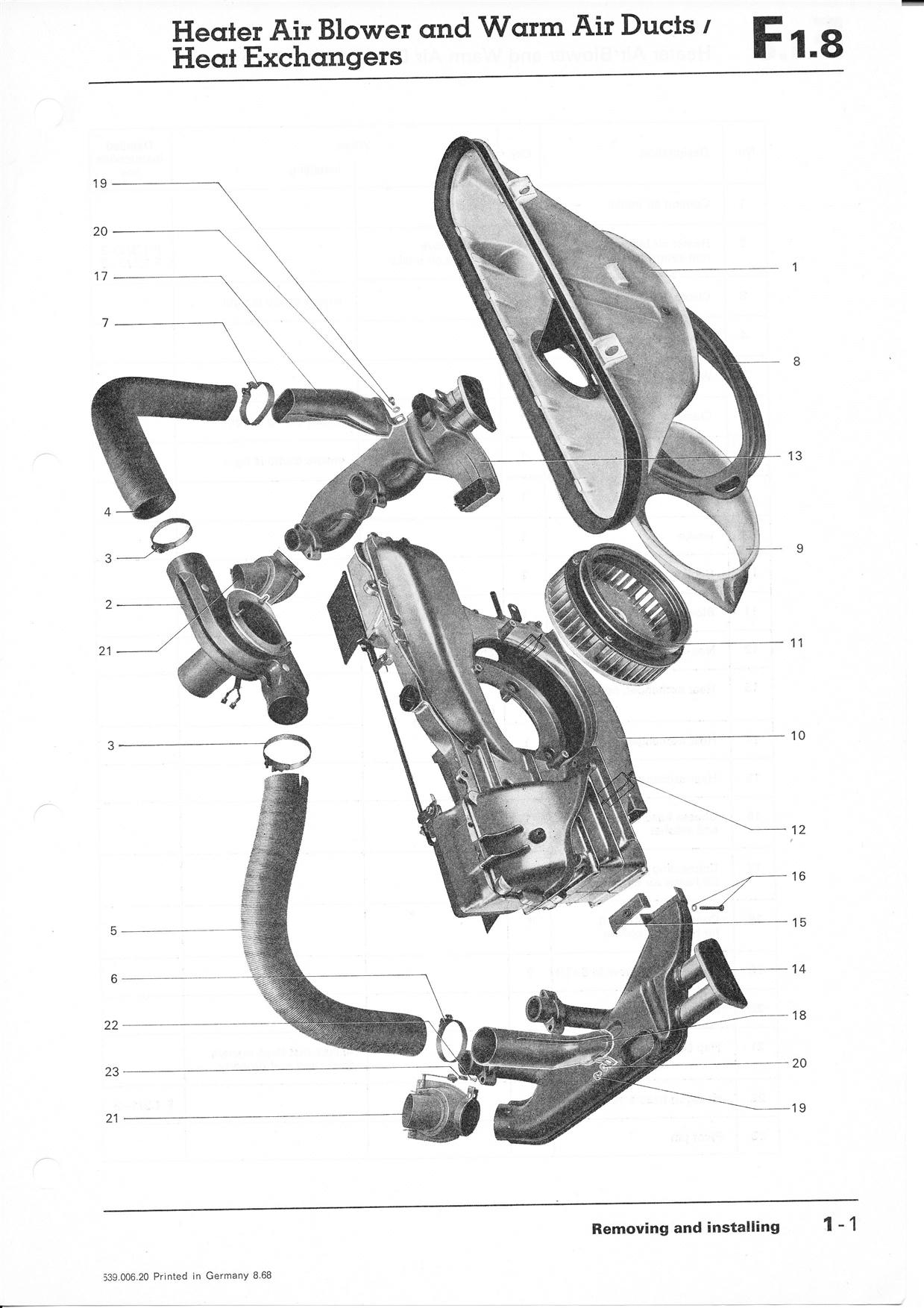

F1.8 1-1 1-2
F1.8 2-1 2-2
F1.9 1-1 1-2

F2 - Fresh Air Heating, Type 3 - Section F2 PDF (30.5 MB)
F2.1 1-1 1-2

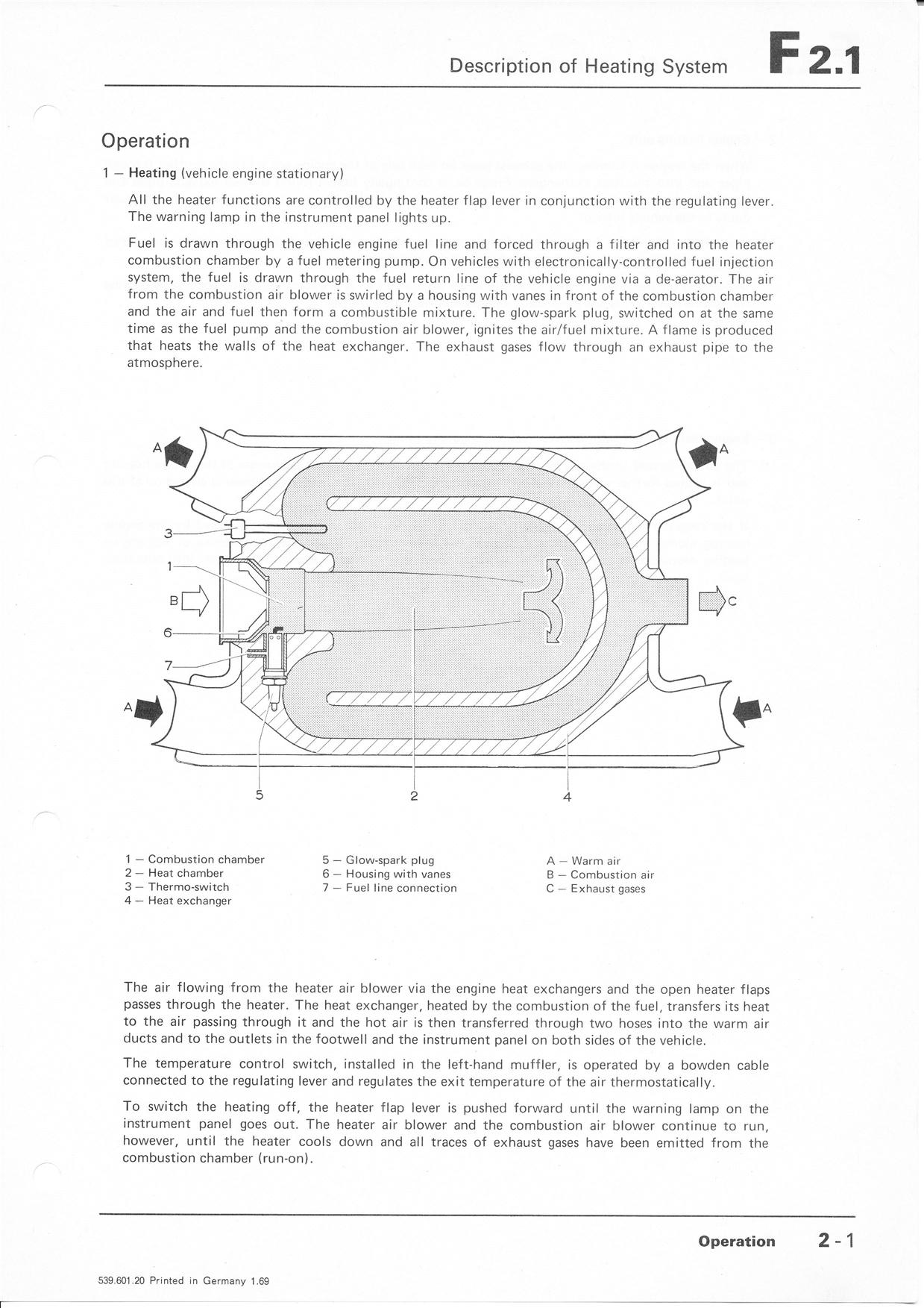

F2.1 2-1 2-2
F2.1 3-1
F2.1 4-1 4-2

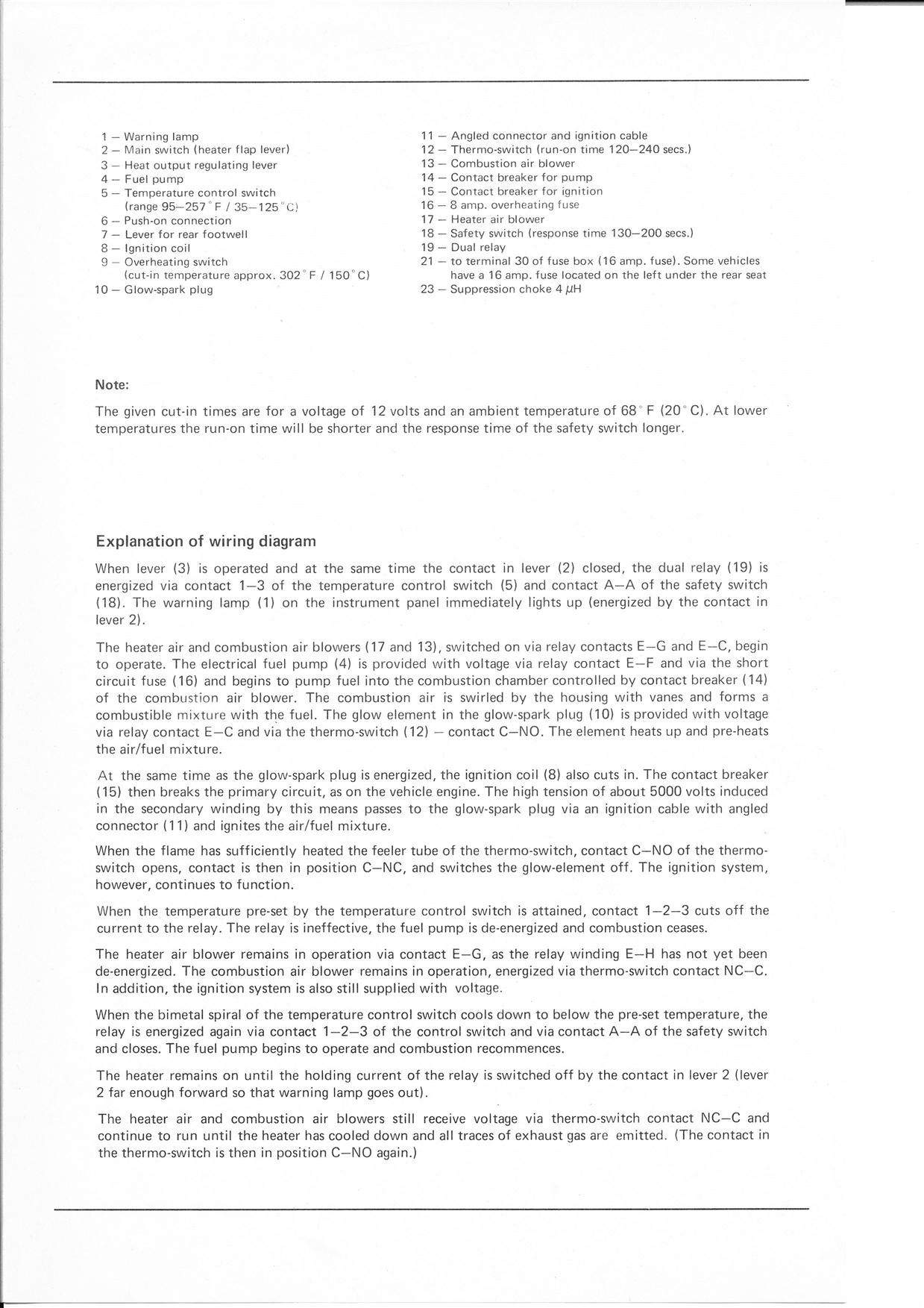

F2.1 5-1a 5-1b
F2.1 5-2
F2.2 1-1 1-2 1-3 1-4 1-5 1-6

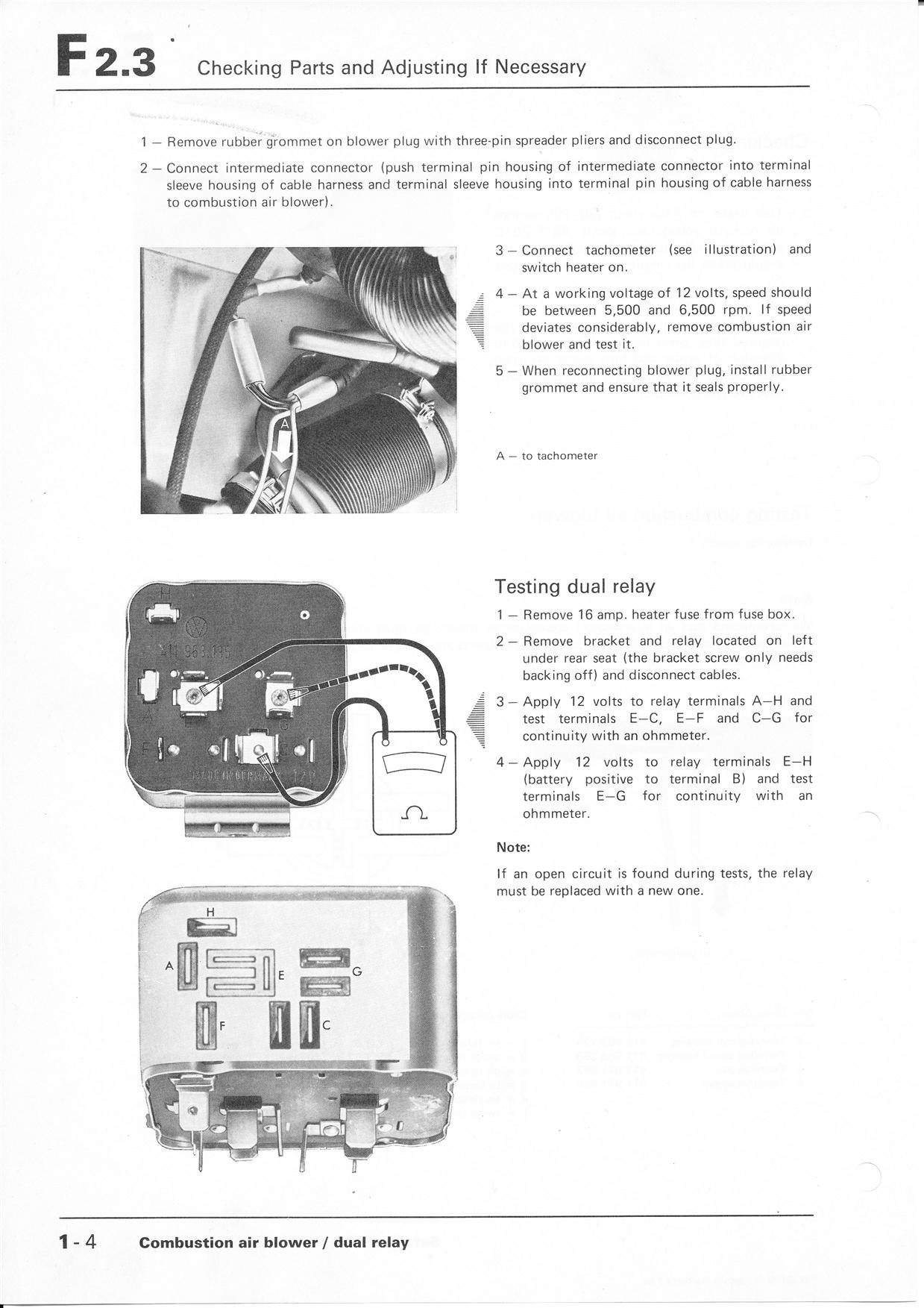

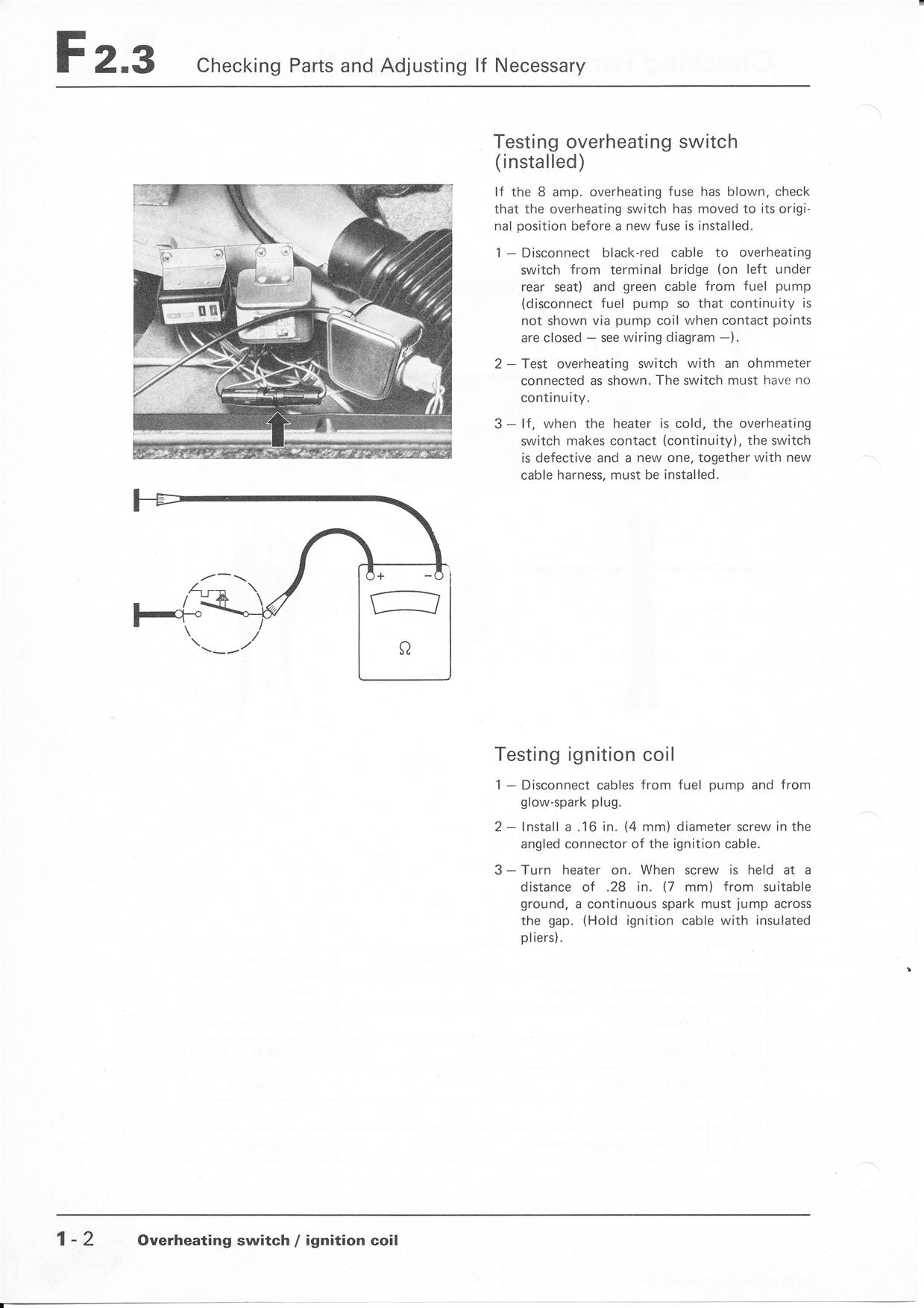

F2.3 1-1 1-2 1-3 1-4
F2.4 1-1 1-2 1-3 1-4 1-5
F2.5 2-1 2-2 2-3 2-4
F2.8 1-1 1-2
F2.8 2-1 2-2
F2.9 1-1

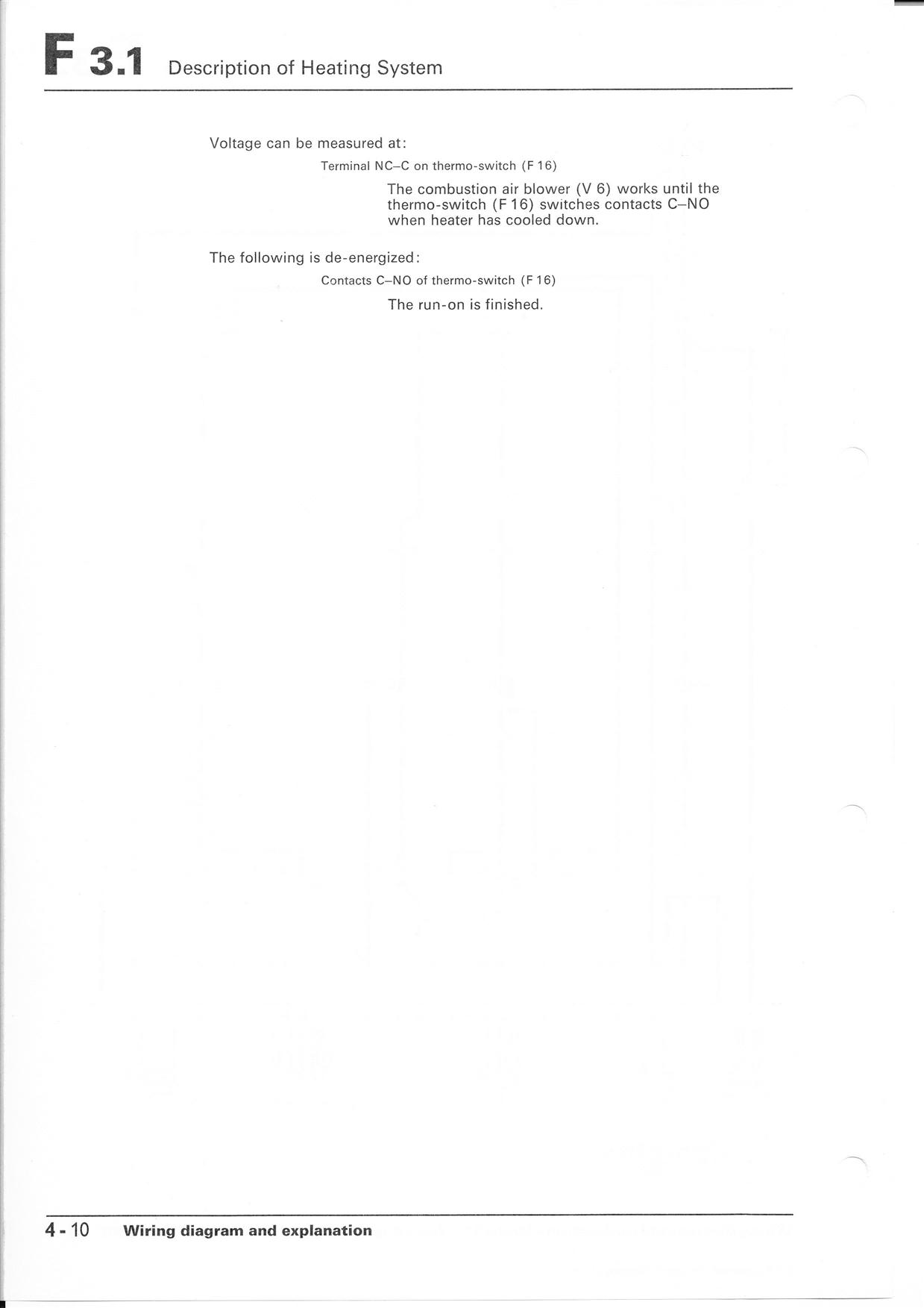

F3 - Fresh Air Heating, Type 2/Bus and 181/Thing, Eberspacher Heater - Section F3 PDF (63.7 MB)

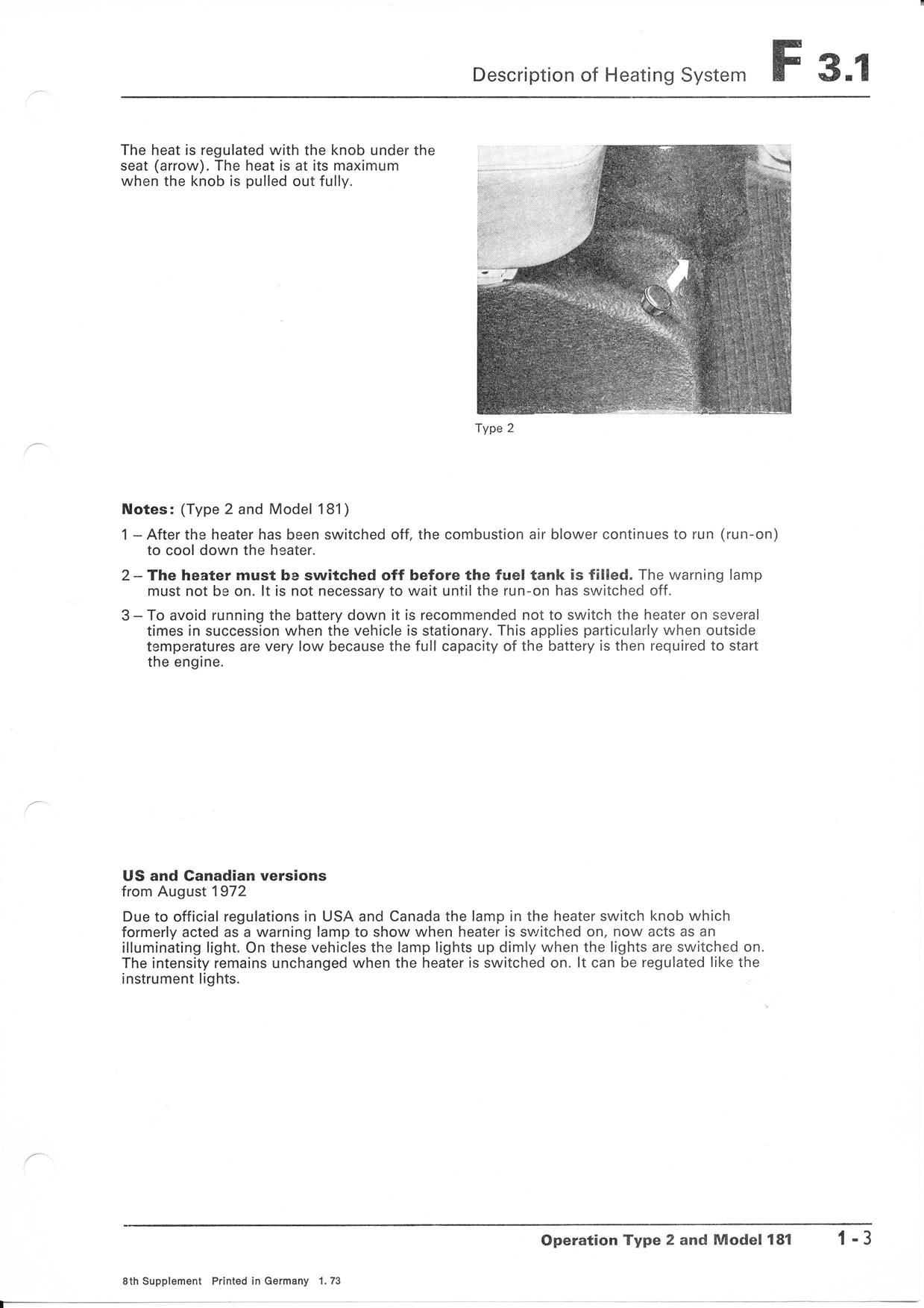

F3.1 1-1 1-2 1-3

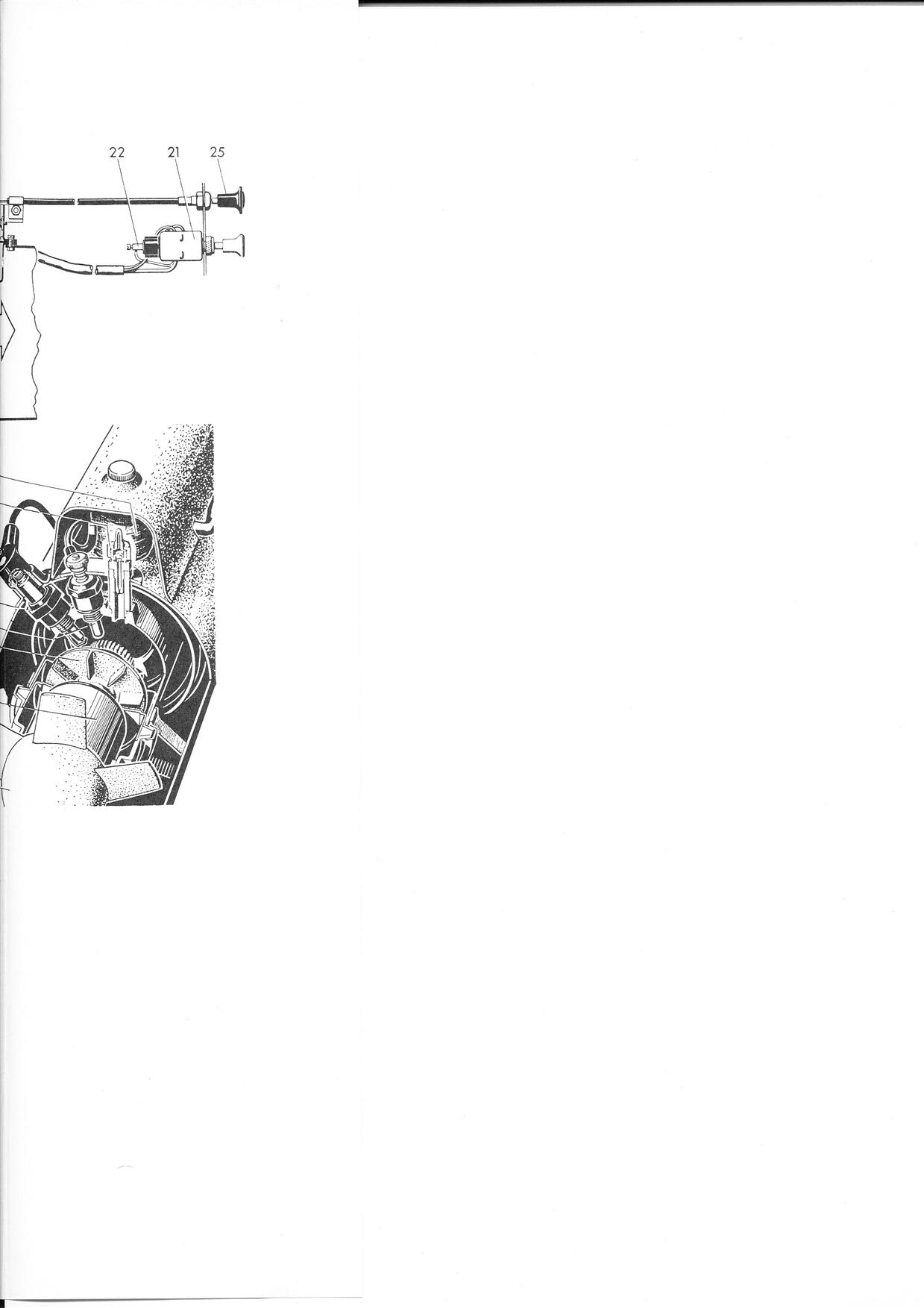

F3.1 2-1a 2-1b 2-1c

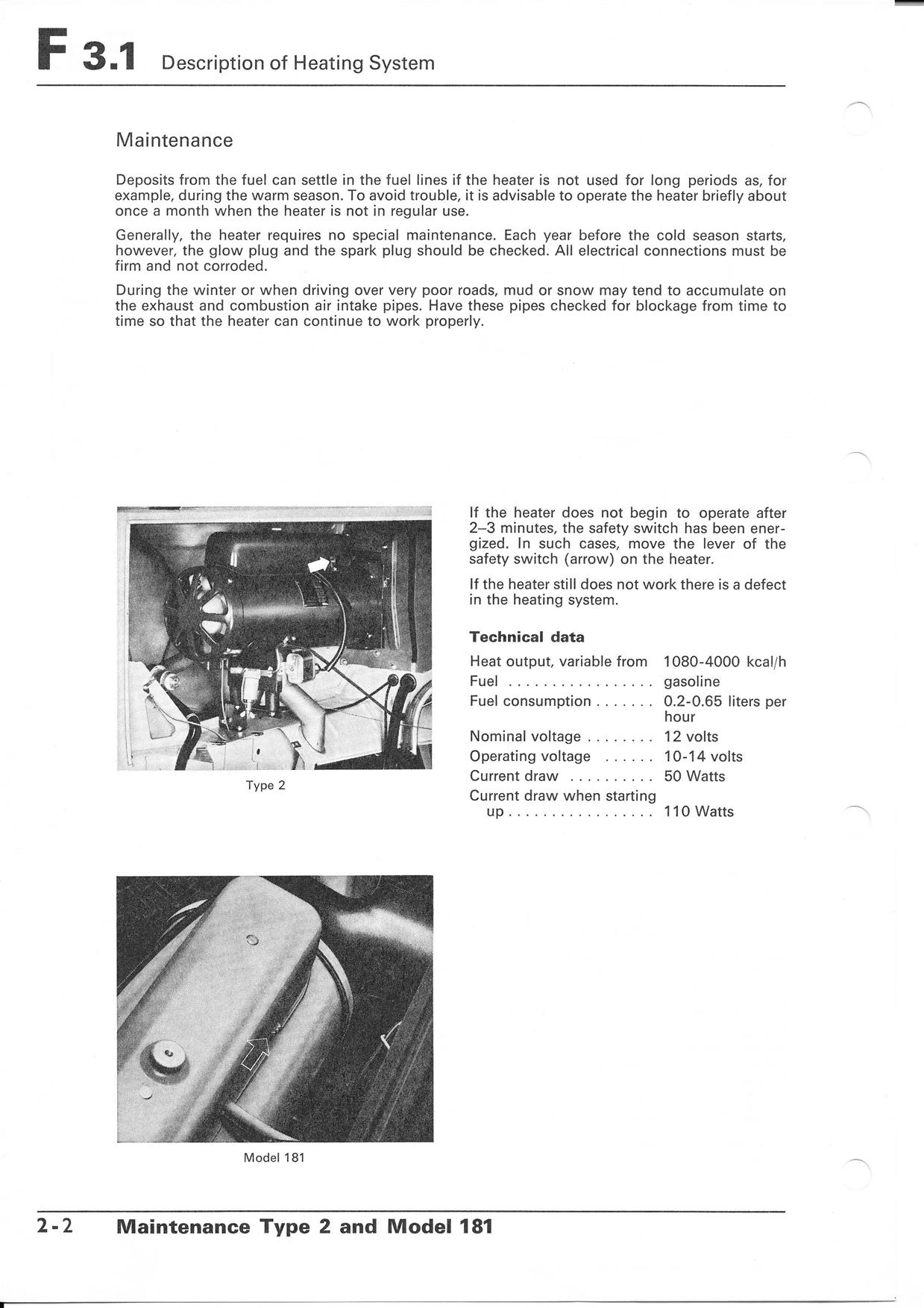

F3.1 2-2

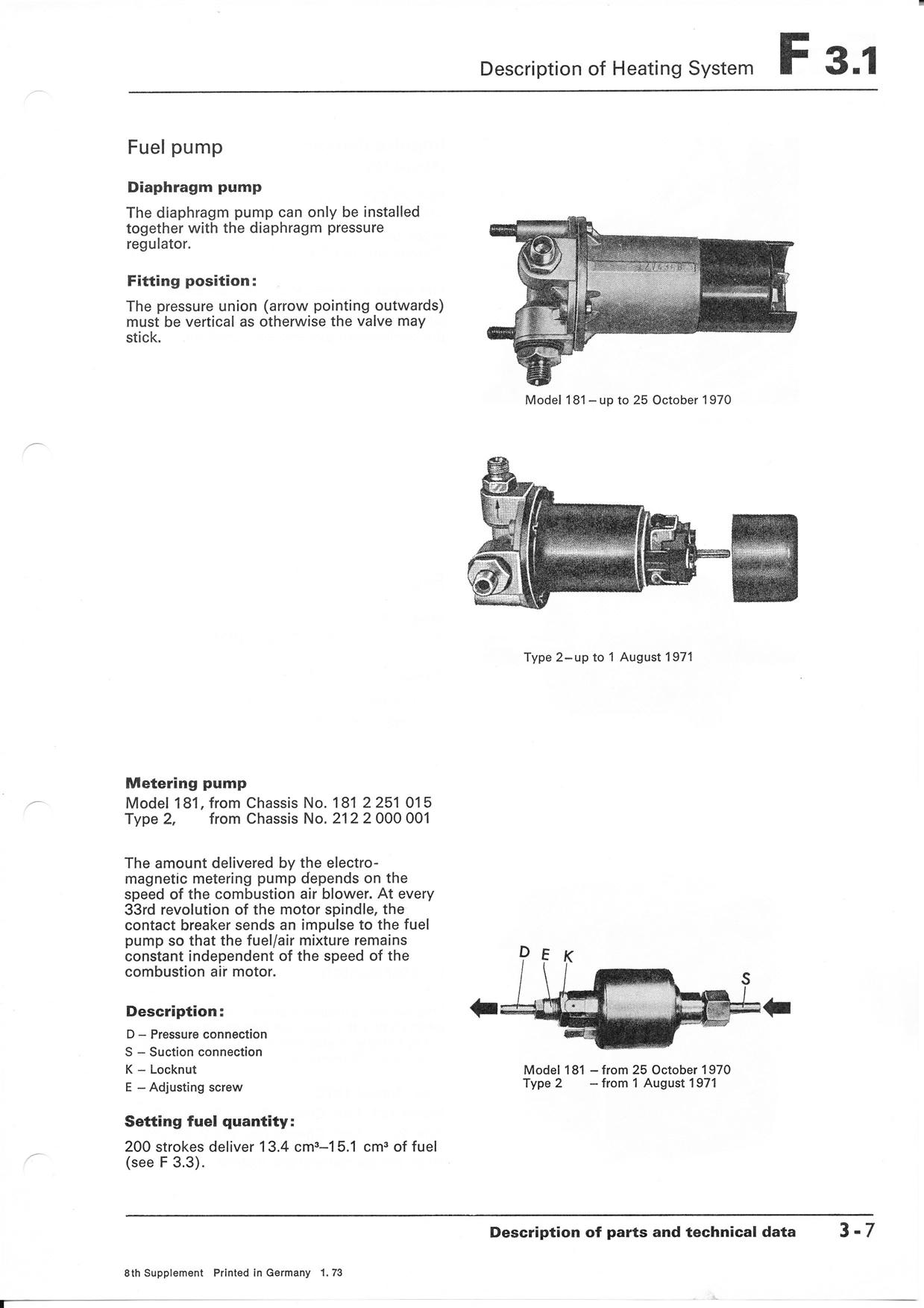

F3.1 3-1 3-2 3-3 3-4 3-5 3-6 3-7 3-8 3-9

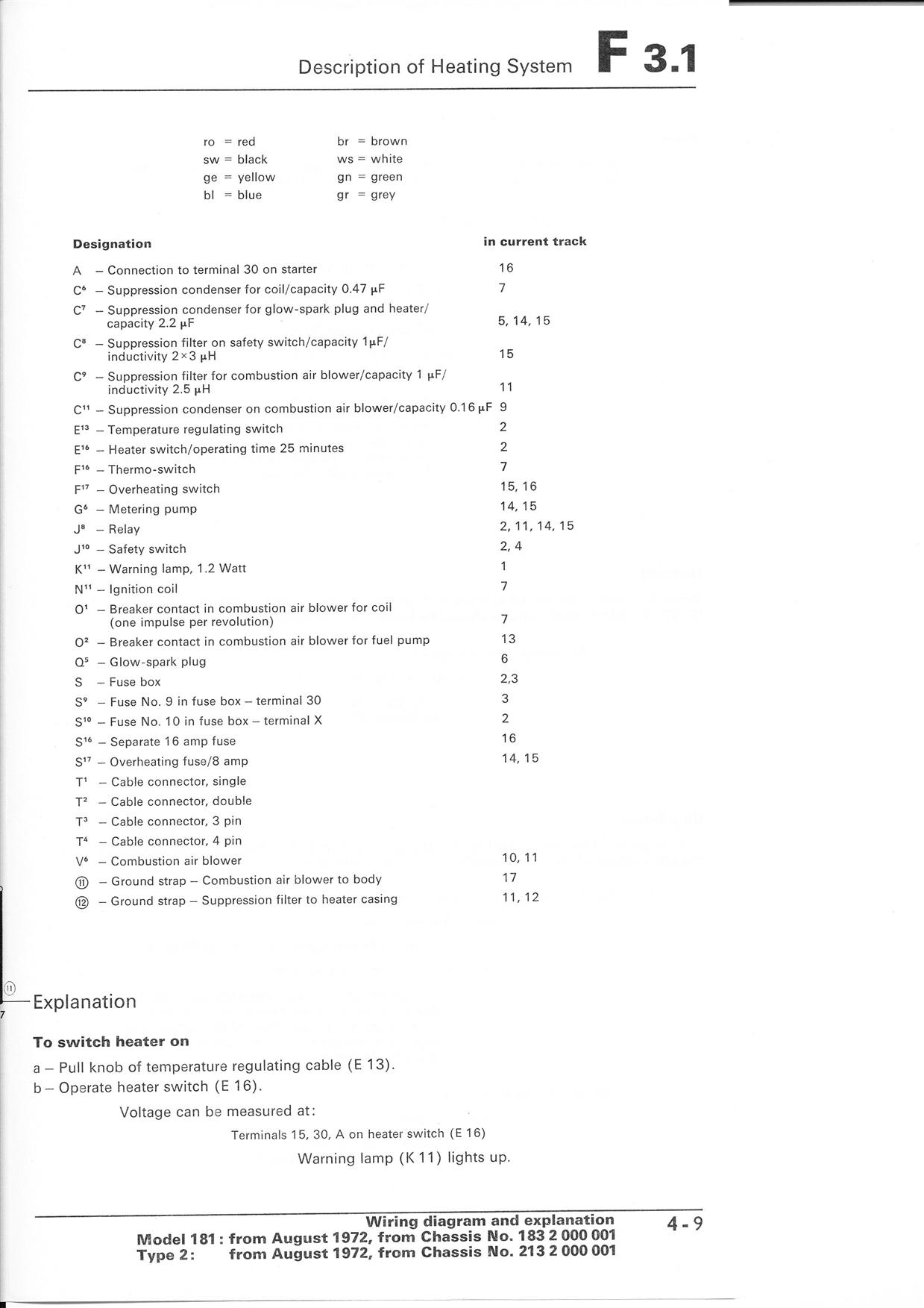

F3.1 4-9a 4-9b 4-9c
F3.1 4-10a 4-10b 4-10c
F3.1 4-11a 4-11b 4-11c

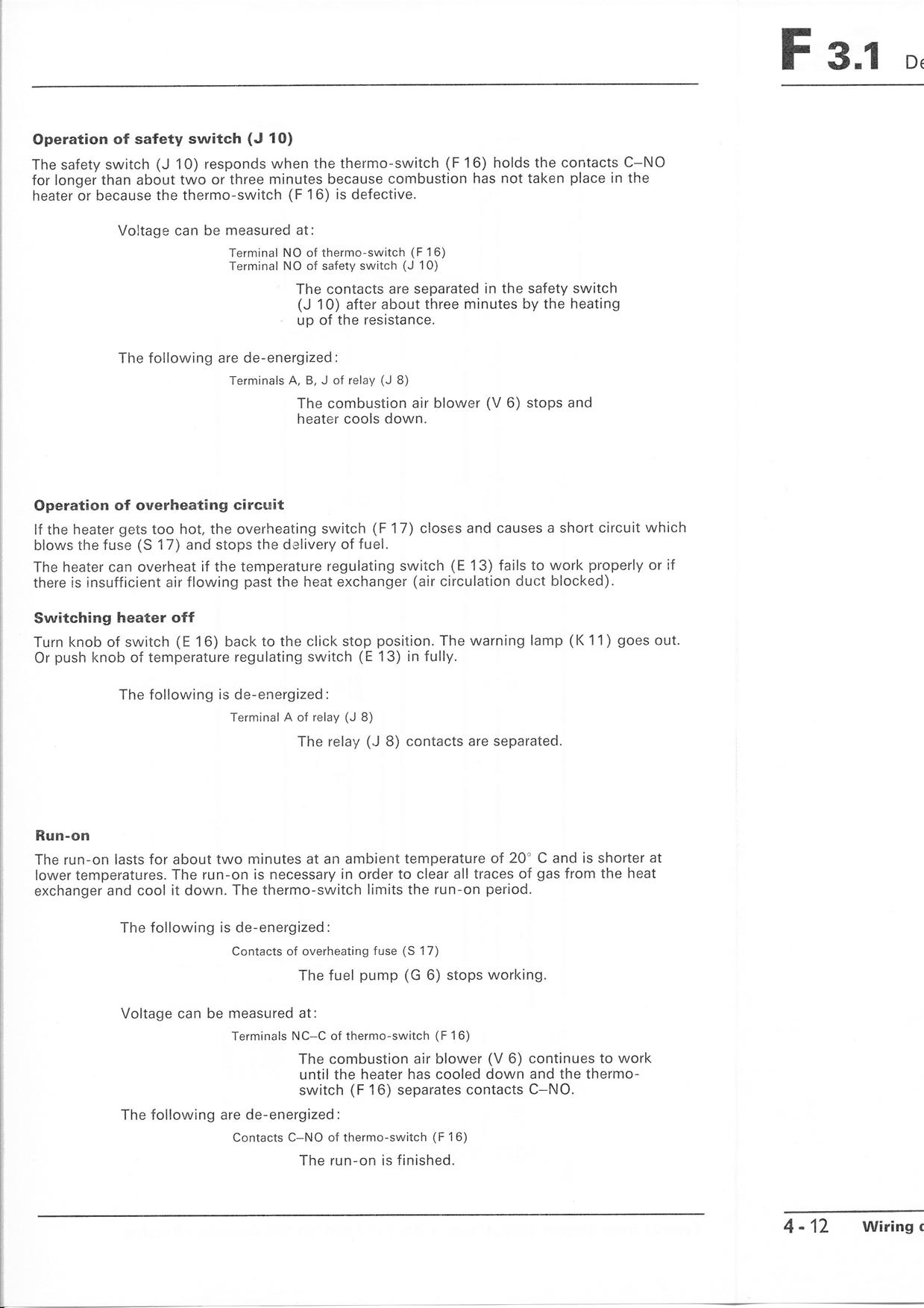

F3.1 4-12a 4-12b 4-12c

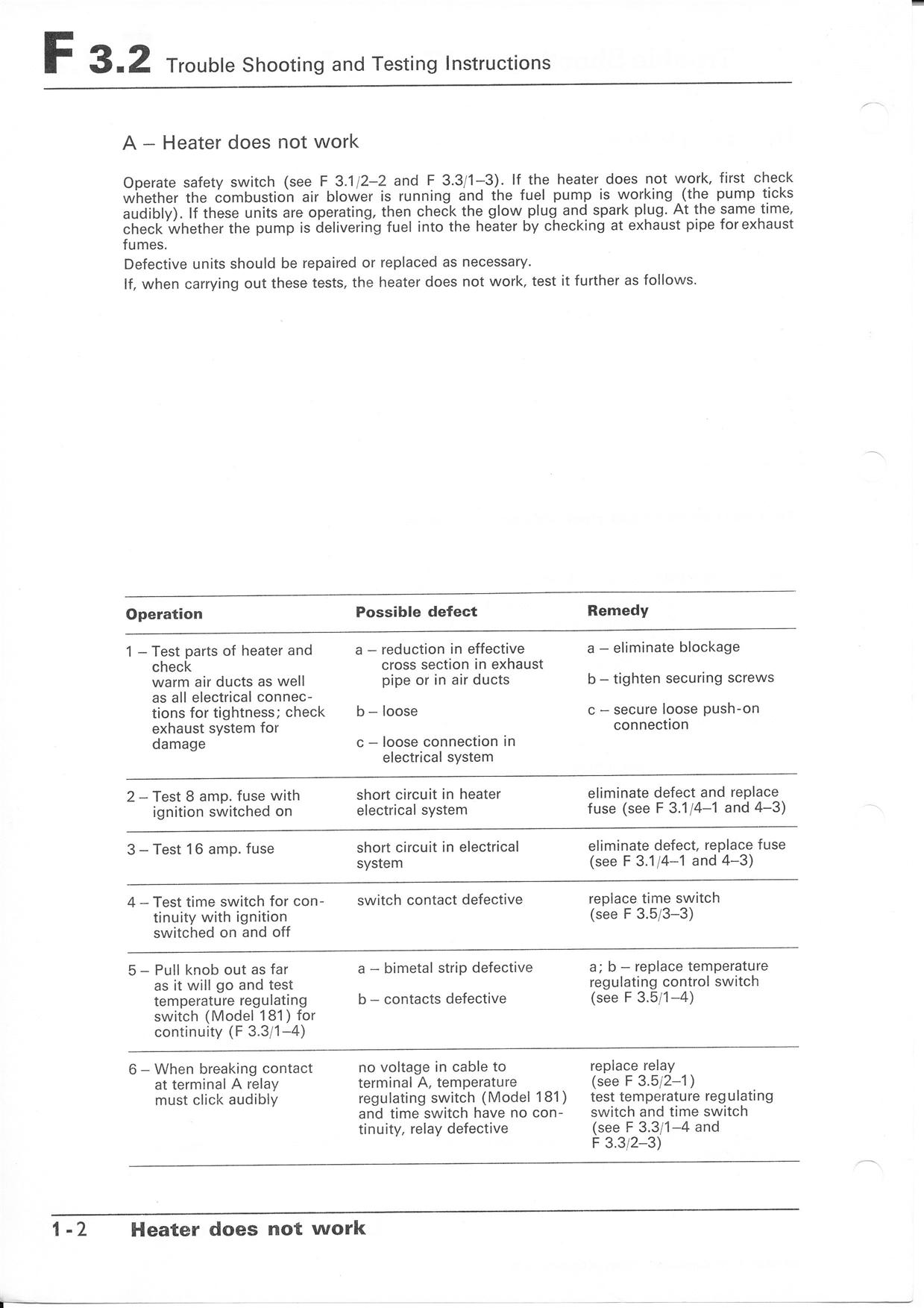

F3.2 1-1 1-2 1-3 1-4
F3.2 2-1 2-2
F3.3 1-1 1-2 1-3 1-4 1-5 1-6

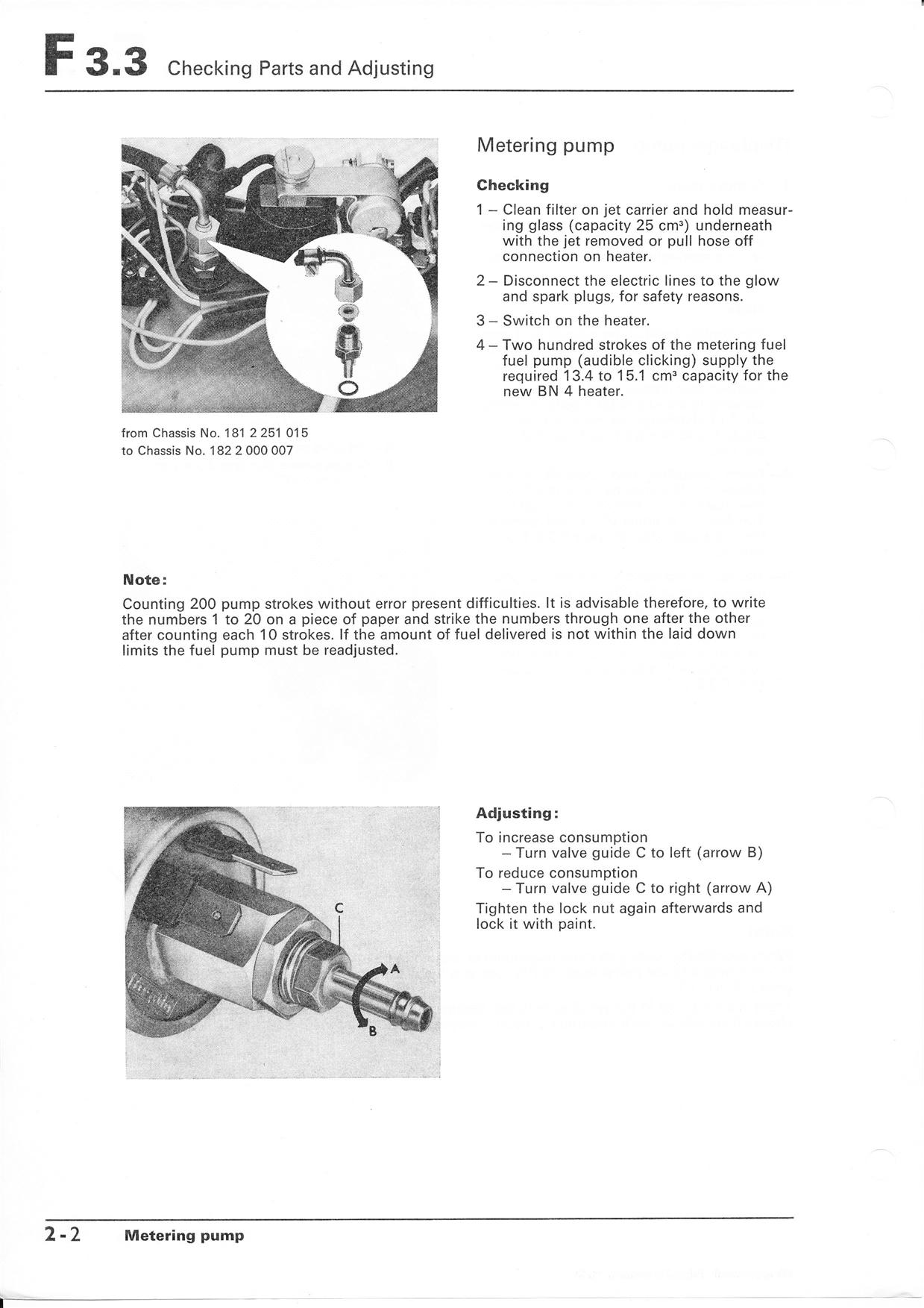

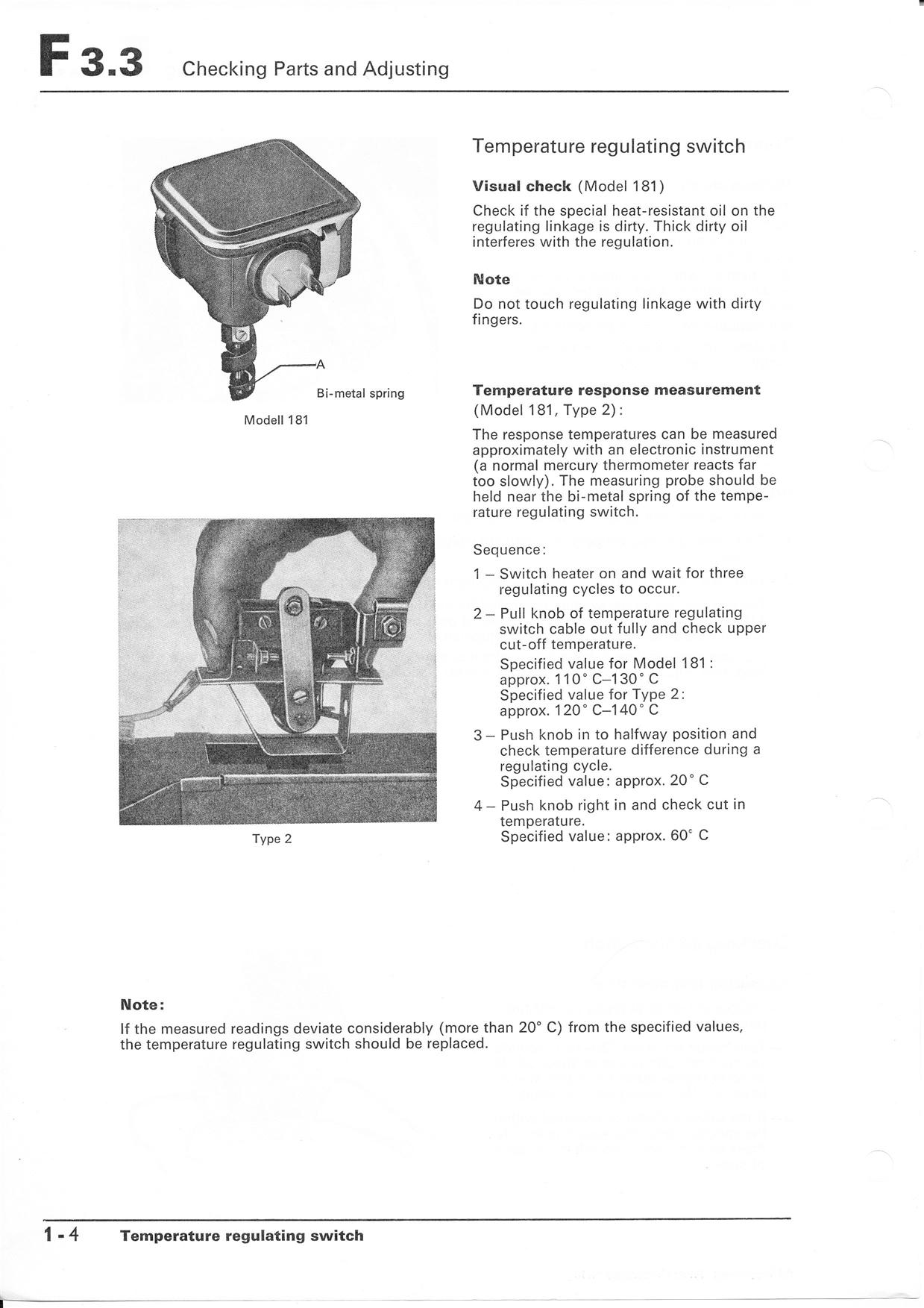

F3.3 2-1 2-2 2-3

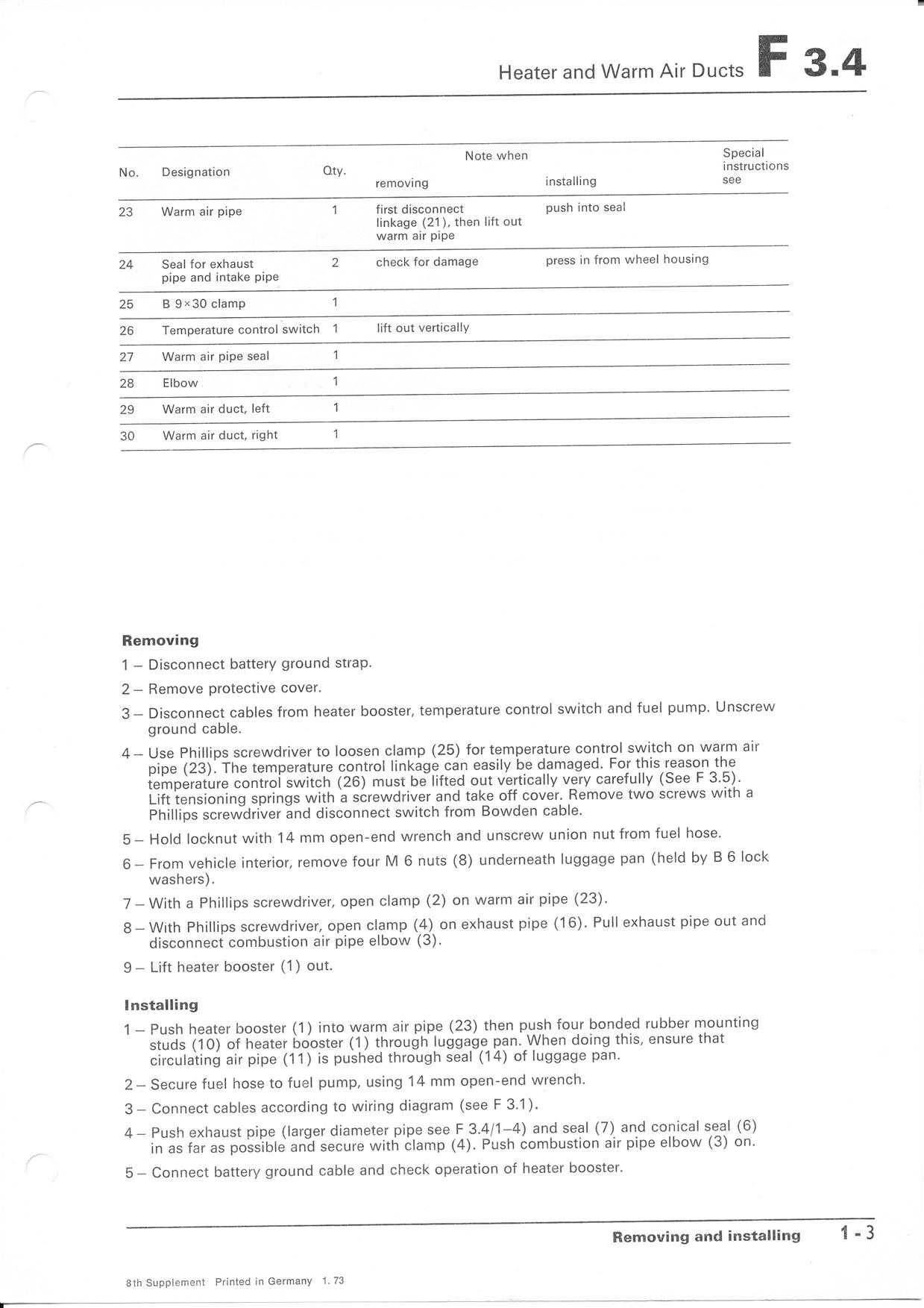

F3.4 1-1 1-2 1-3 1-4
F3.4 2-1 2-2 2-3

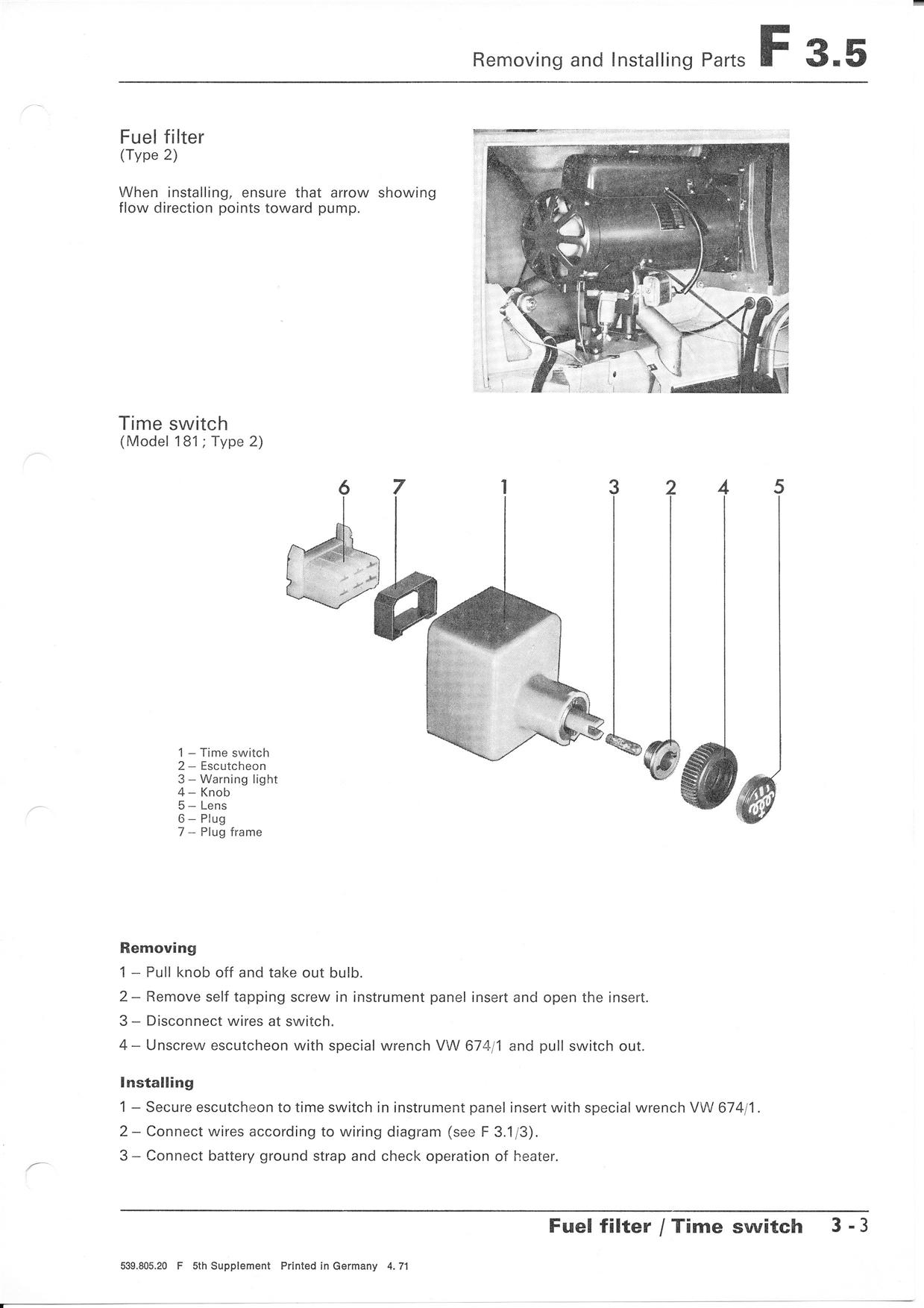

F3.5 1-1 1-2 1-3 1-4
F3.5 2-1 2-2 2-3 2-4
F3.5 3-1 3-2 3-3
F3.6 1-1 1-2
F3.7 1-1 1-2
F3.8 1-1 1-2
F3.8 2-1 2-2

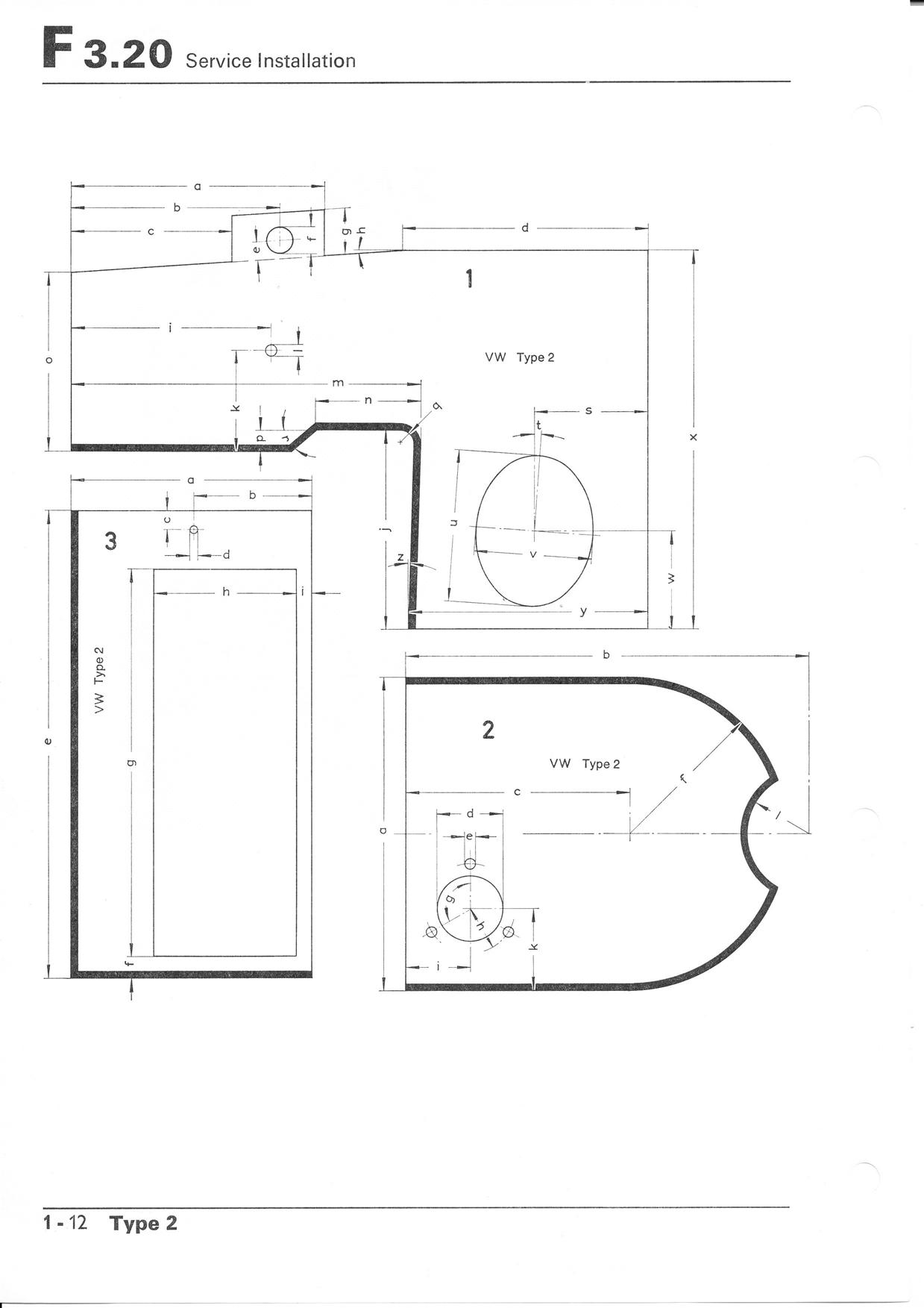

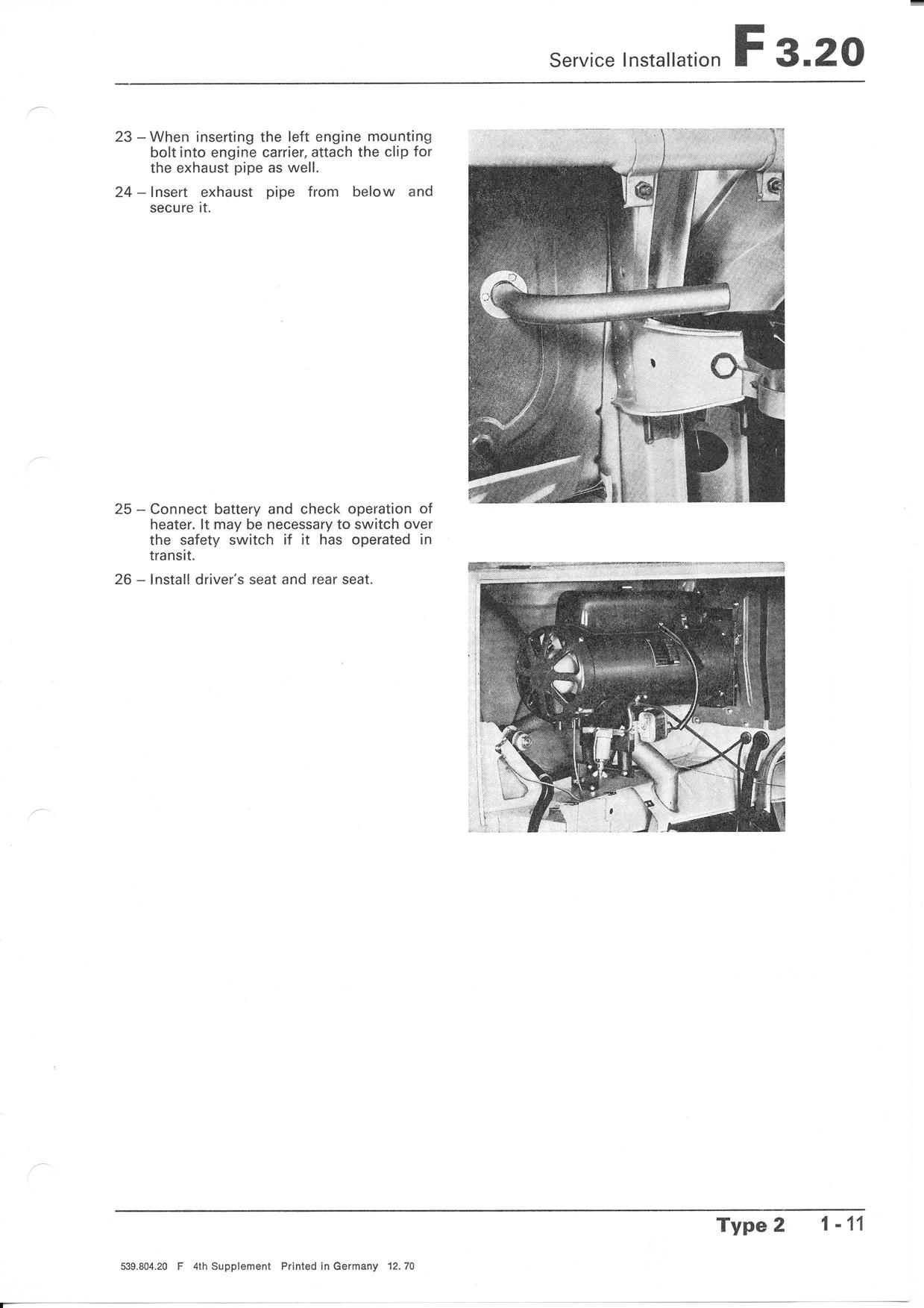

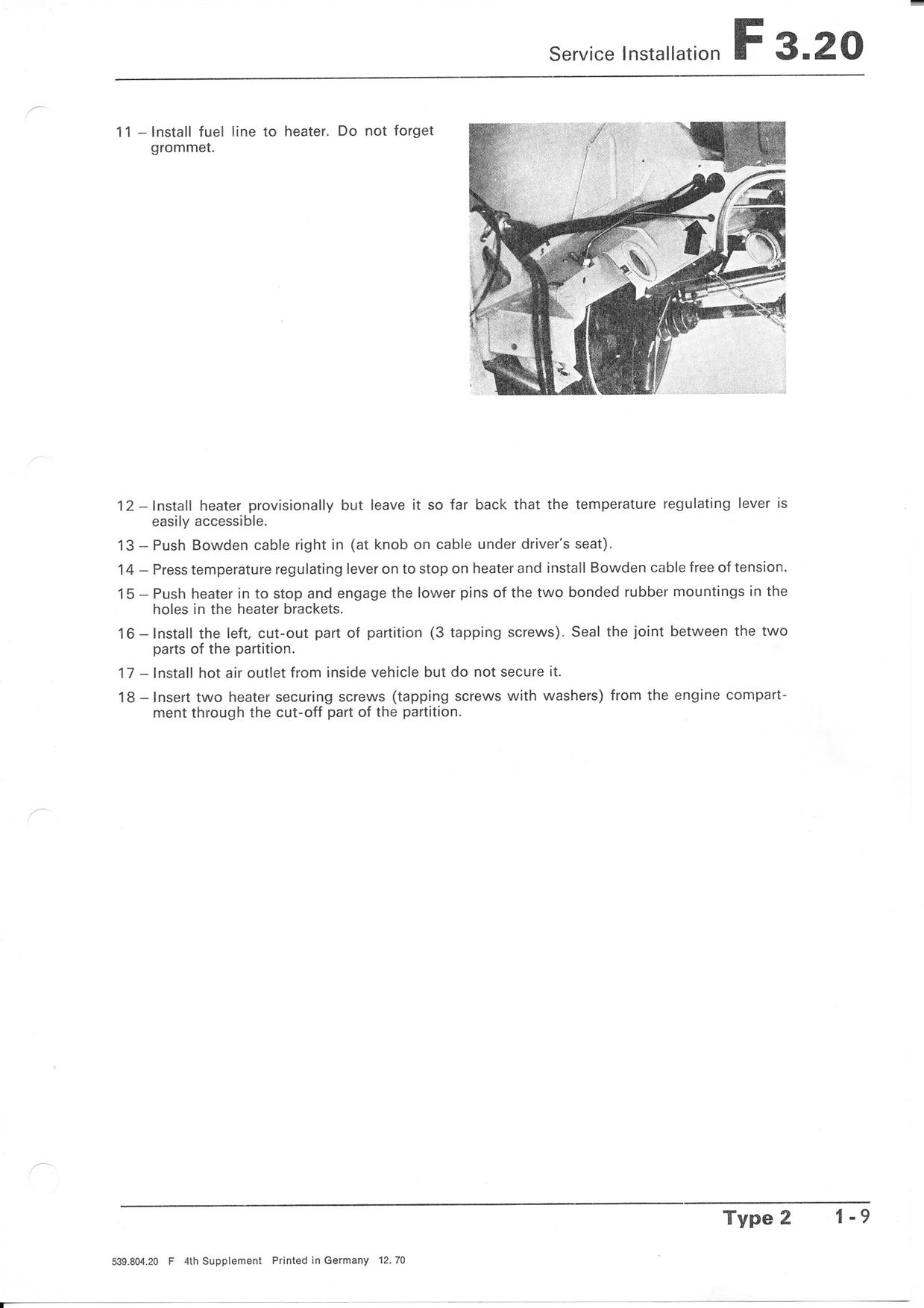

F3.20 1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8 1-9 1-10 1-11 1-12 1-13

F4 - Fresh Air Heating, Type 1/Beetle, Eberspacher BN2 - Section F4 PDF (62 MB)
F4.1 1-1 1-2
F4.1 2-1 2-2
F4.1 3-1
F4.1 4-1 4-2 4-3 4-4
F4.1 5-1a 5-1b

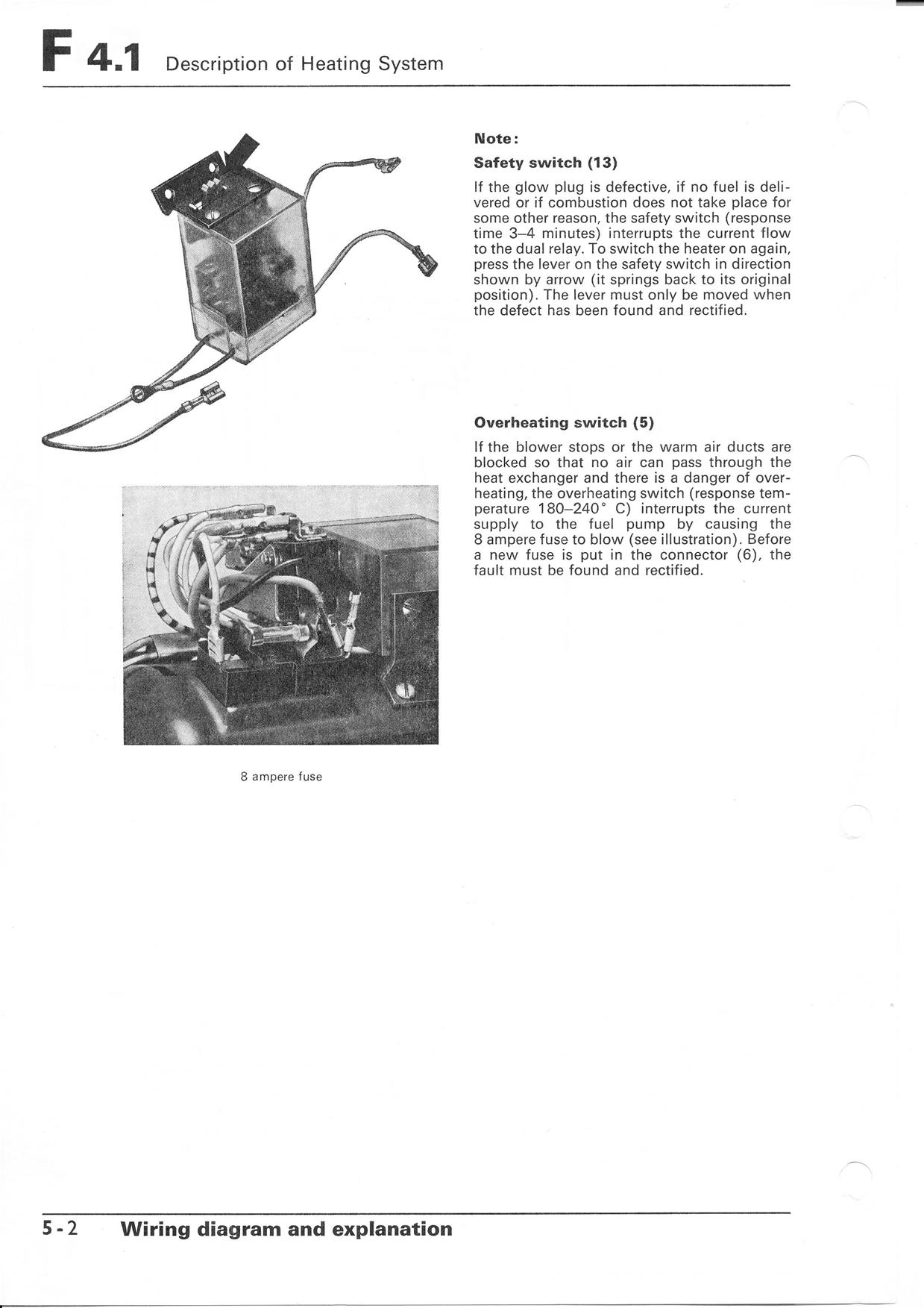

F4.1 5-2
F4.1 6-1a 6-1b
F4.1 6-2
F4.1 6-3a 6-3b
F4.1 6-4
F4.1 6-5a 6-5b

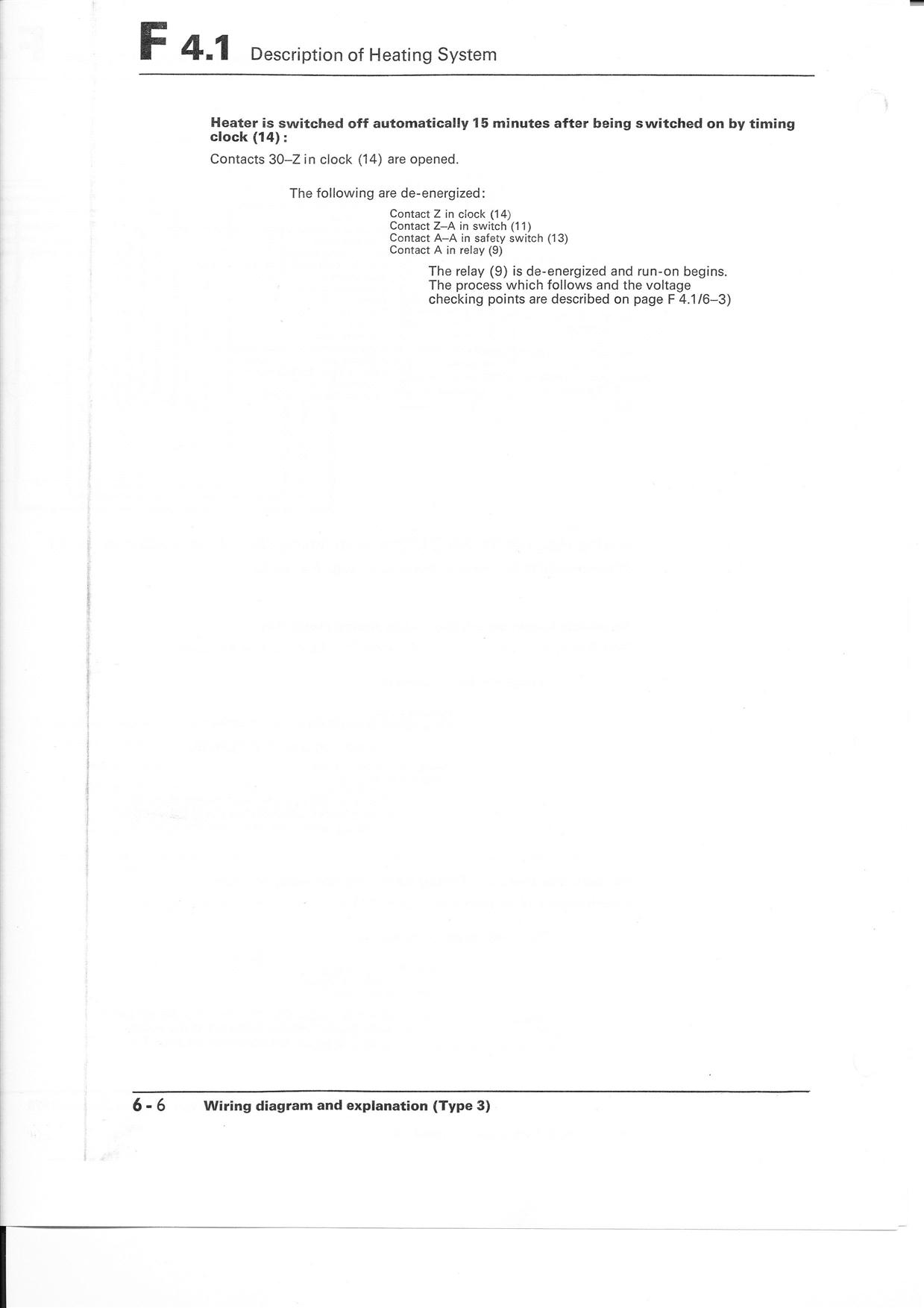

F4.1 6-6
F4.1 6-7a 6-7b 6-7c
F4.1 6-8a 6-8b 6-8c
F4.1 6-9a 6-9b 6-9c

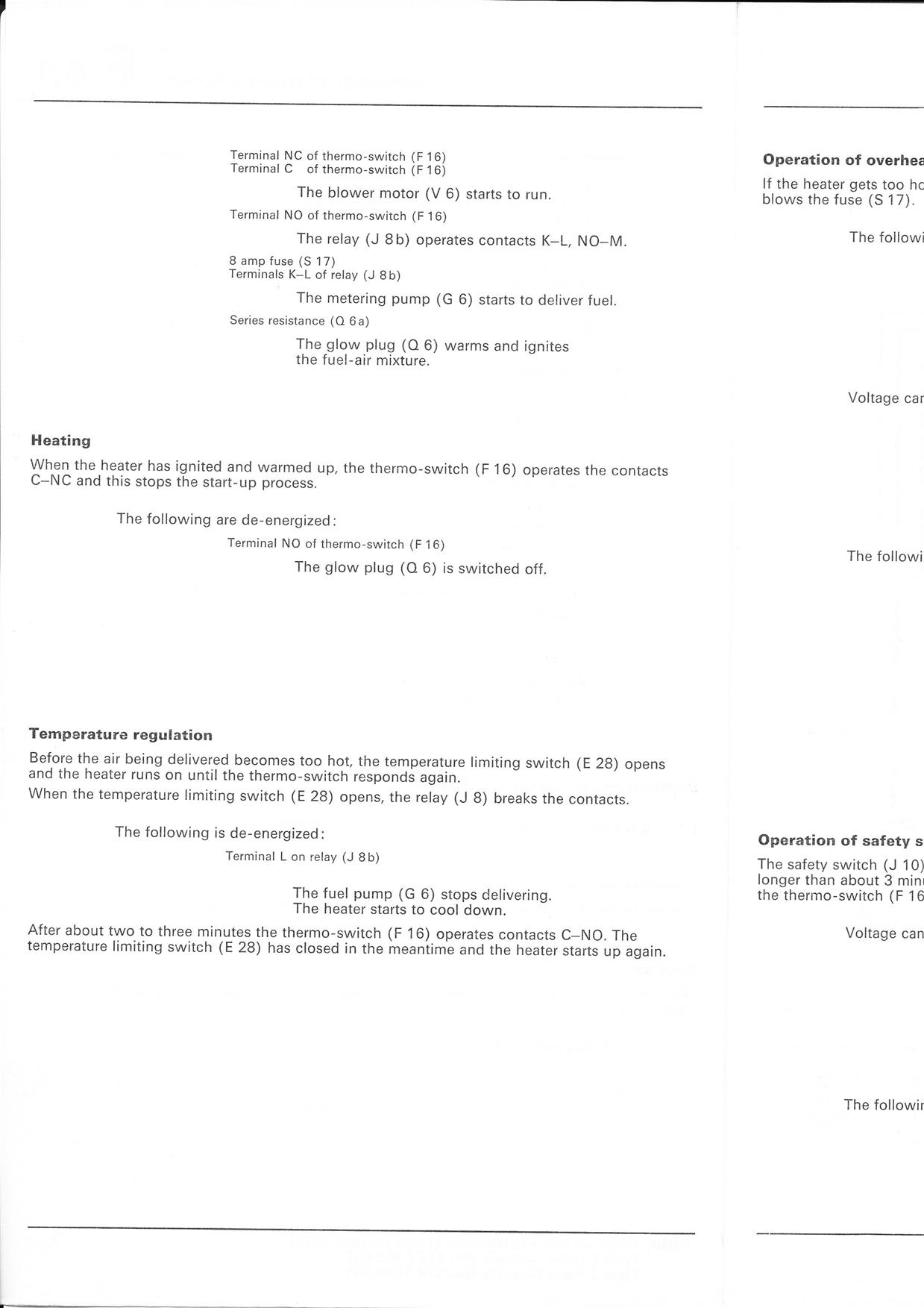

F4.1 6-10a 6-10b 6-10c

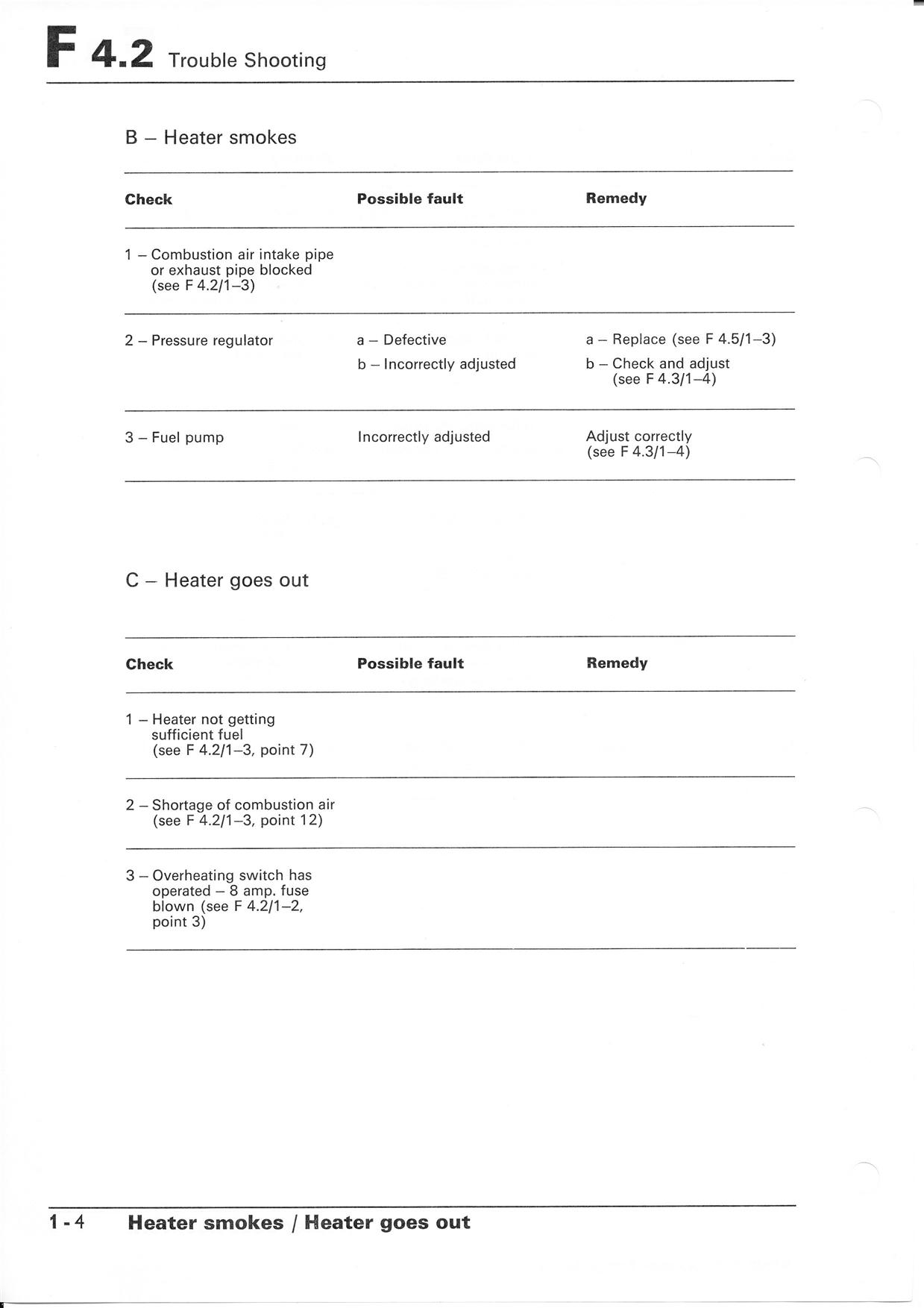

F4.2 1-1 1-2 1-3 1-4

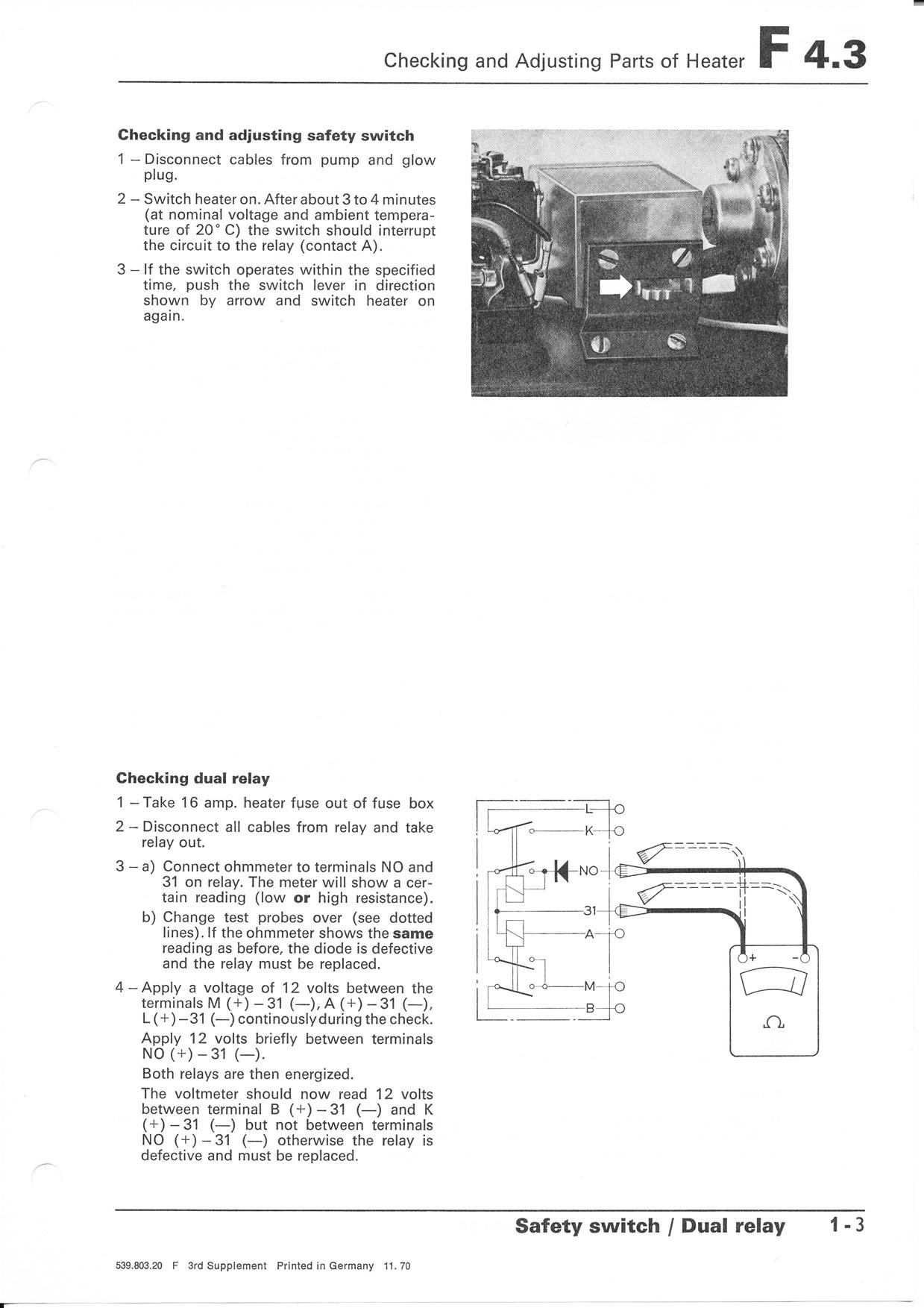

F4.3 1-1 1-2 1-3 1-4

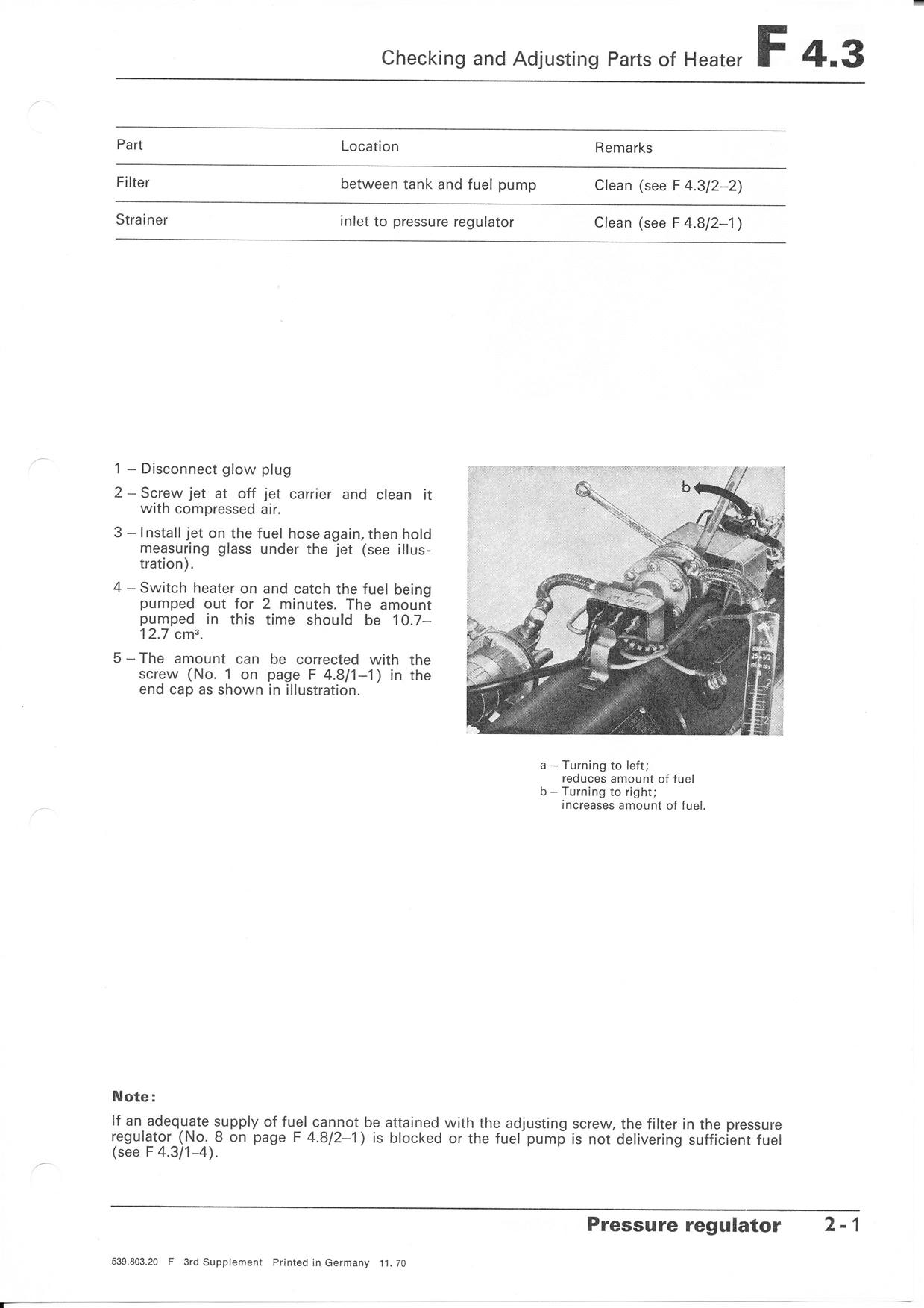

F4.3 2-1 2-2
F4.4 1-1 1-2

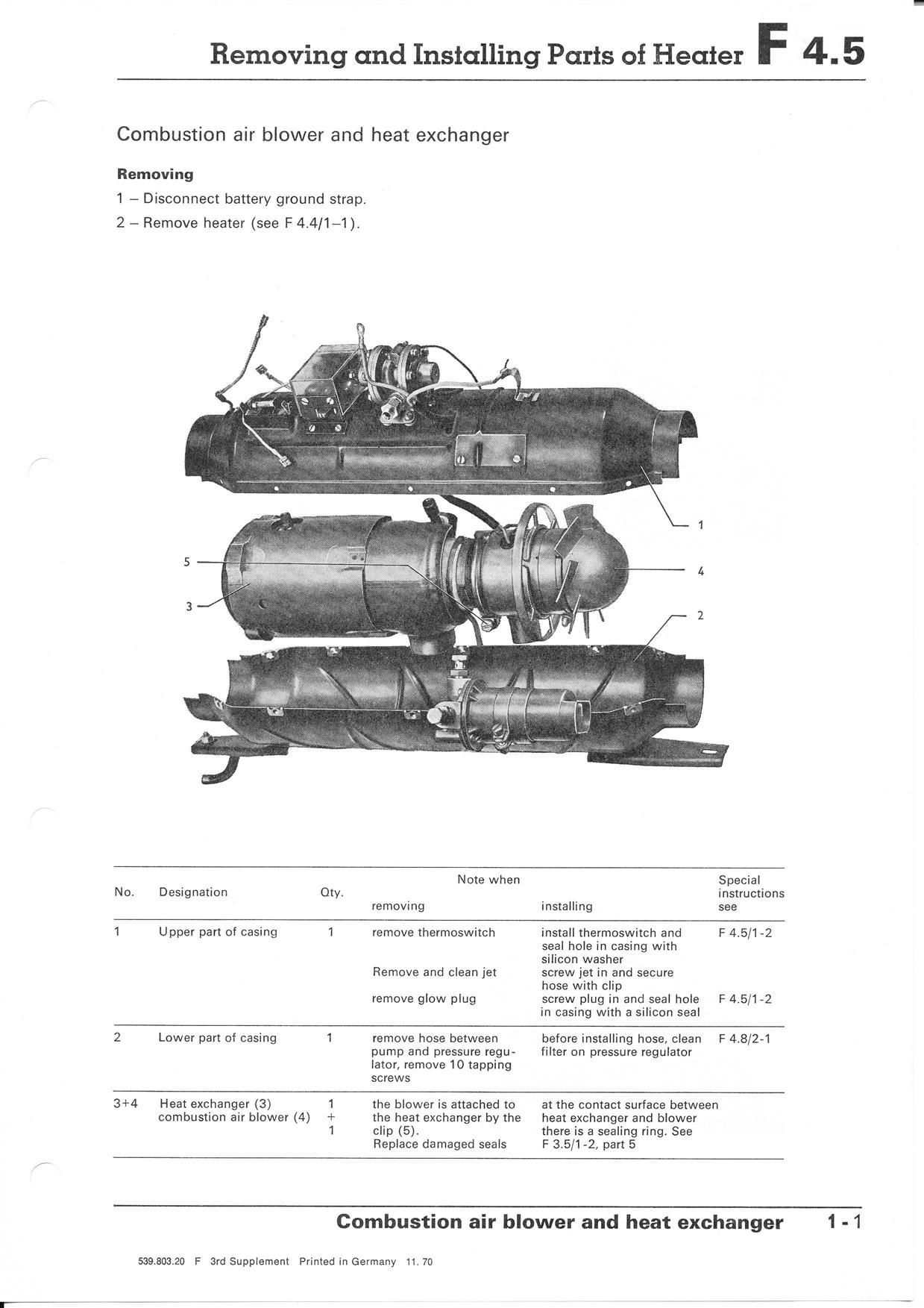

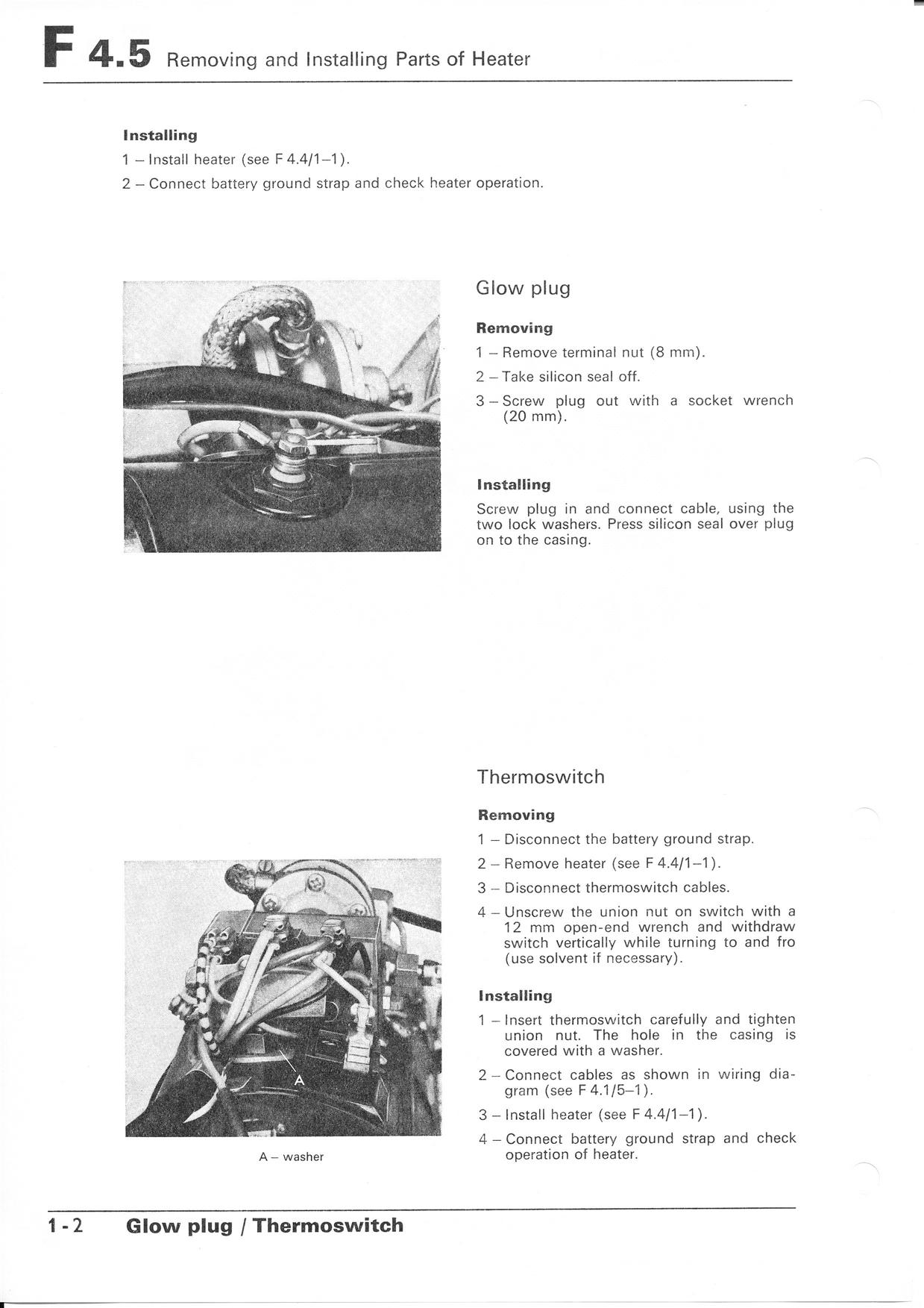

F4.5 1-1 1-2 1-3 1-4 1-5
F4.6 1-1 1-2
F4.7 1-1 1-2
F4.8 1-1

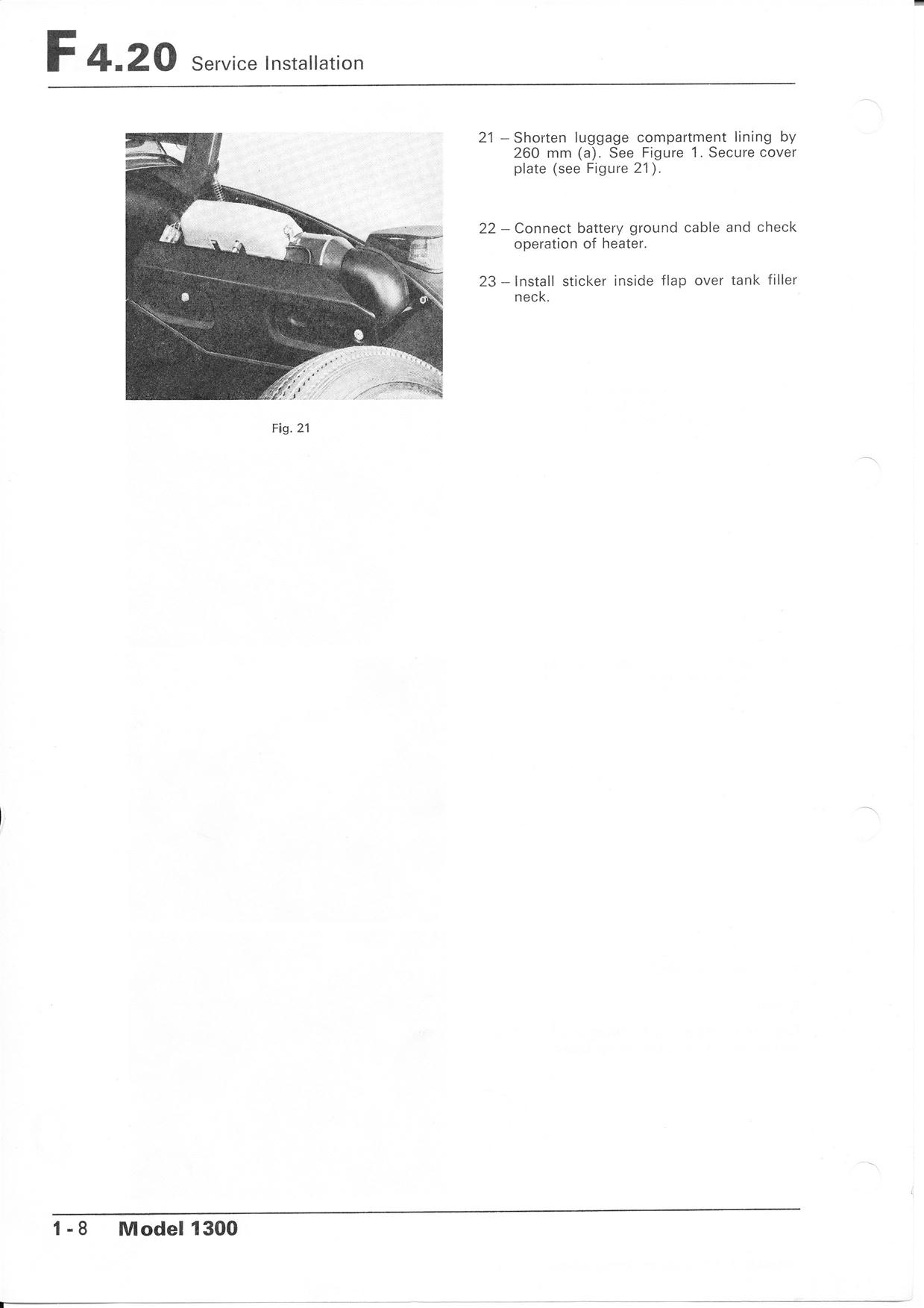

F4.20 1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8
F4.20 2-1 2-2 2-3 2-4 2-5 2-6 2-7 2-8 2-9 2-10

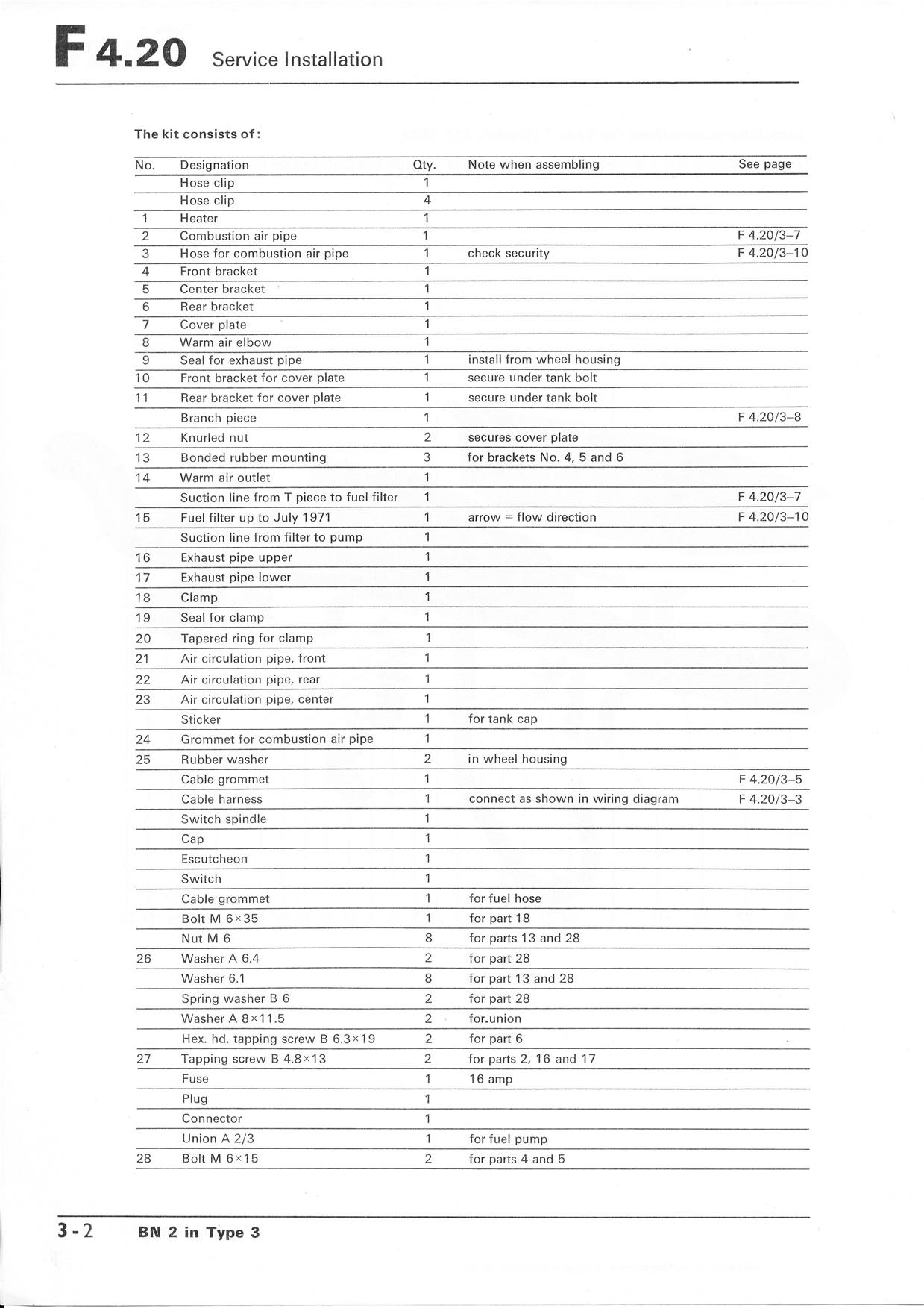

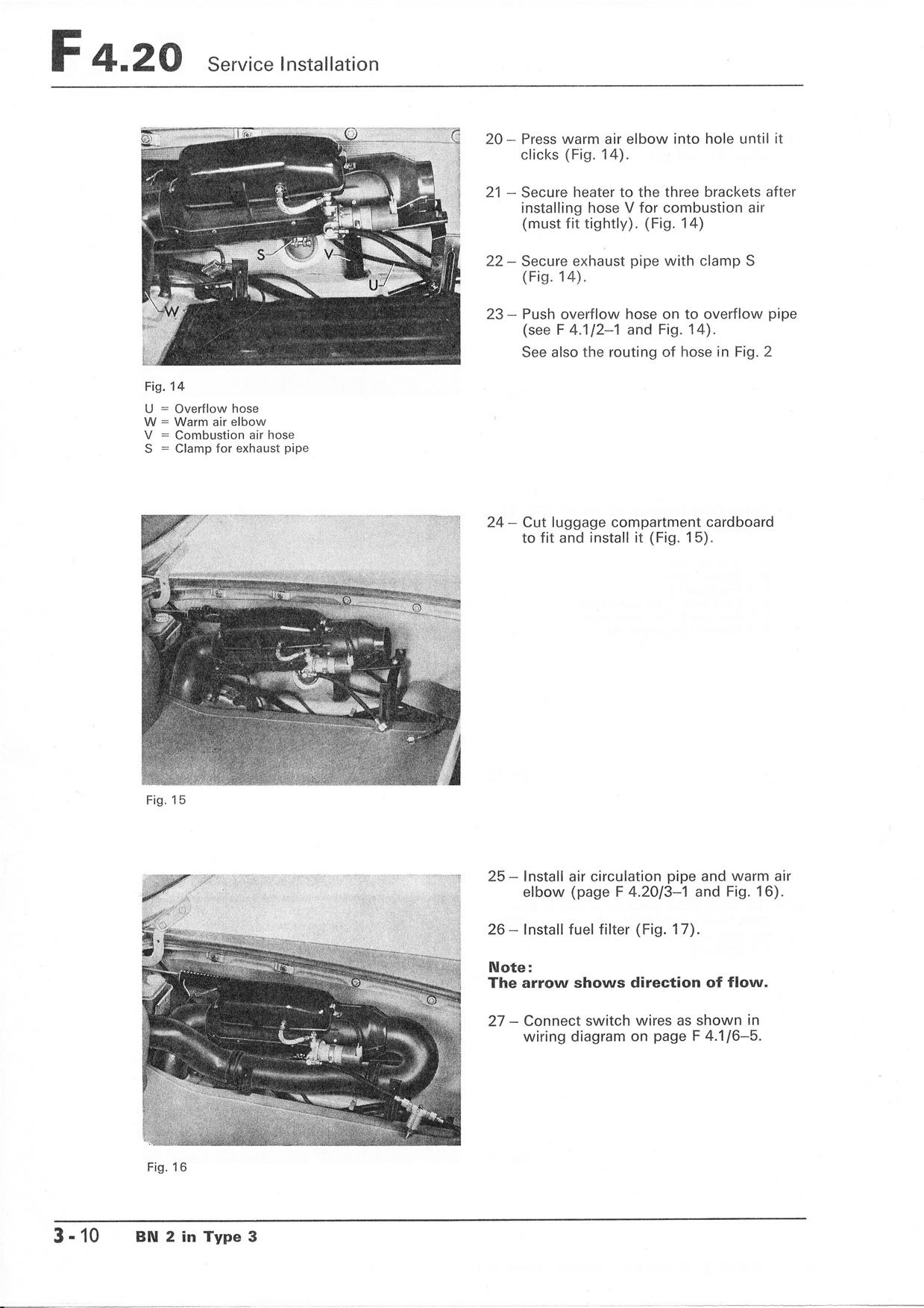

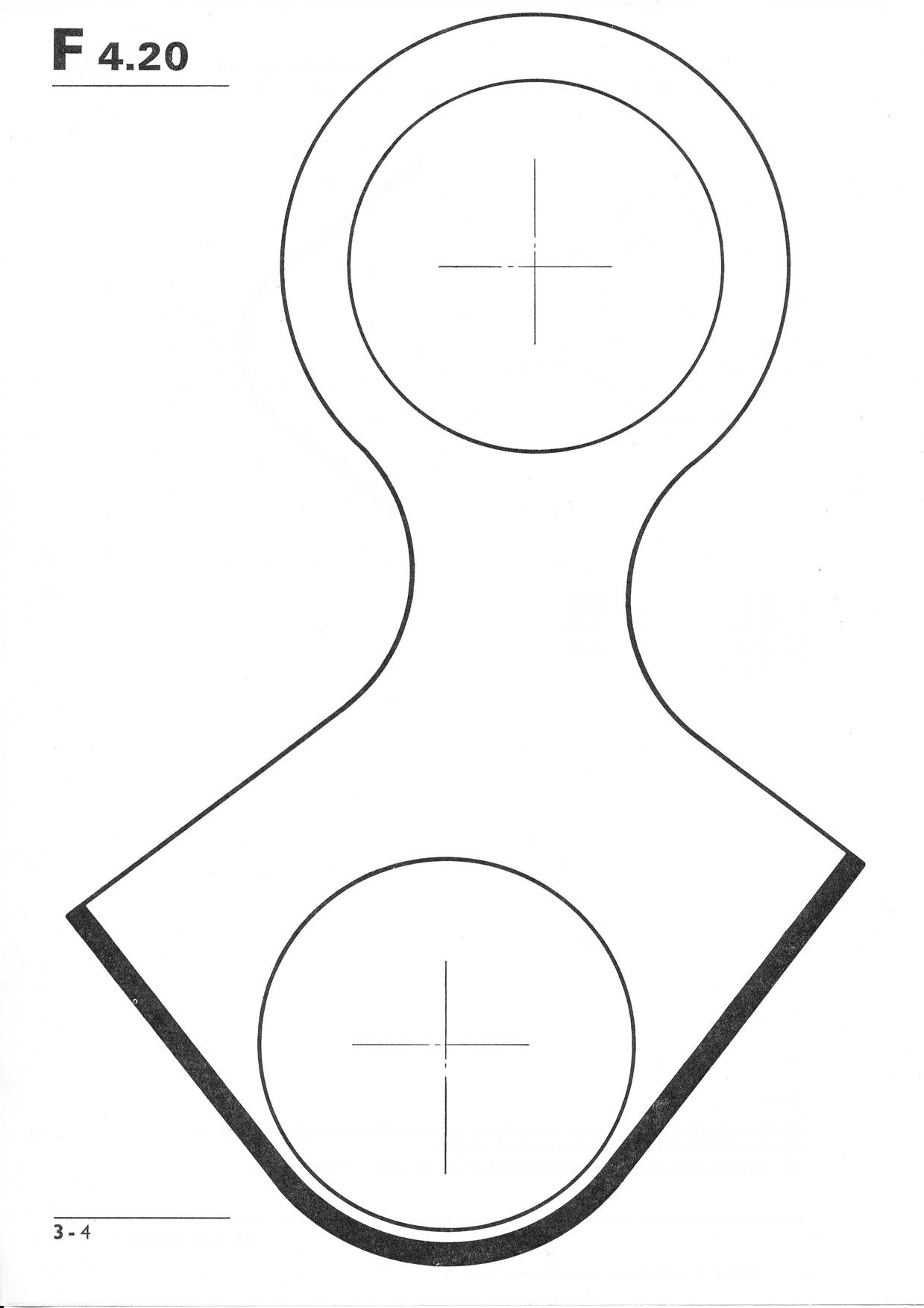

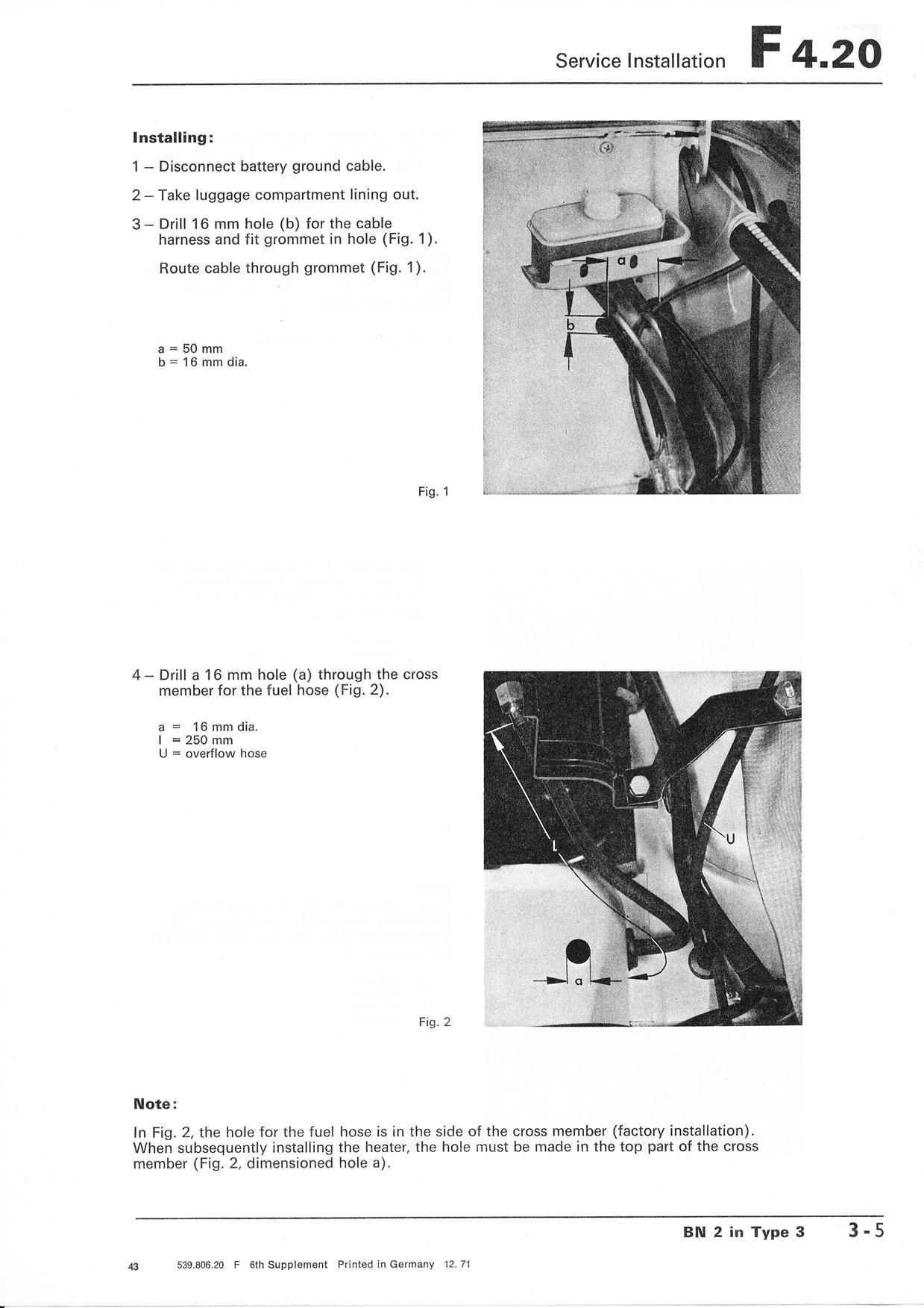

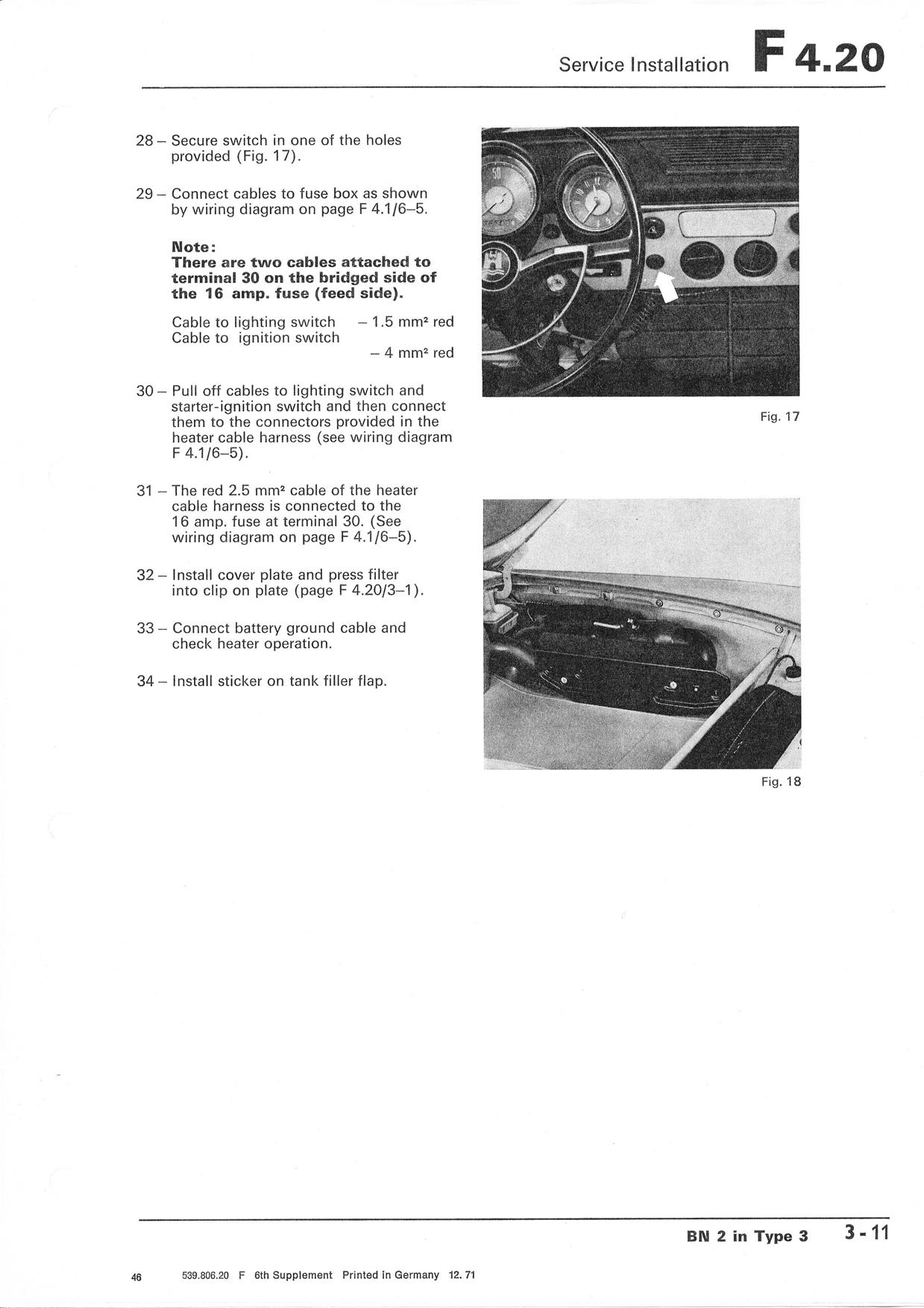

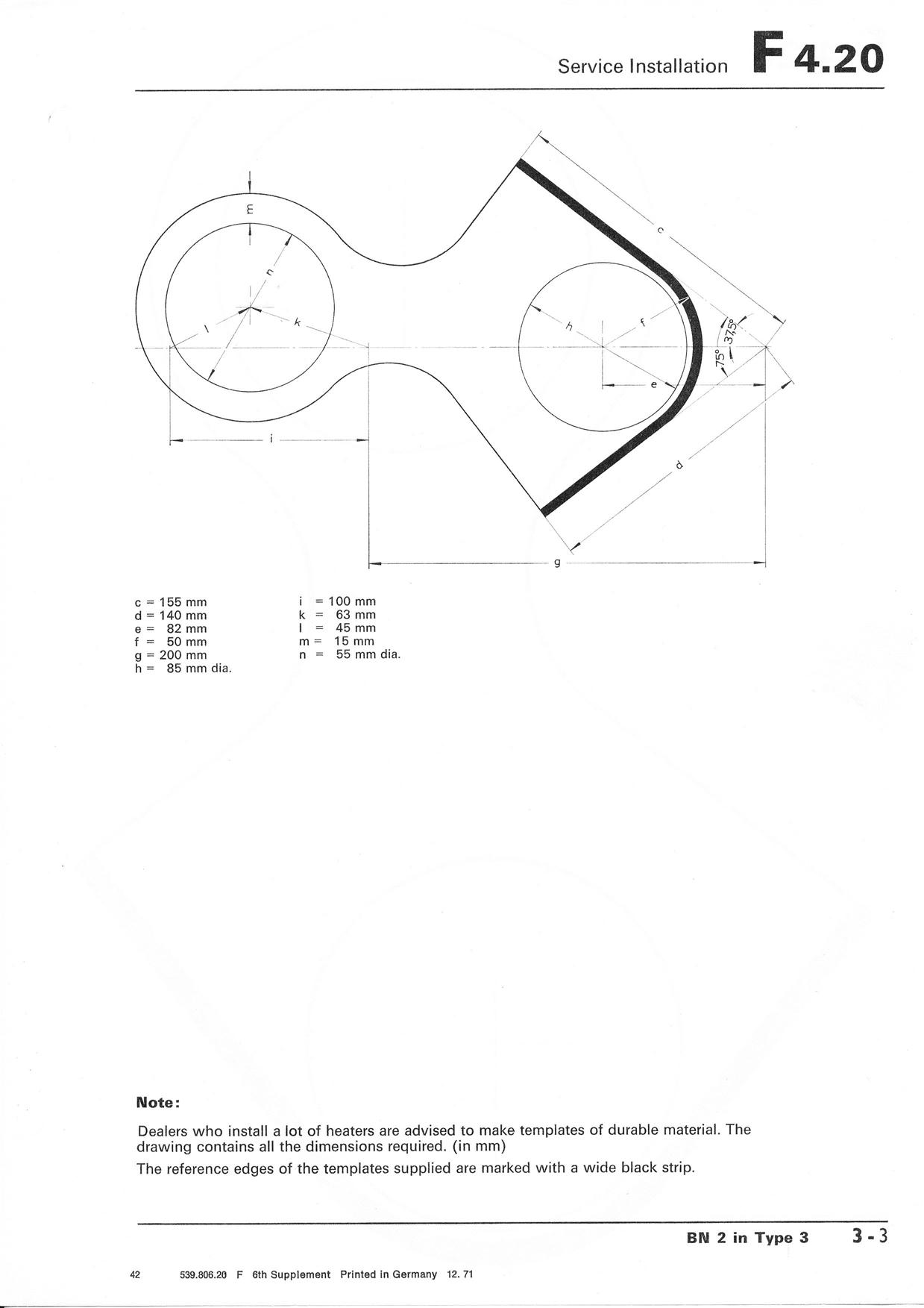

F4.20 3-1 3-2 3-3 3-4 3-5 3-6 3-7 3-8 3-9 3-10 3-11

F5 - Fresh Air Heating, Type 1/Beetle, Eberspacher B2 - Section F5 PDF (73.8 MB)
F5.1 1-1 1-2
F5.1 2-1 2-2 2-3

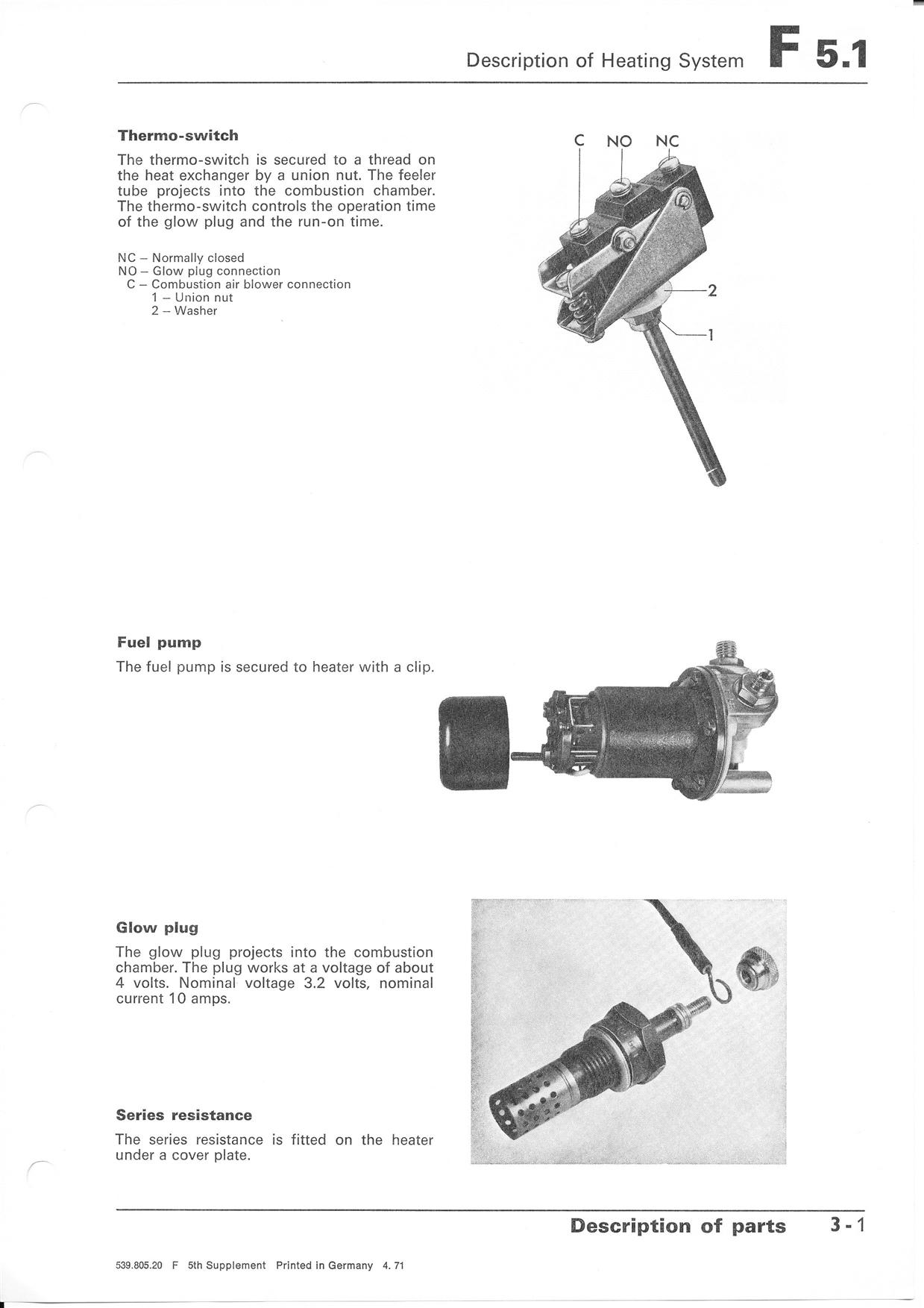

F5.1 3-1 3-2
F5.1 4-1
F5.2 1-1 1-2 1-3 1-4

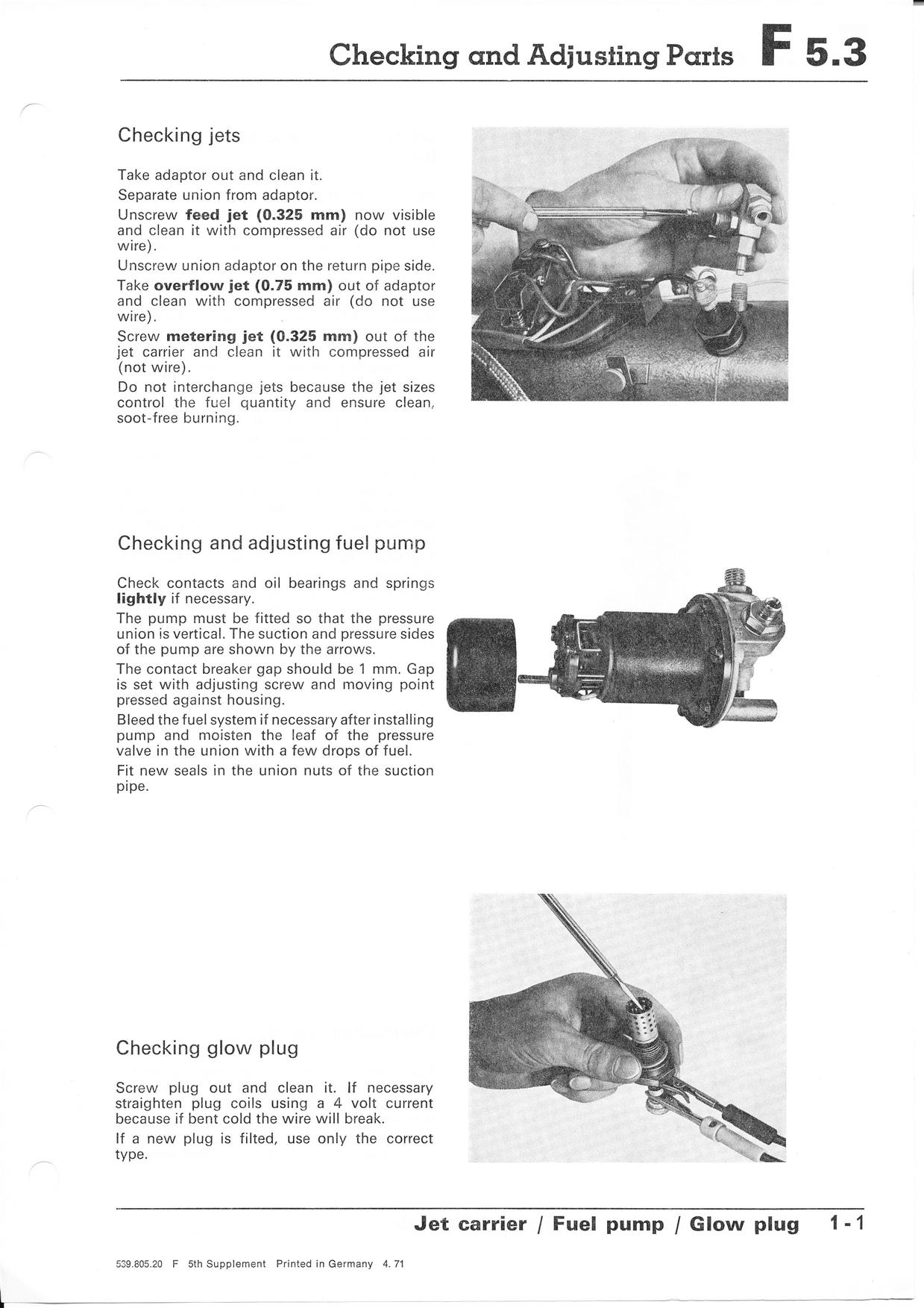

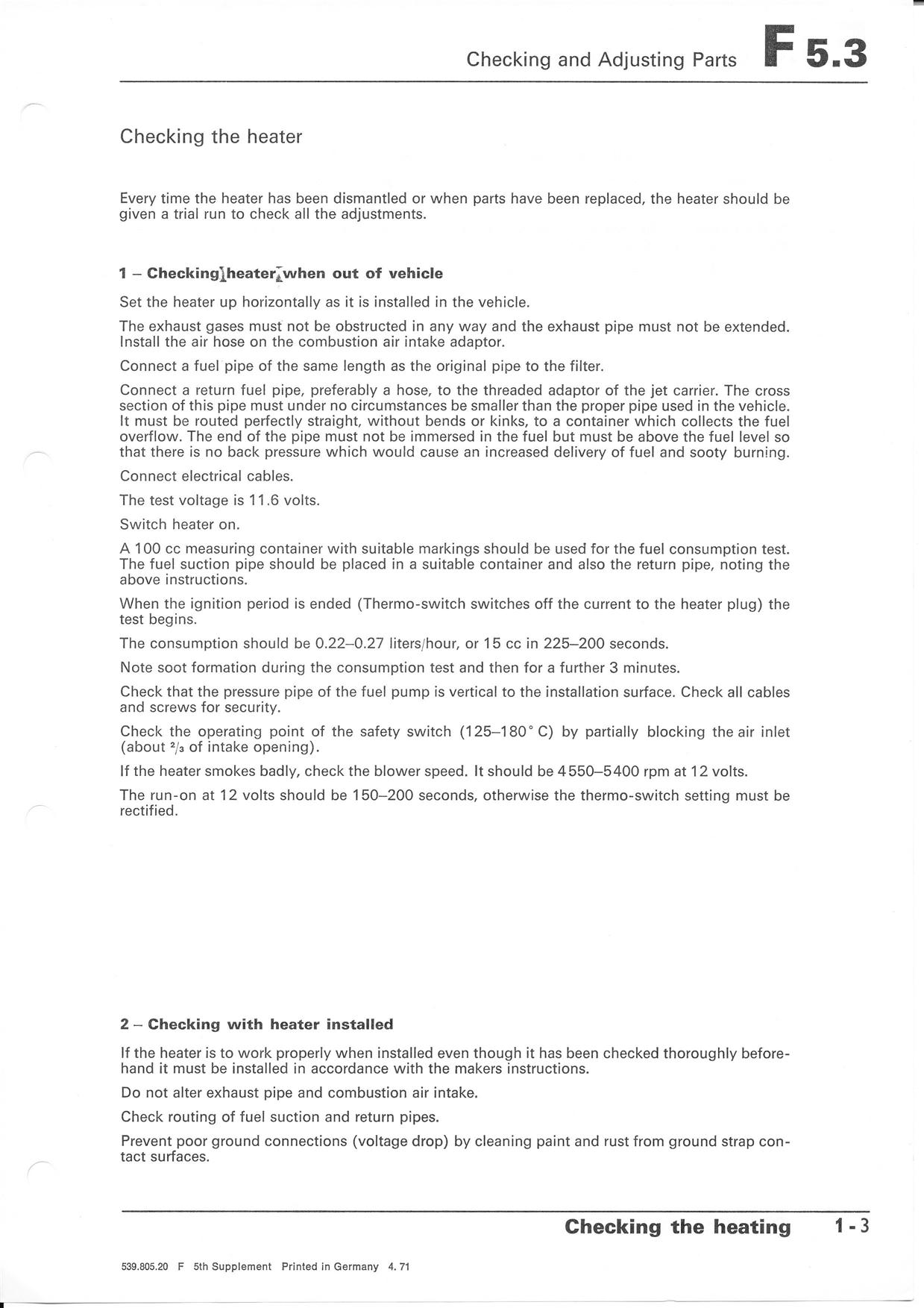

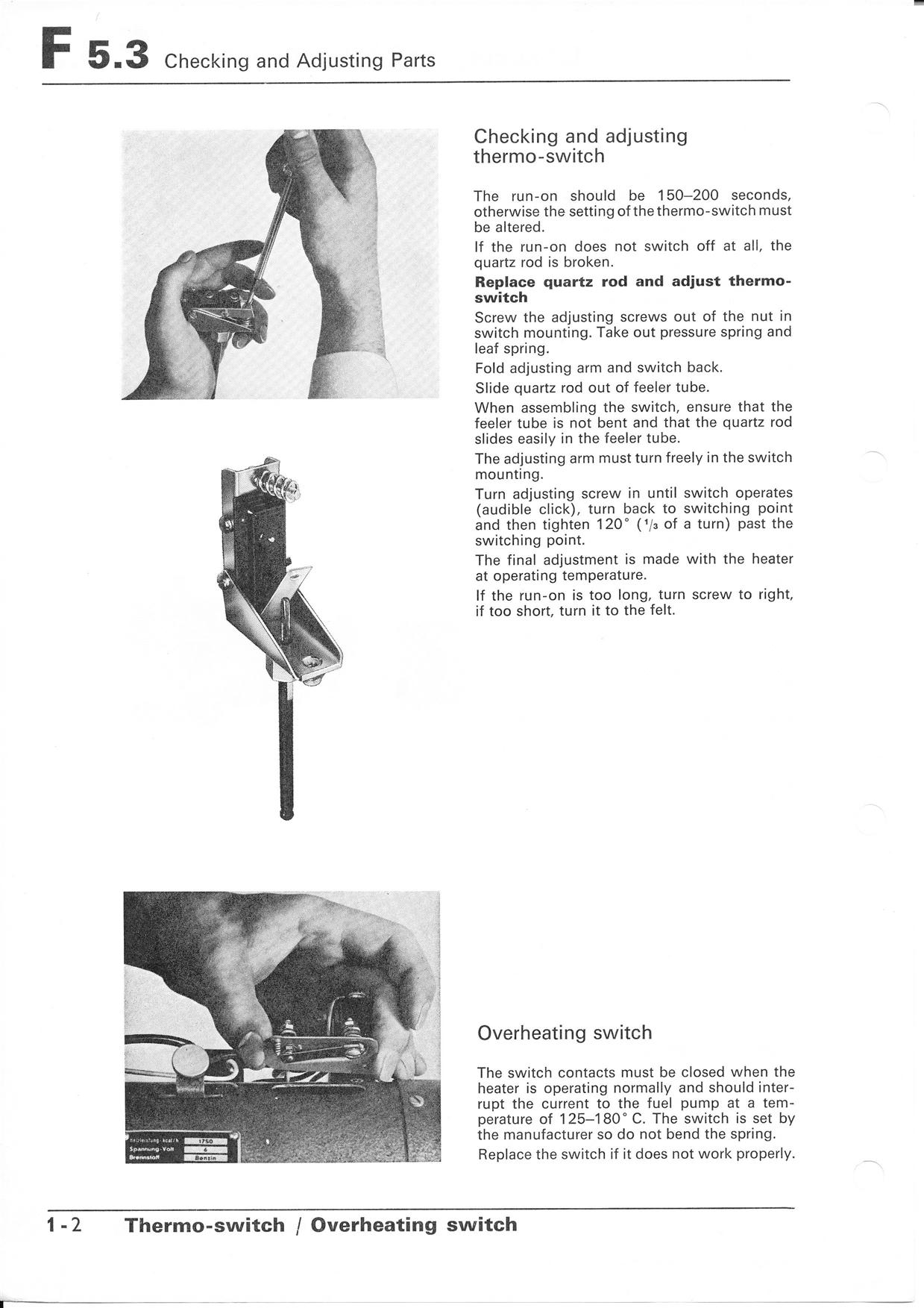

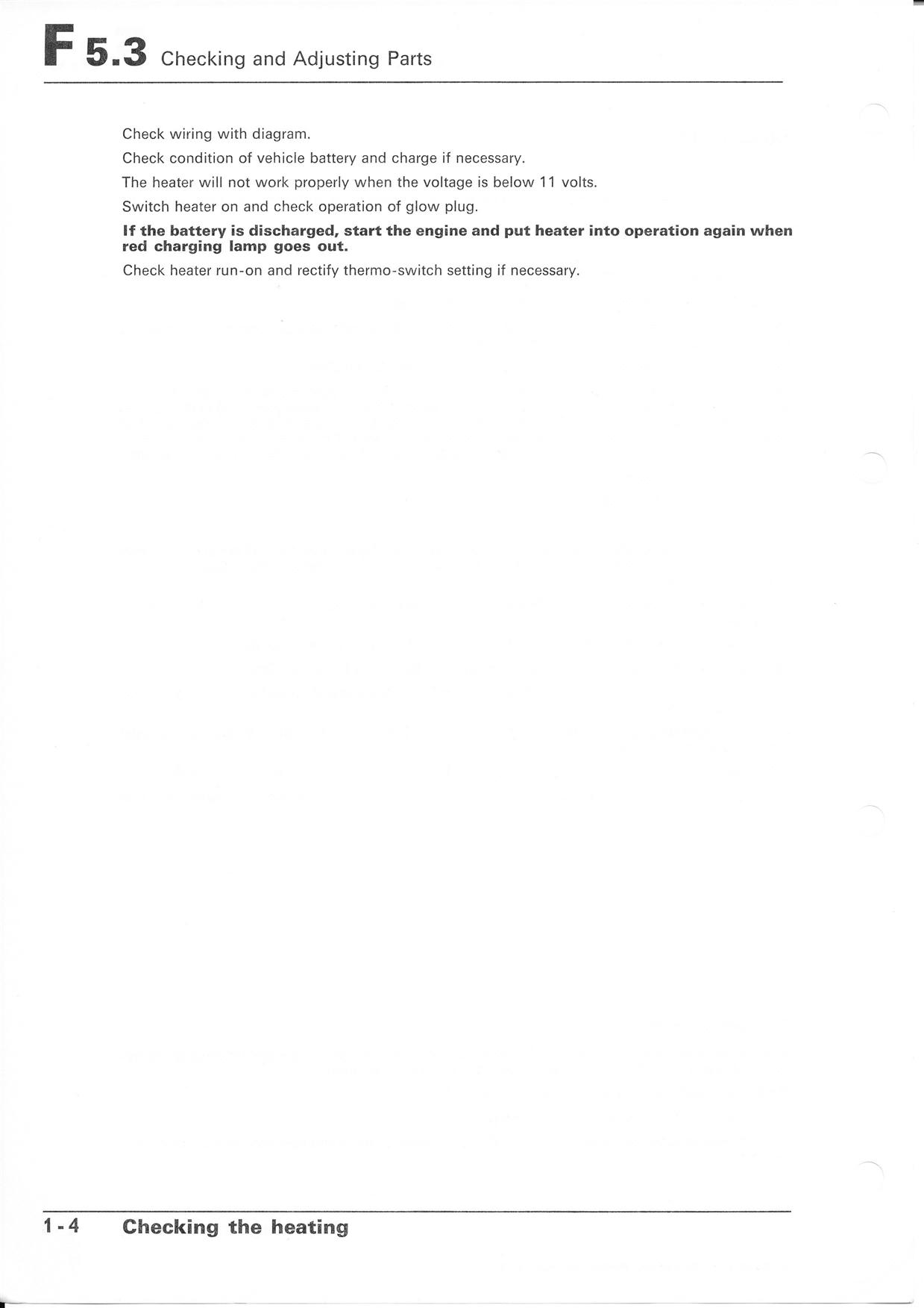

F5.3 1-1 1-2 1-3 1-4
F5.4 1-1 1-2 1-3

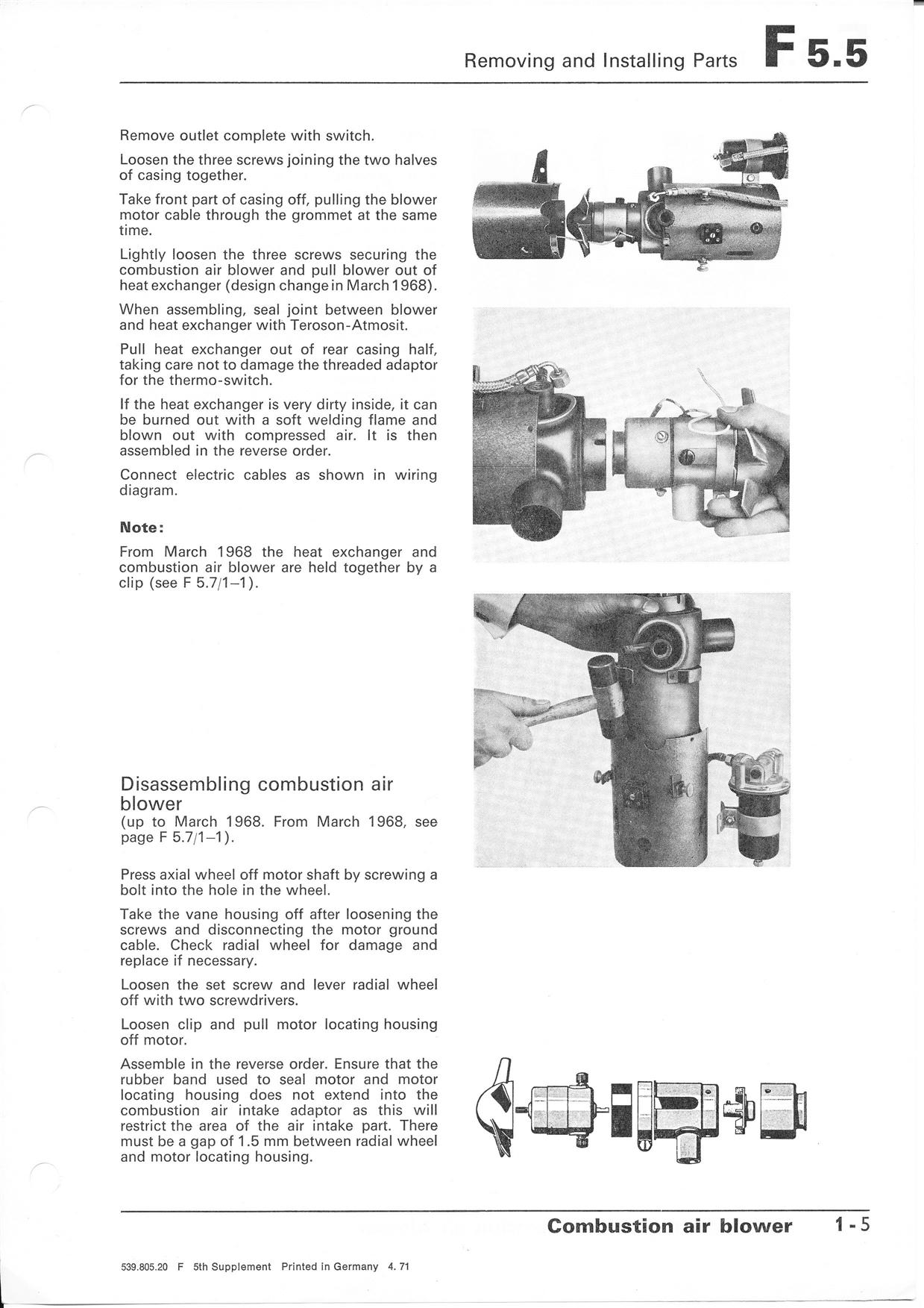

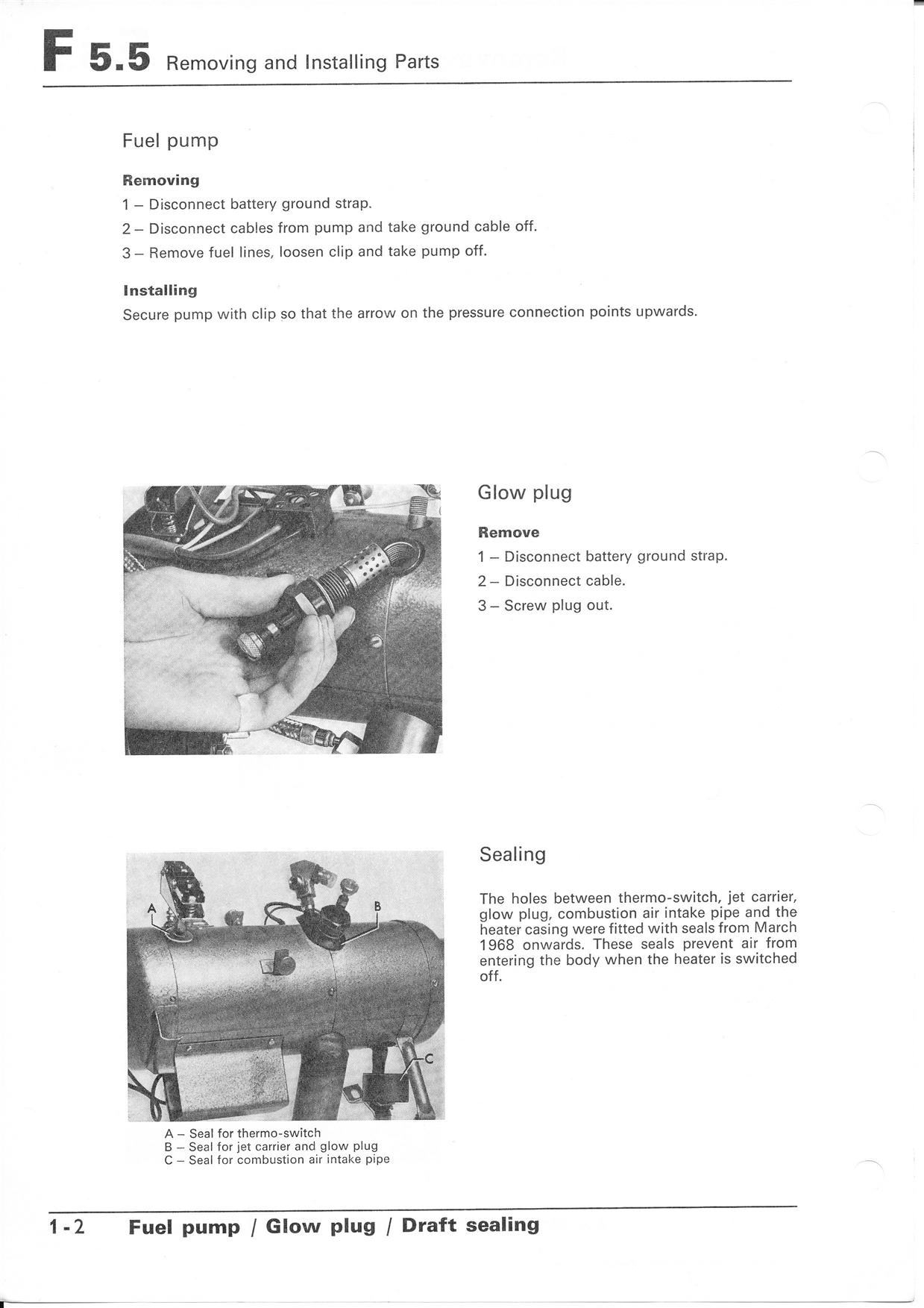

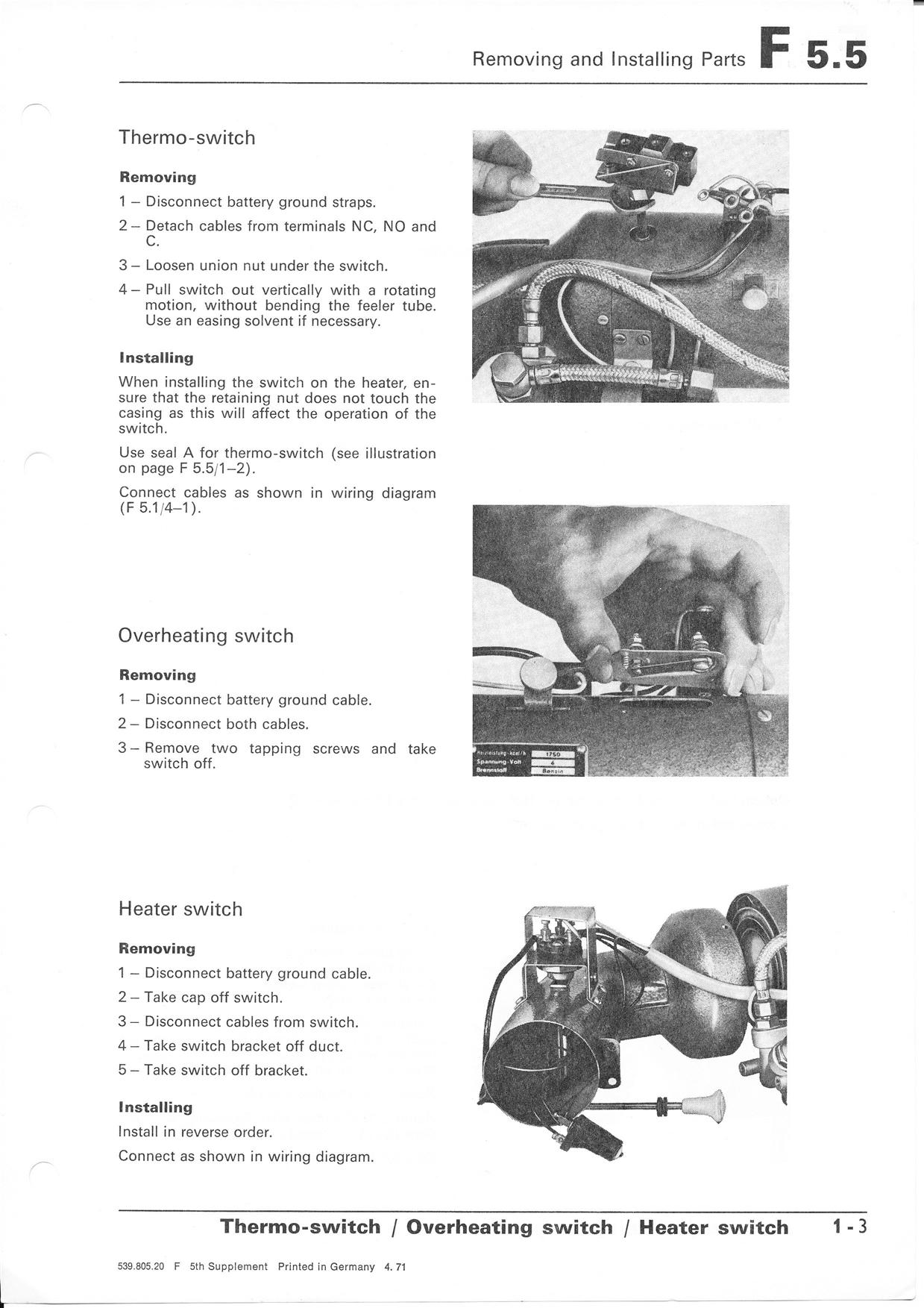

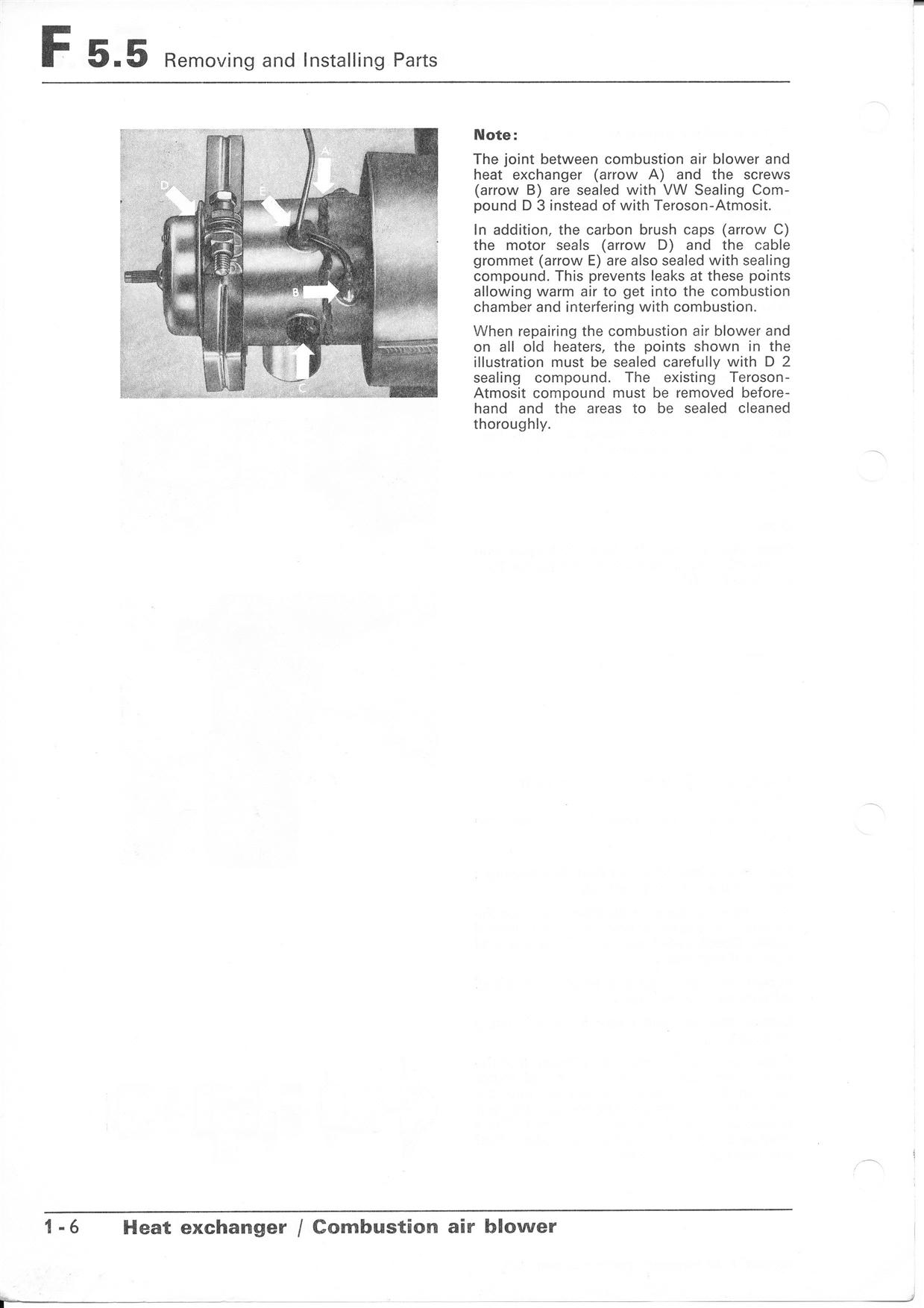

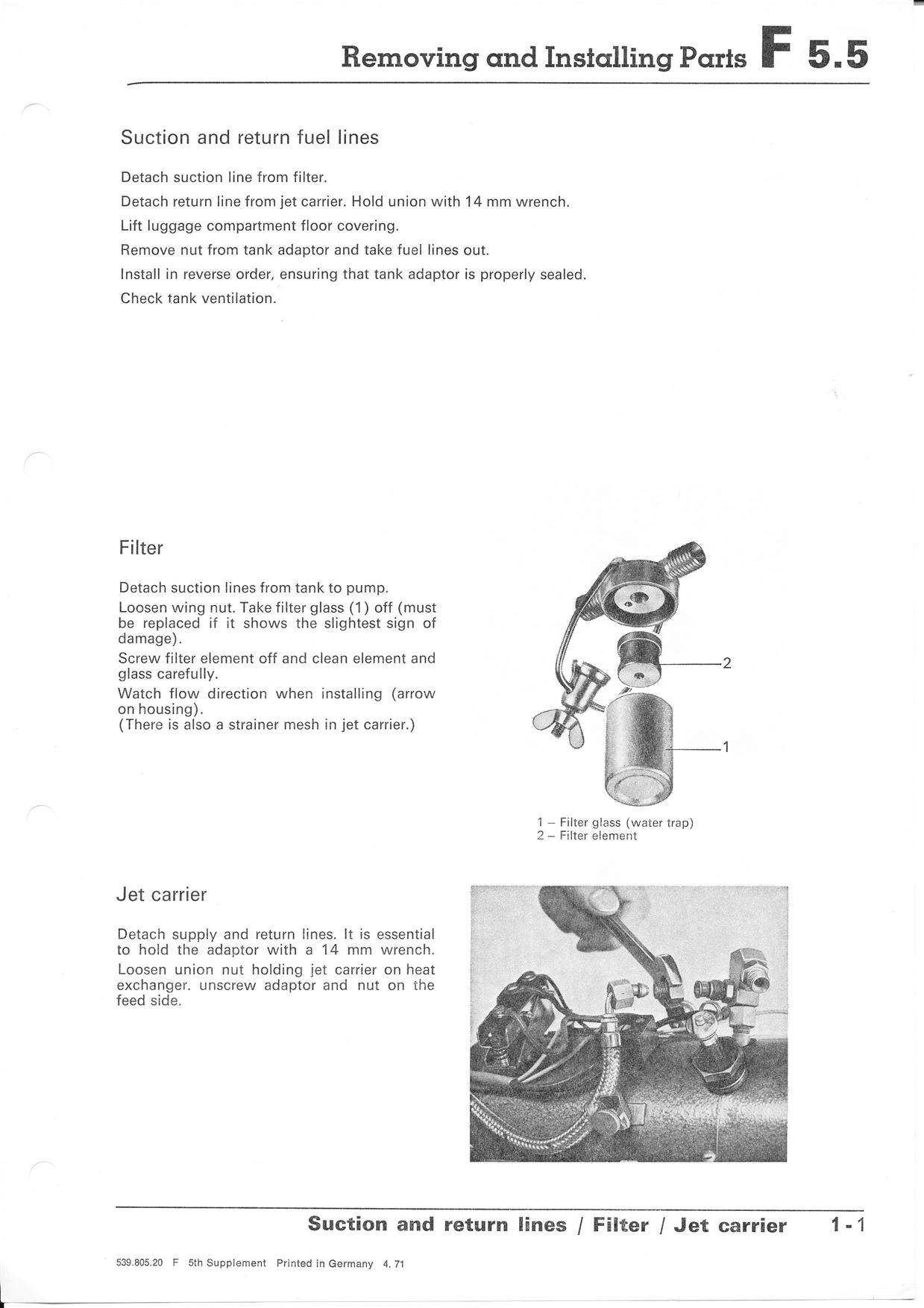

F5.5 1-1 1-2 1-3 1-4 1-5 1-6
F5.6 1-1 1-2
F5.7 1-1

F6 - Fresh Air Heating, Type 2/Bus, Eberspacher BA 6 - Section F6 PDF (19.4 MB)
F6.1 1-1a 1-1b
F6.1 1-2
F6.1 2-1 2-2
F6.1 3-1 3-2

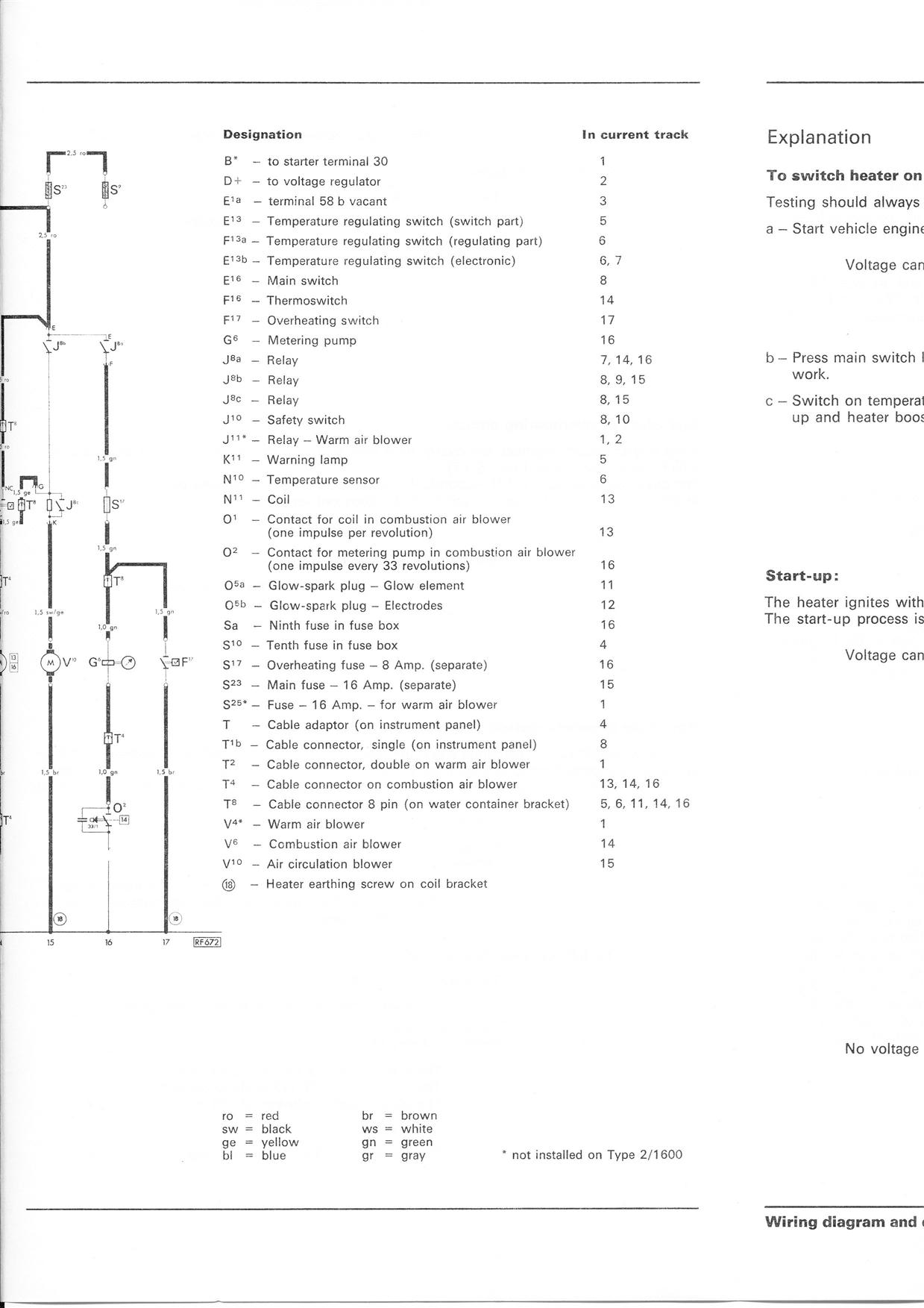

F6.1 4-1a 4-1b 4-1c

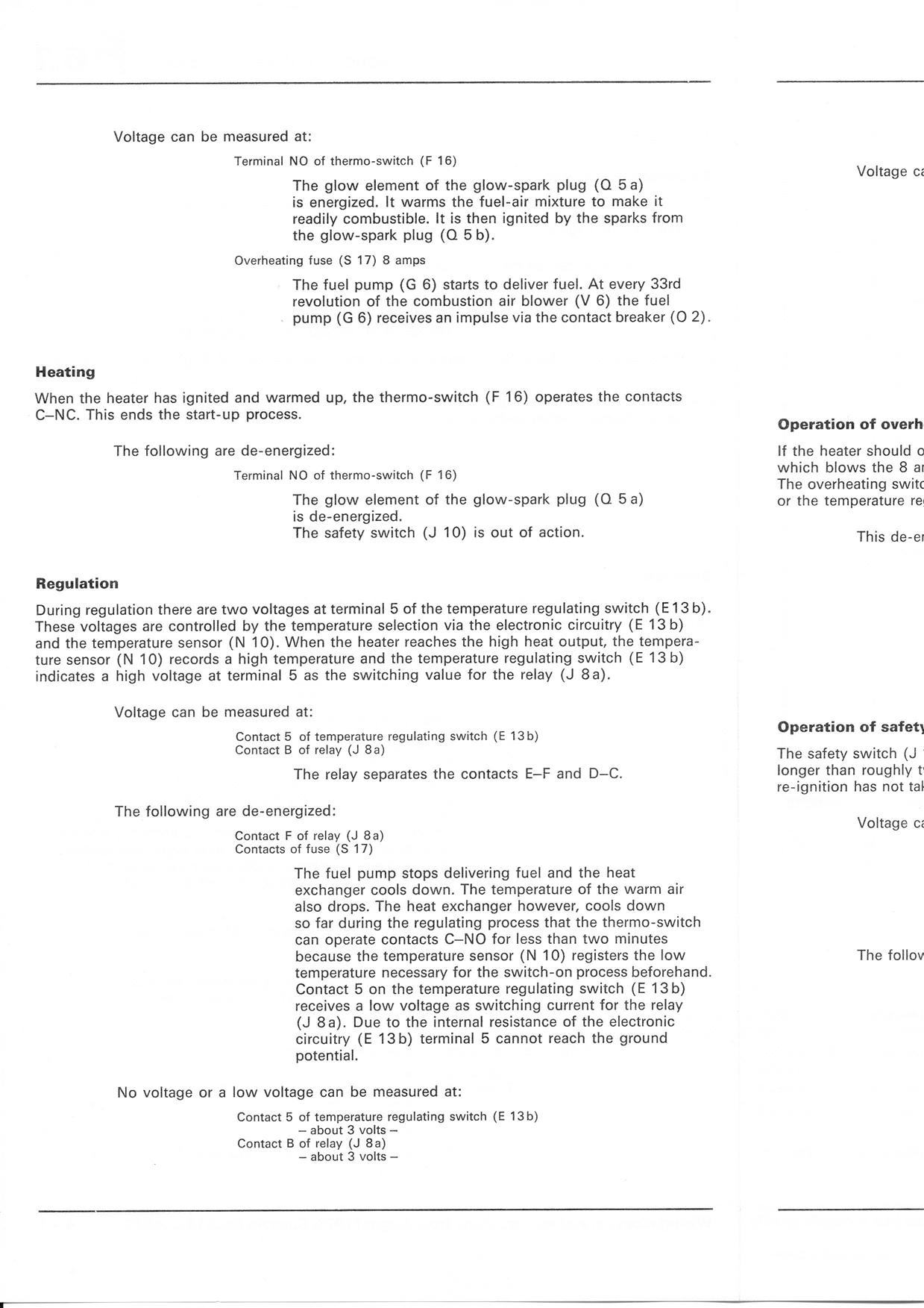

F6.1 4-2a 4-2b 4-2c

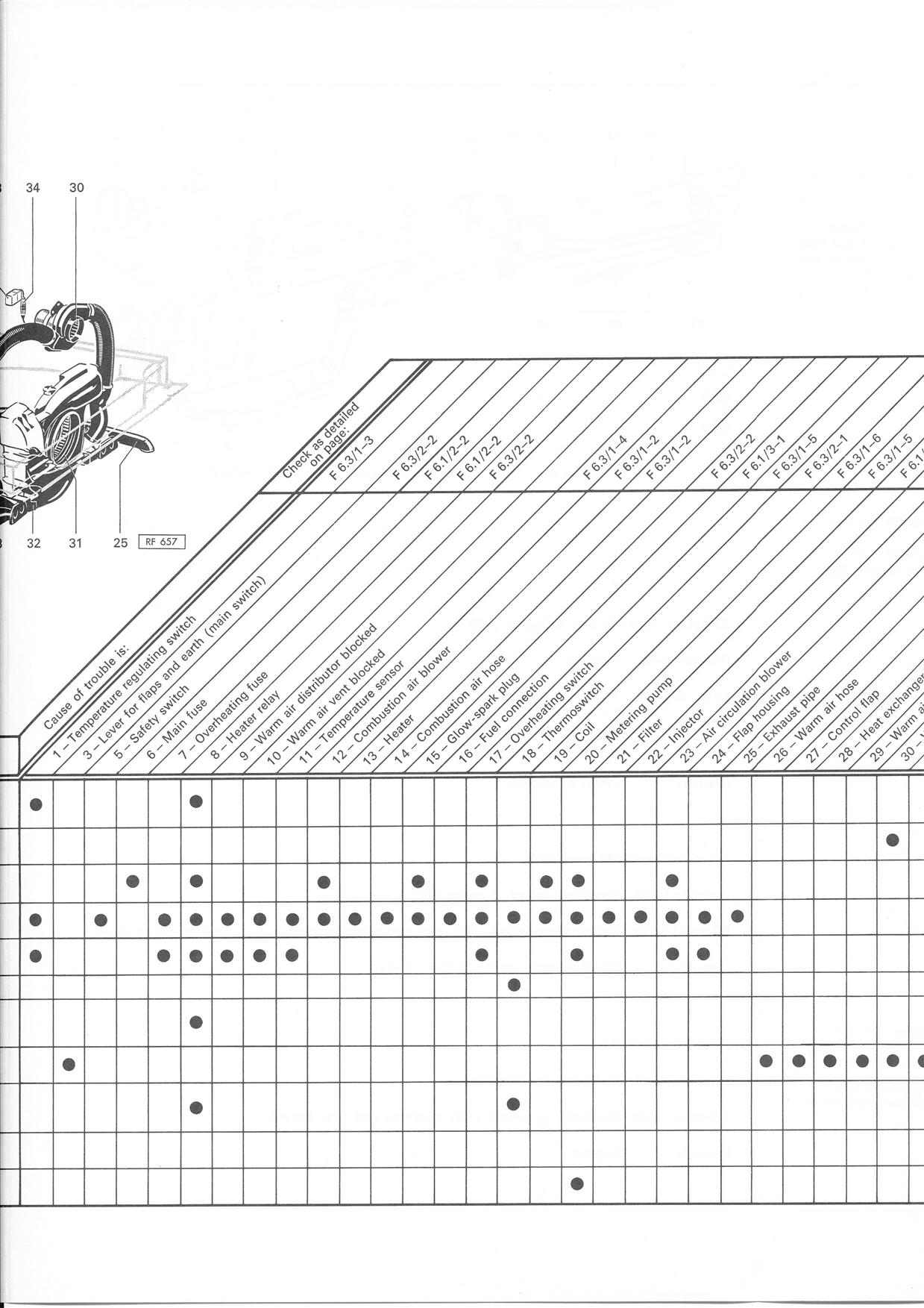

F6.2 1-1a 1-1b 1-1c
F6.2 1-2a 1-2b 1-2c

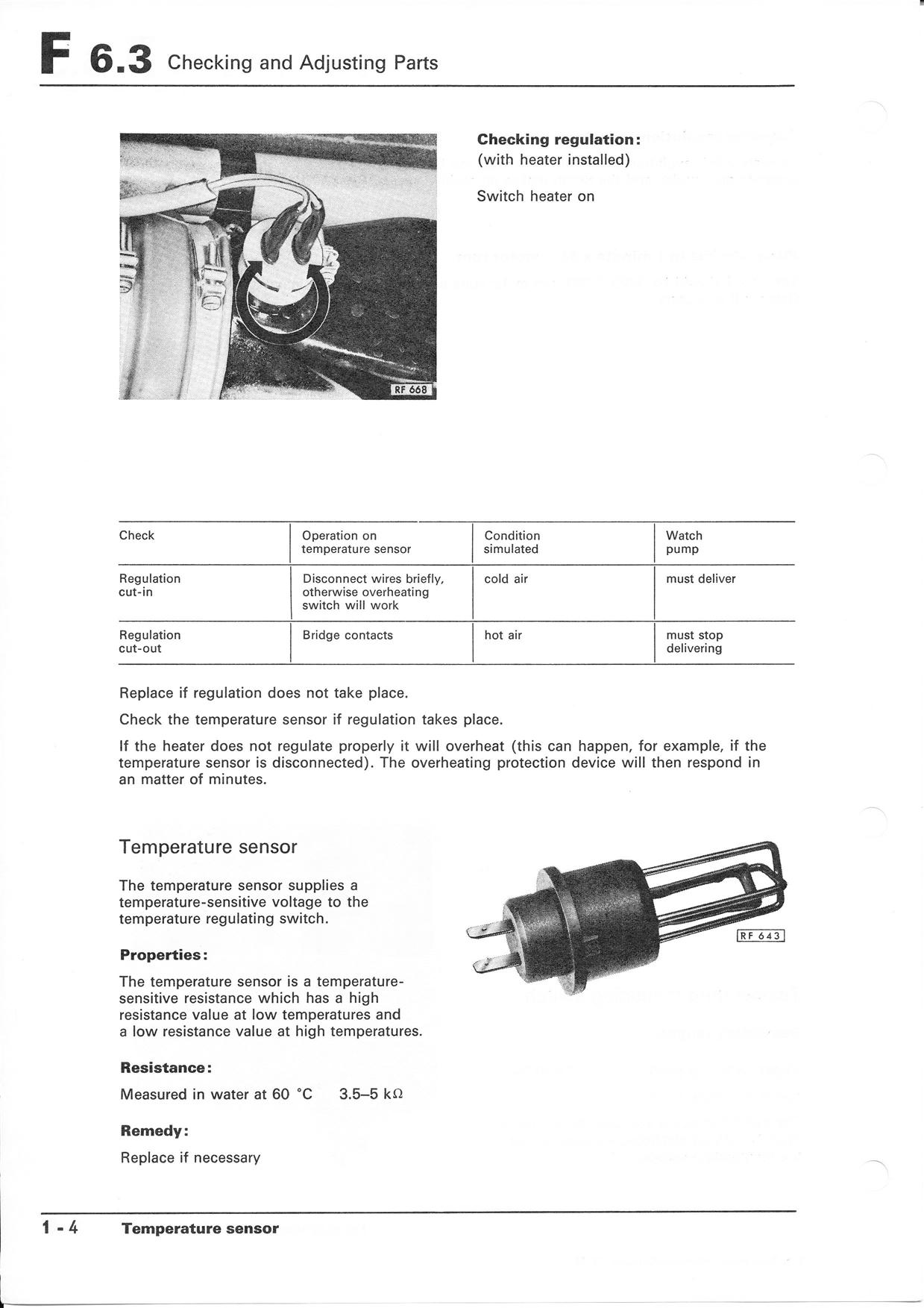

F6.3 1-1 1-2 1-3 1-4 1-5 1-6
F6.3 2-1 2-2
F6.4 1-1 1-2 1-3

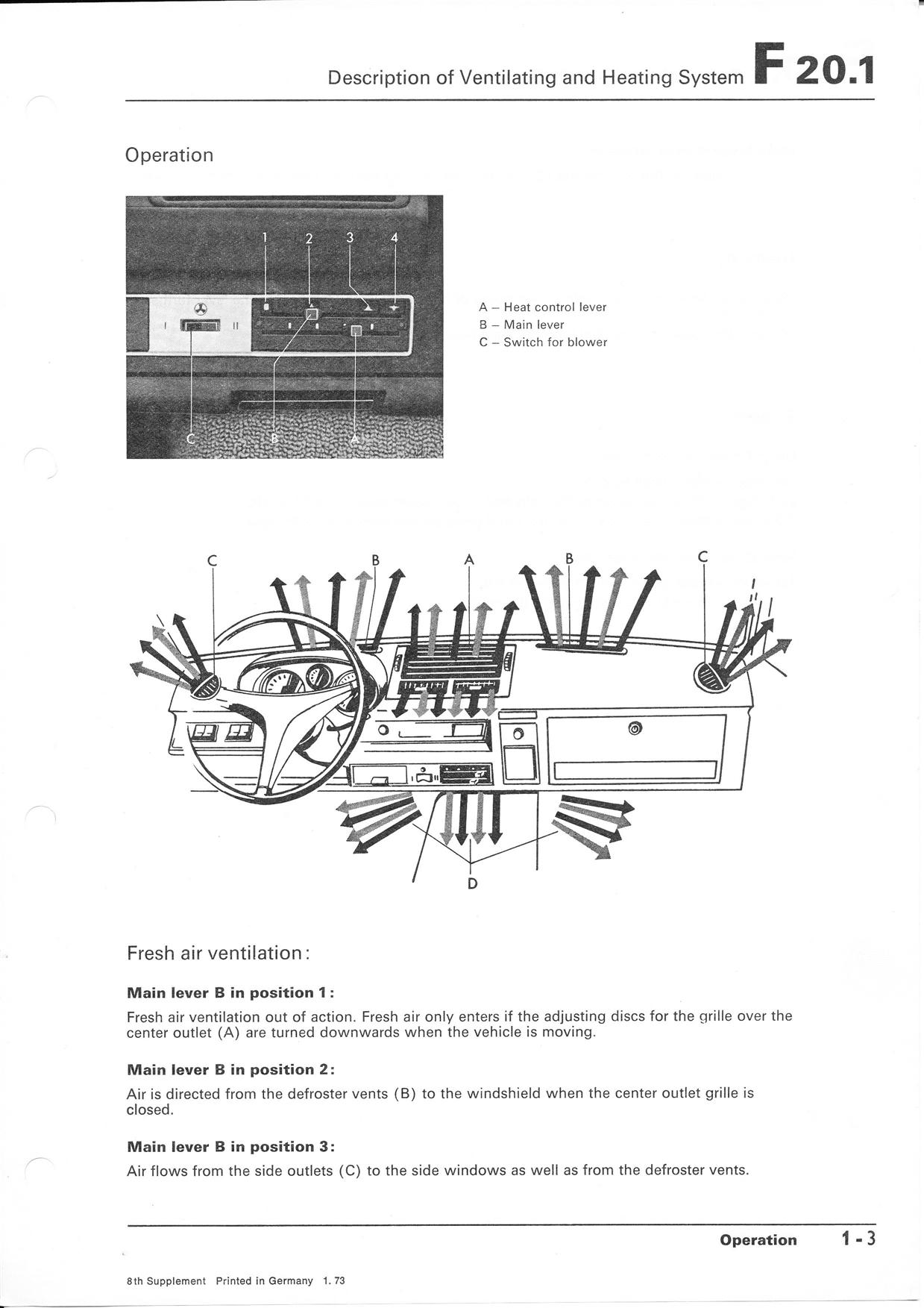

F5 - Fresh Air Heating, Water-cooled - Section F20 PDF (10 MB)

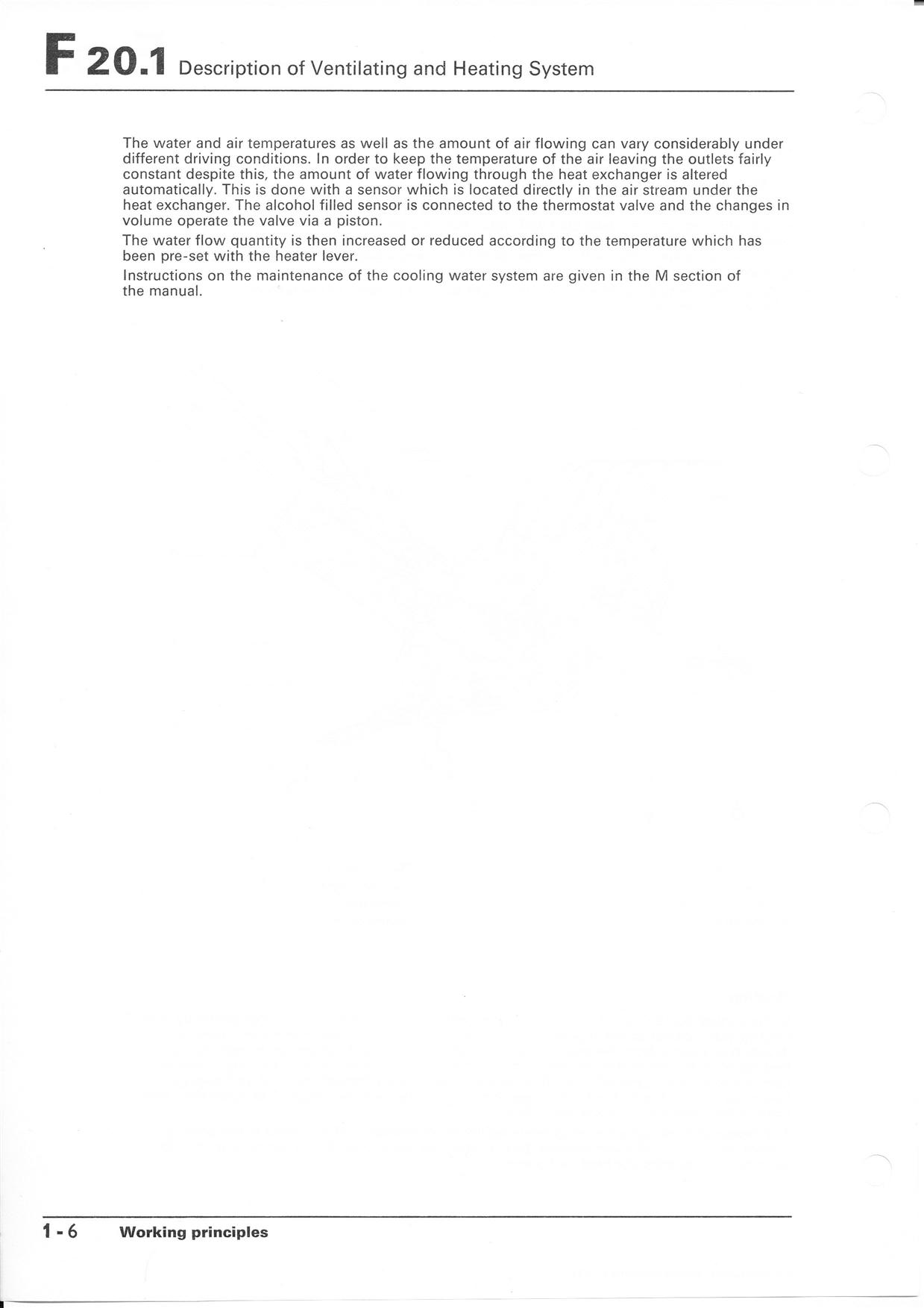

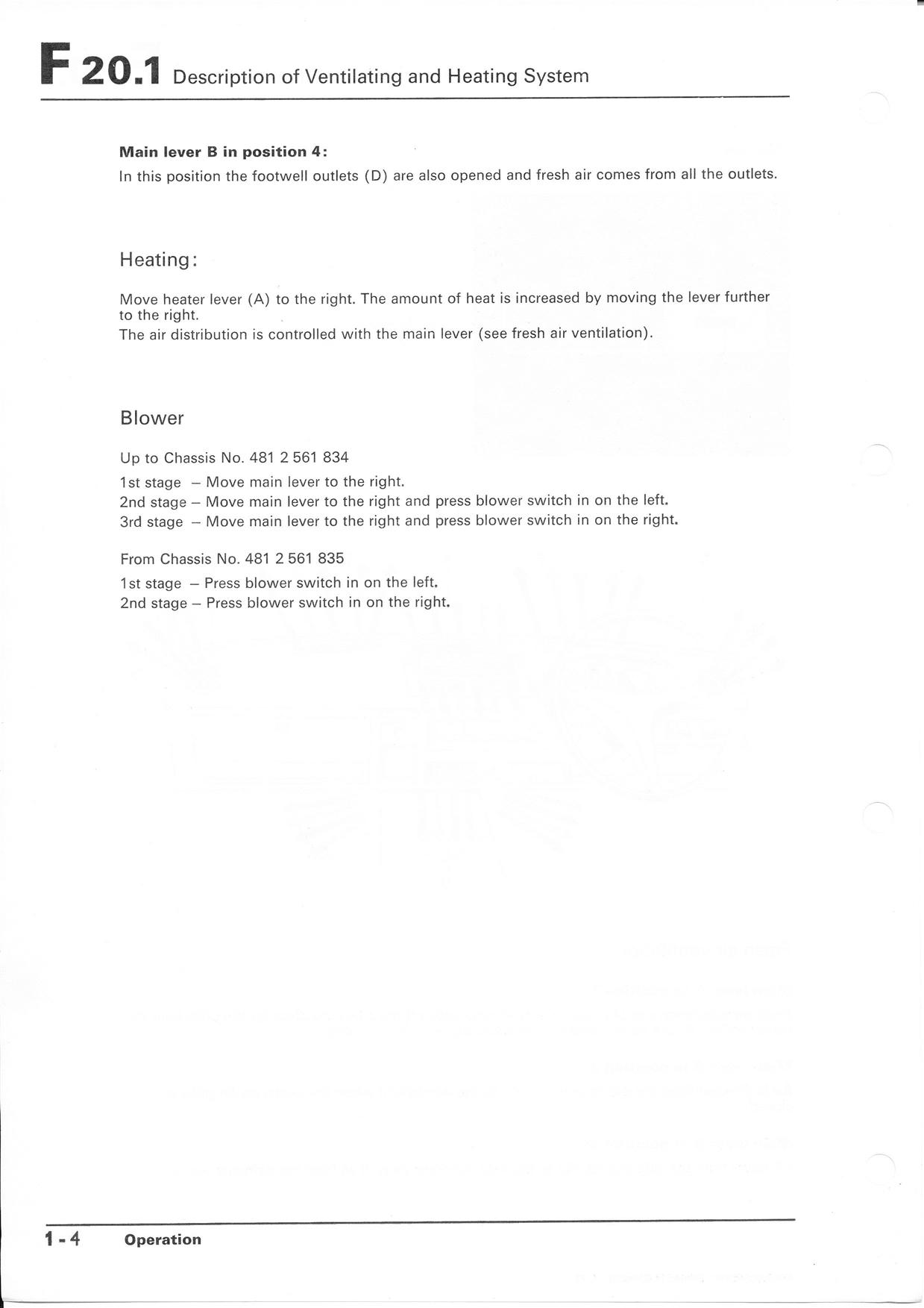

F20.1 1-1 - 1-3 1-4 1-5 1-6

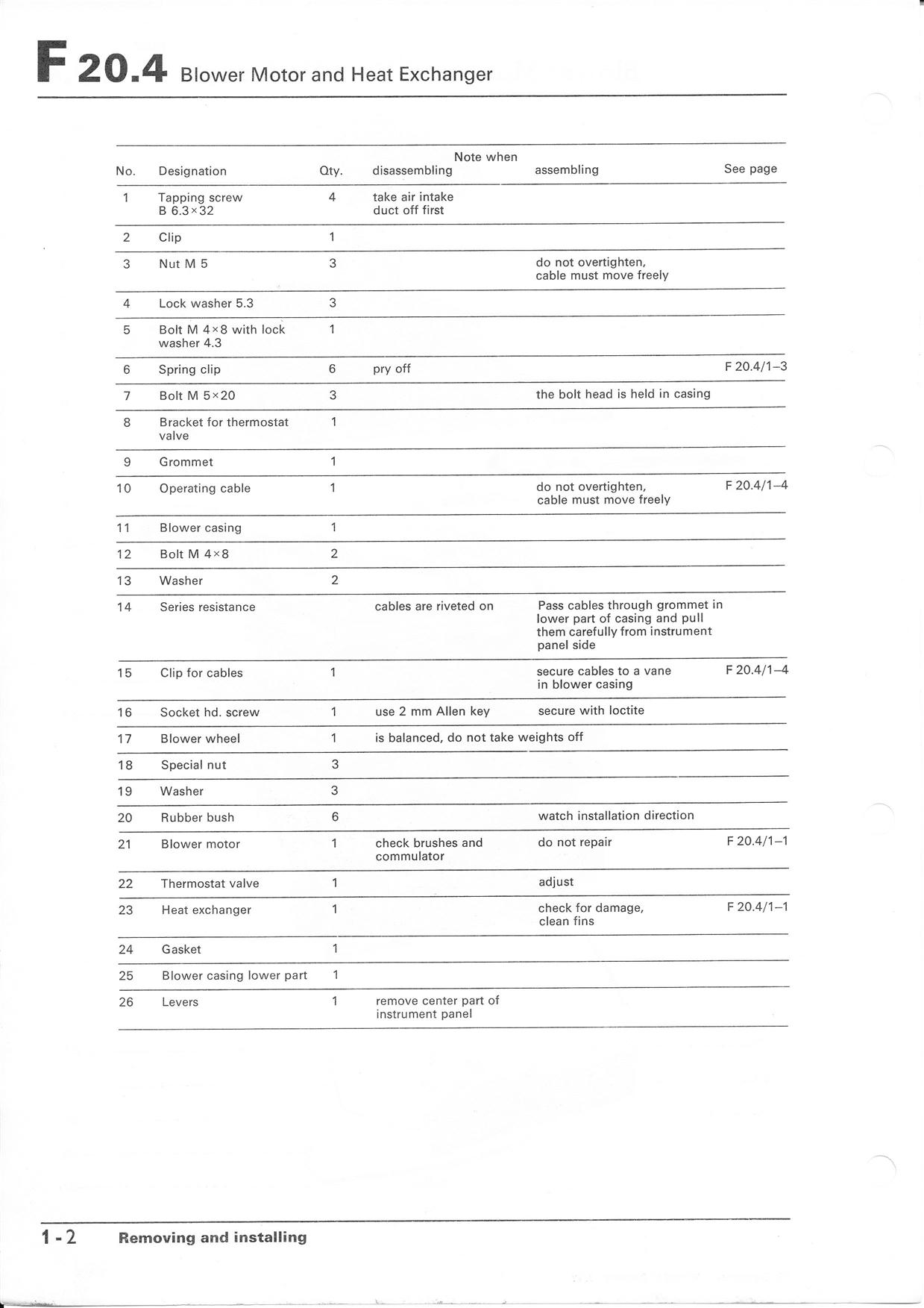

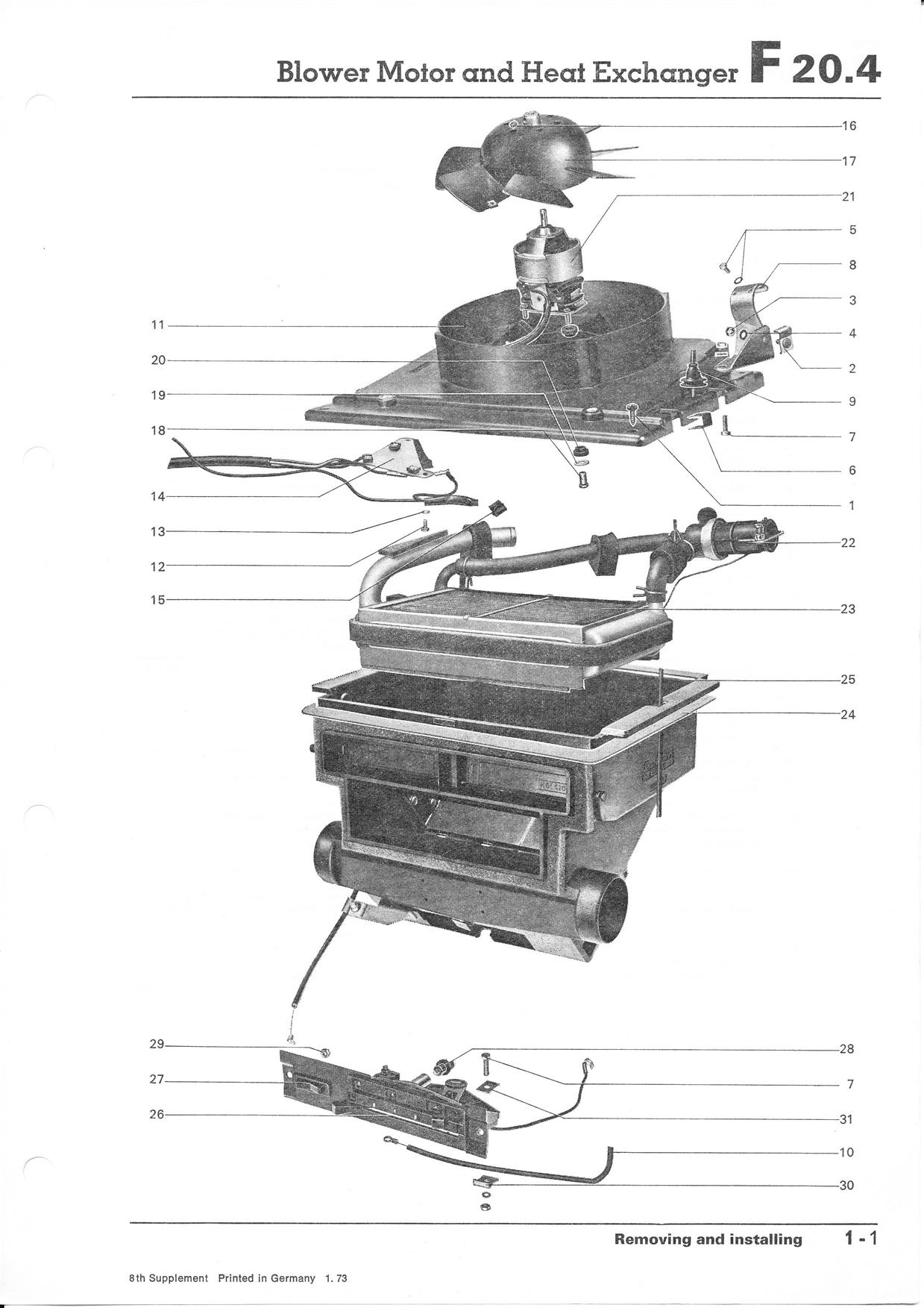

F20.4 1-1 1-2 1-3 1-4 1-5 1-6 1-7 1-8
