32 PHN/PHN-1 Tuning
Look, Listen, Do It Better Booklet No 16/17
detailing the tuning of the "new" Type 3 PHN carburetor
Click on any image to see it full size.

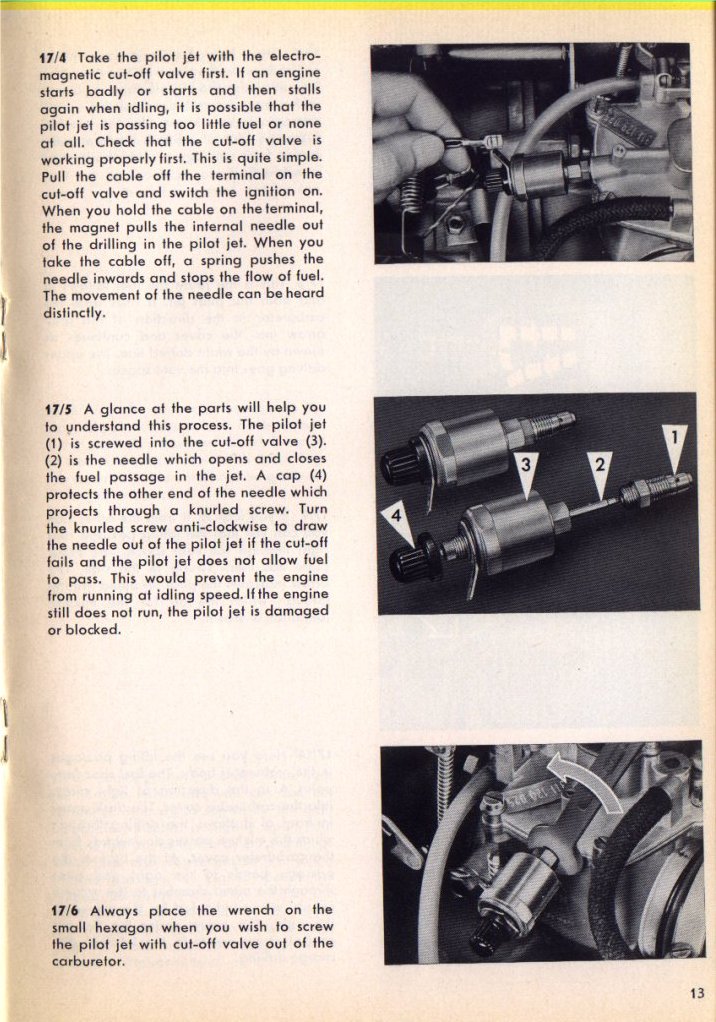

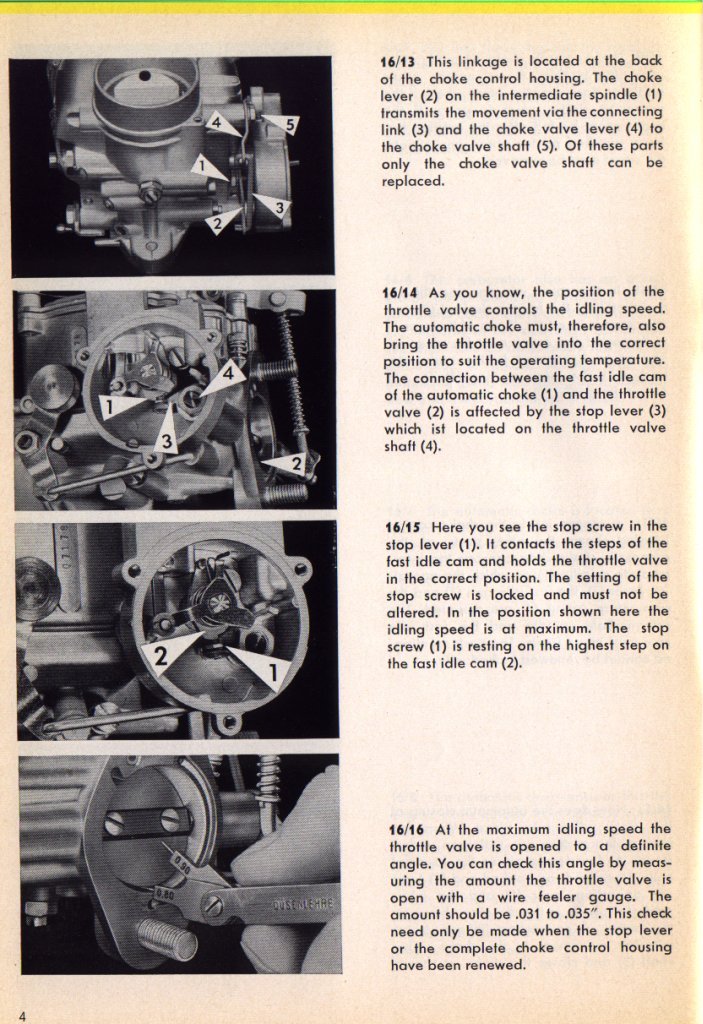

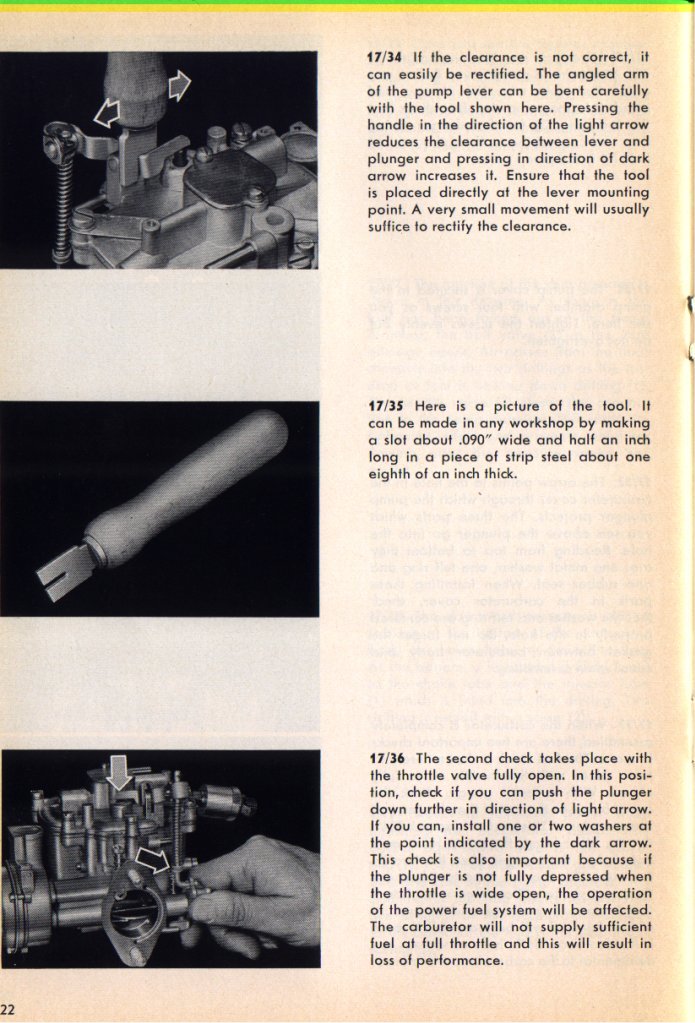

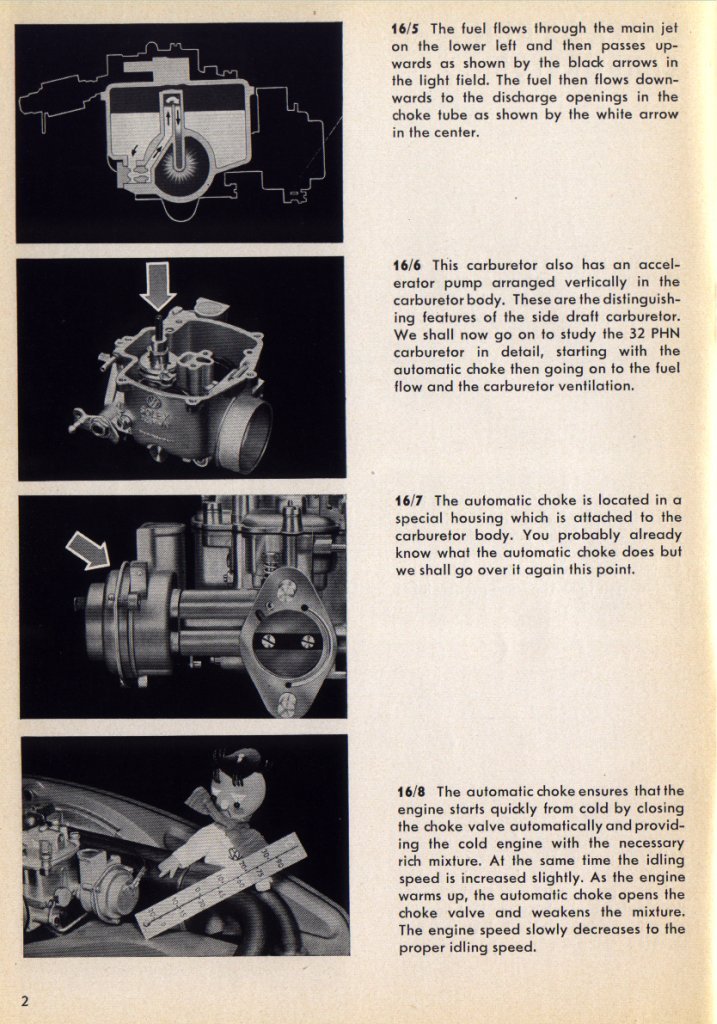

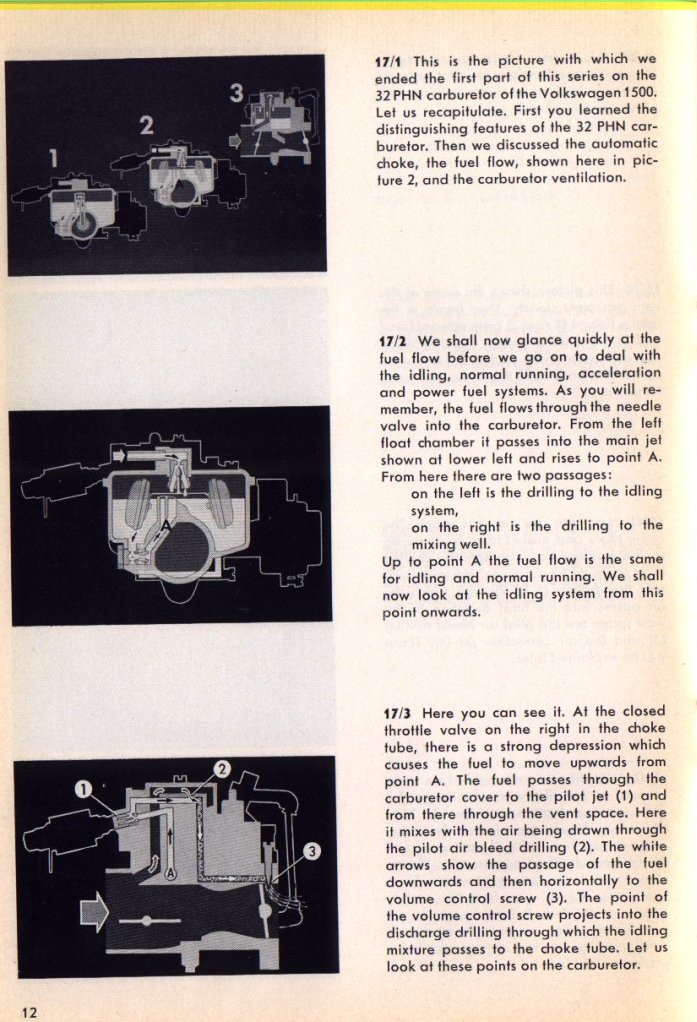

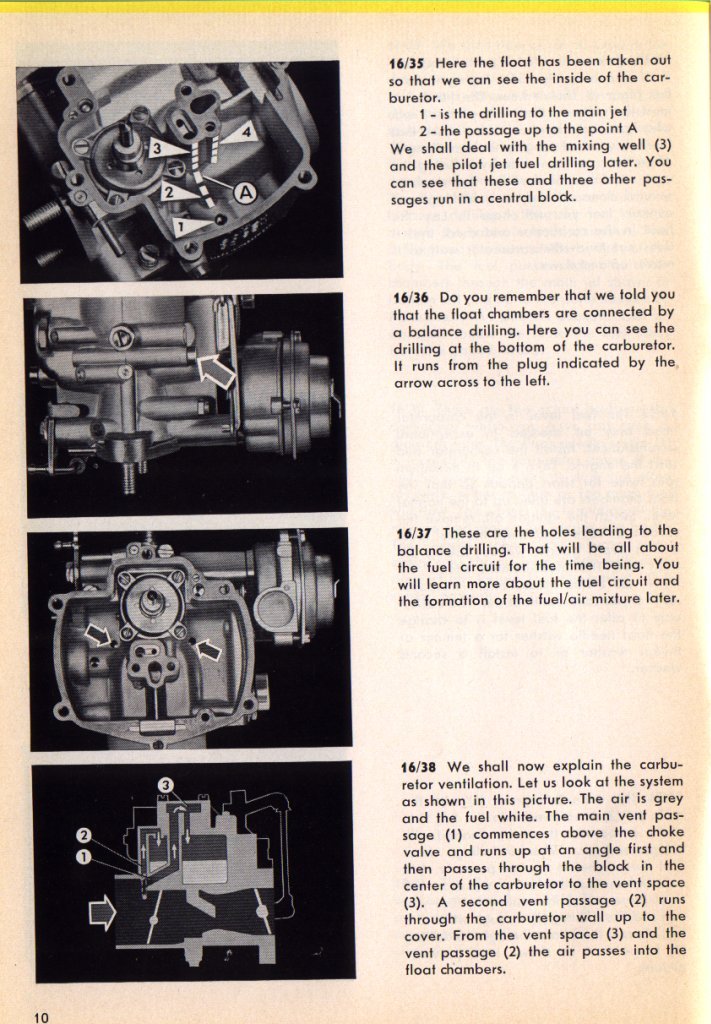

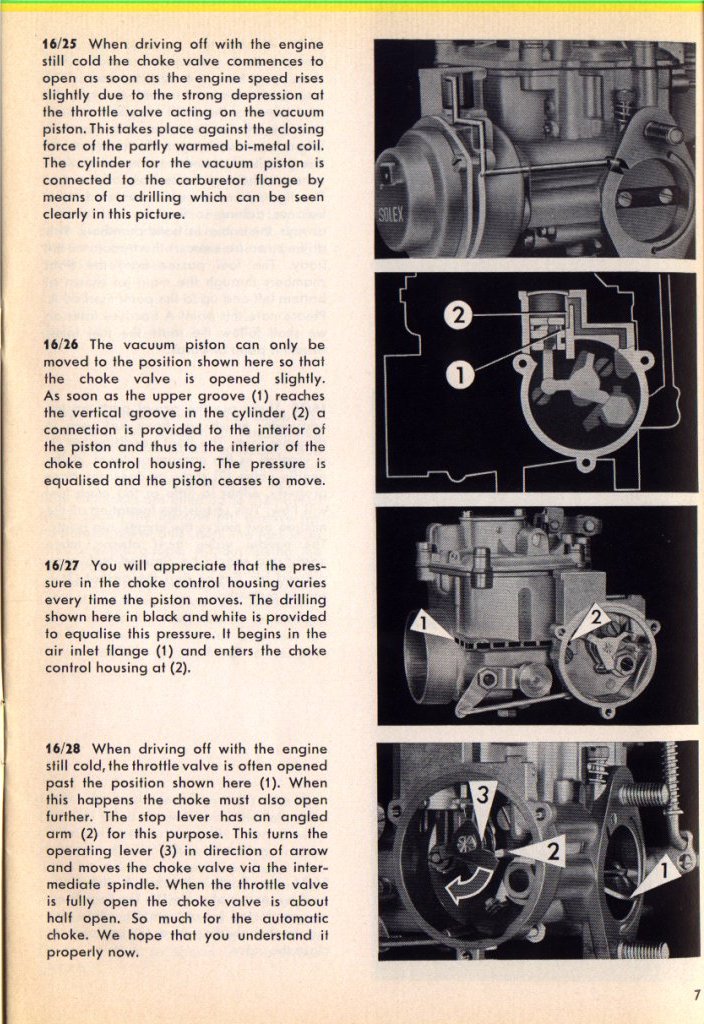

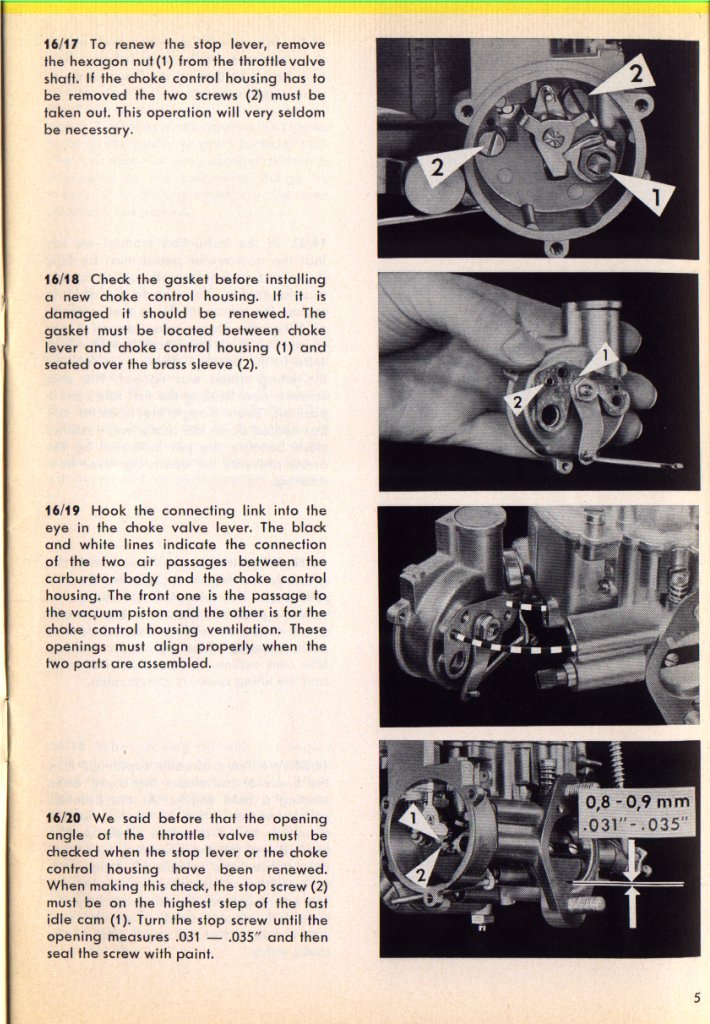

front.jpg (122247 bytes) 1.jpg (138293 bytes) 2.jpg (168802 bytes) 3.jpg (187490 bytes) 4.jpg (192930 bytes)

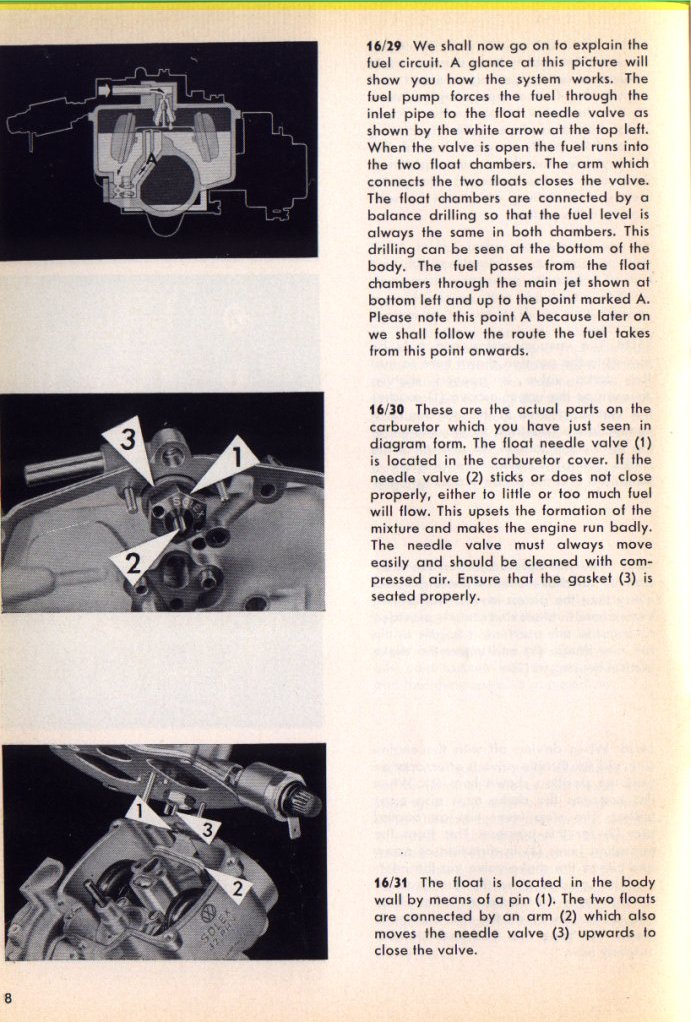

5.jpg (185379 bytes) 6.jpg (191614 bytes) 7.jpg (200637 bytes) 8.jpg (168087 bytes) 9.jpg (190768 bytes)
10.jpg (180044 bytes) 11.jpg (173642 bytes) 12.jpg (169864 bytes) 13.jpg (176419 bytes) 14.jpg (178660 bytes)

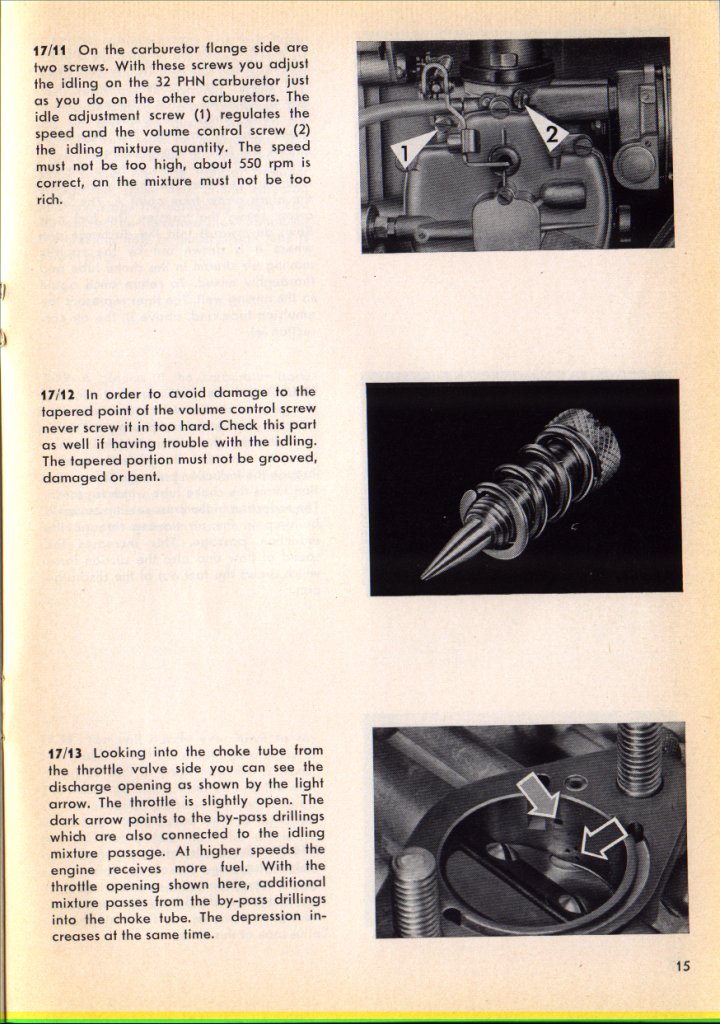

15.jpg (158125 bytes) 16.jpg (170884 bytes) 17.jpg (169999 bytes) 18.jpg (197947 bytes) 19.jpg (180233 bytes)

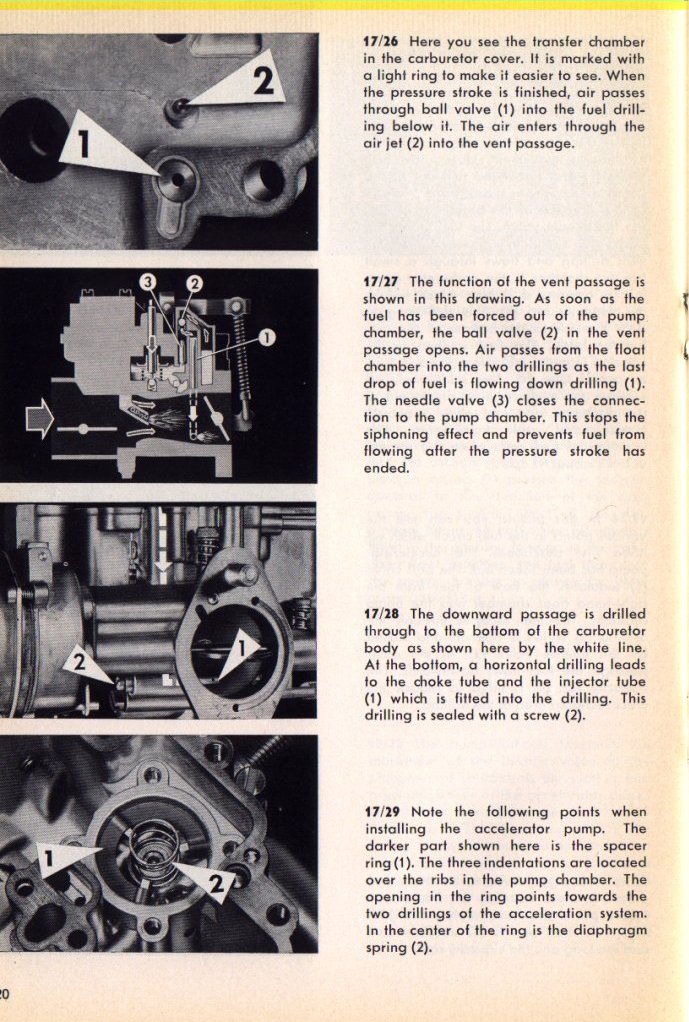

20.jpg (188430 bytes) 21.jpg (182638 bytes) 22.jpg (152268 bytes) 23.jpg (171711 bytes) 24.jpg (127913 bytes)

Download the entire brochure (4.2Mb)

PDF of the above manual (4.3 MB)
Please right-click on the link above and do "Save As..." to save it to your computer.
