Type 3 Wiring Diagrams
Contributions to this section are always welcome
| Instructions: | |
|
|
| Please Note: Some of the fuse boxes
pictured in the diagrams are rotated 180 degrees from how they actually mount in the car |
|
|
For additional Wiring Diagrams info, see
Electrical
System (E) in the Technical Bulletins
Index. For wire sizes, also see Wiring size conversion chart - German mm to USA AWG Also see Understanding European Wiring Diagrams from Motor Magazine |
|
| Year | Diagram | Key | Fuse box | Comments/Extras |
| 1961-3 |
 |
 |
 |
|
| 1961-3 |
 |
 |
 |

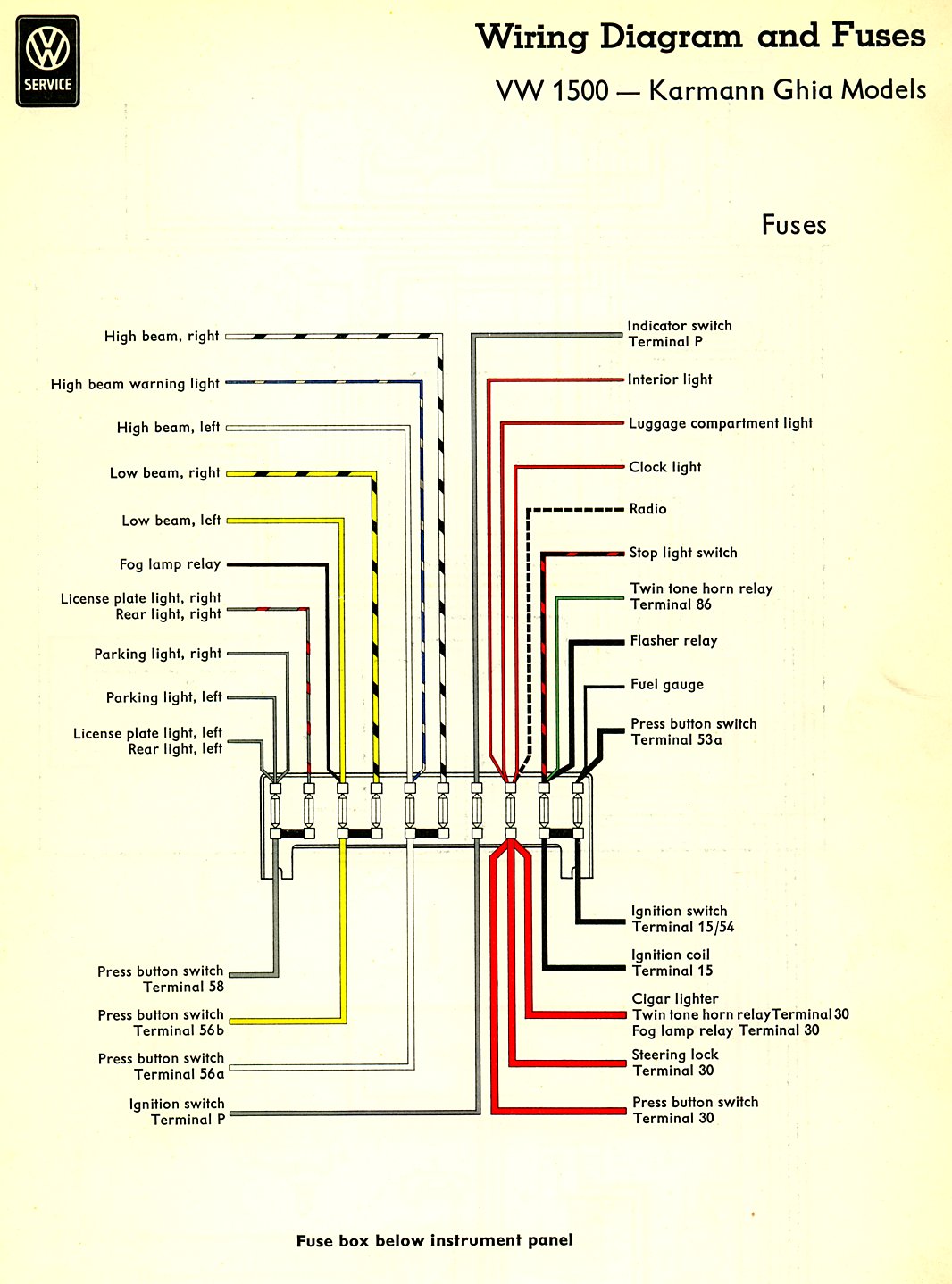

Type 34, Sept. 1961 Larger formats:

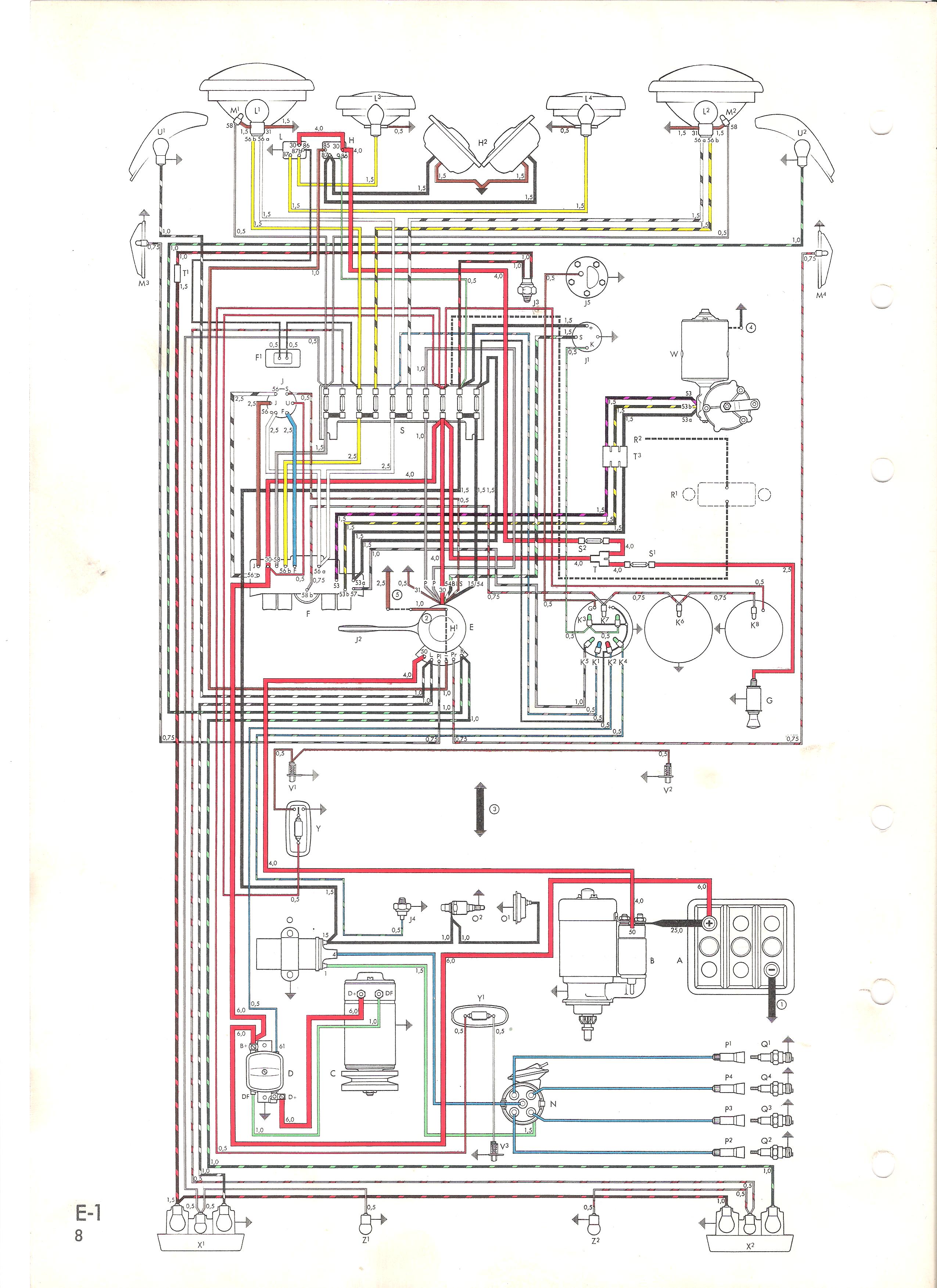

300 dpi

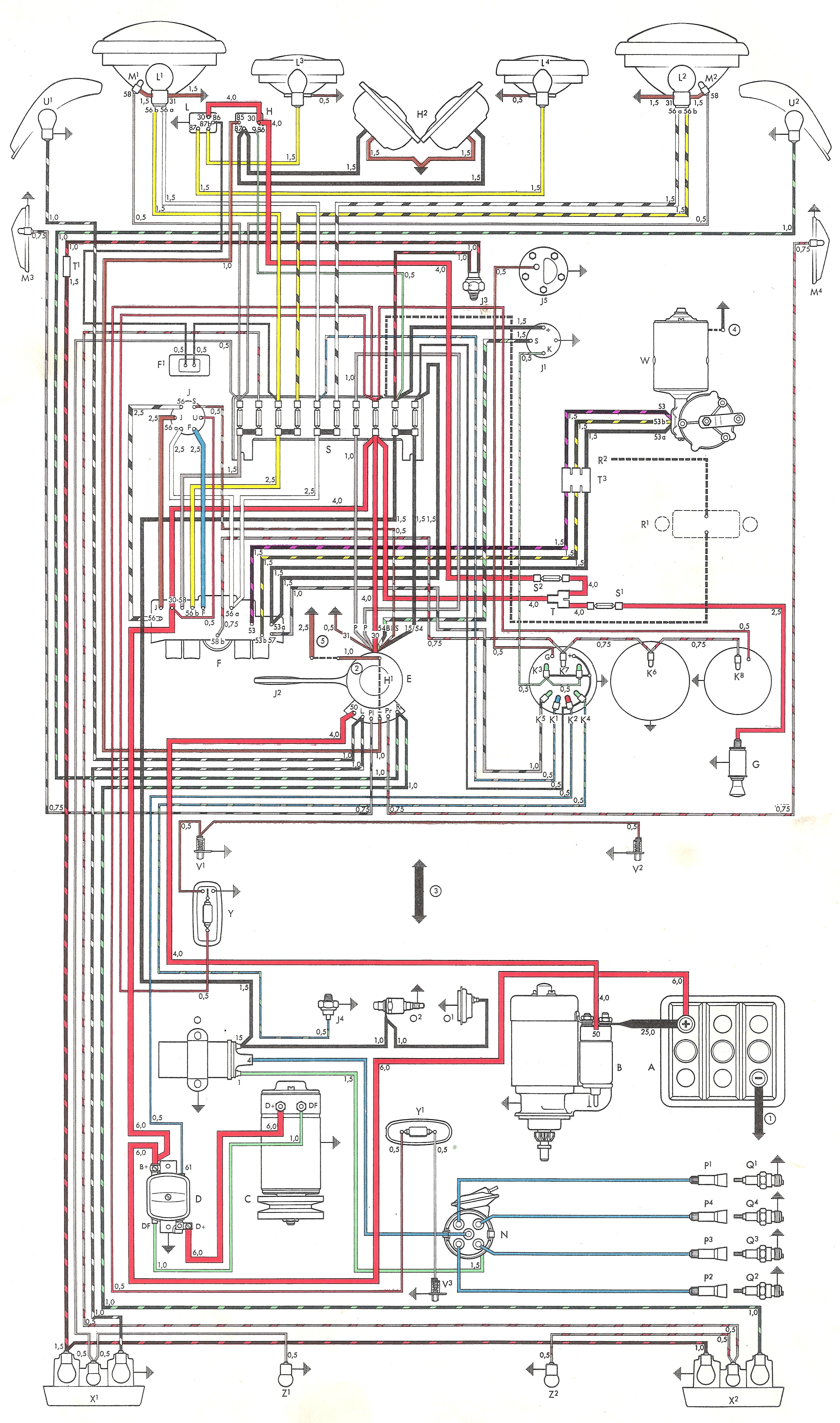

600 dpi

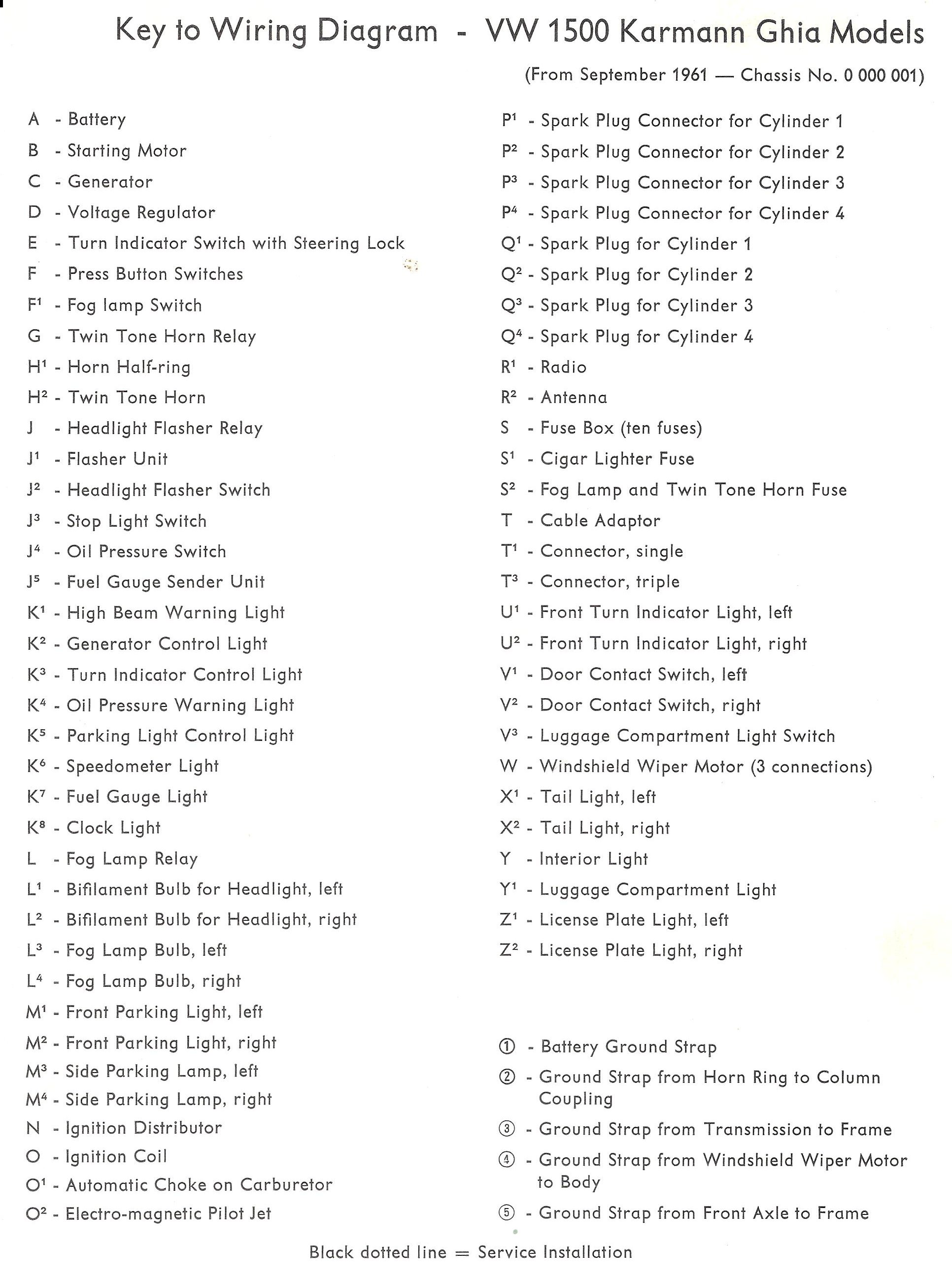

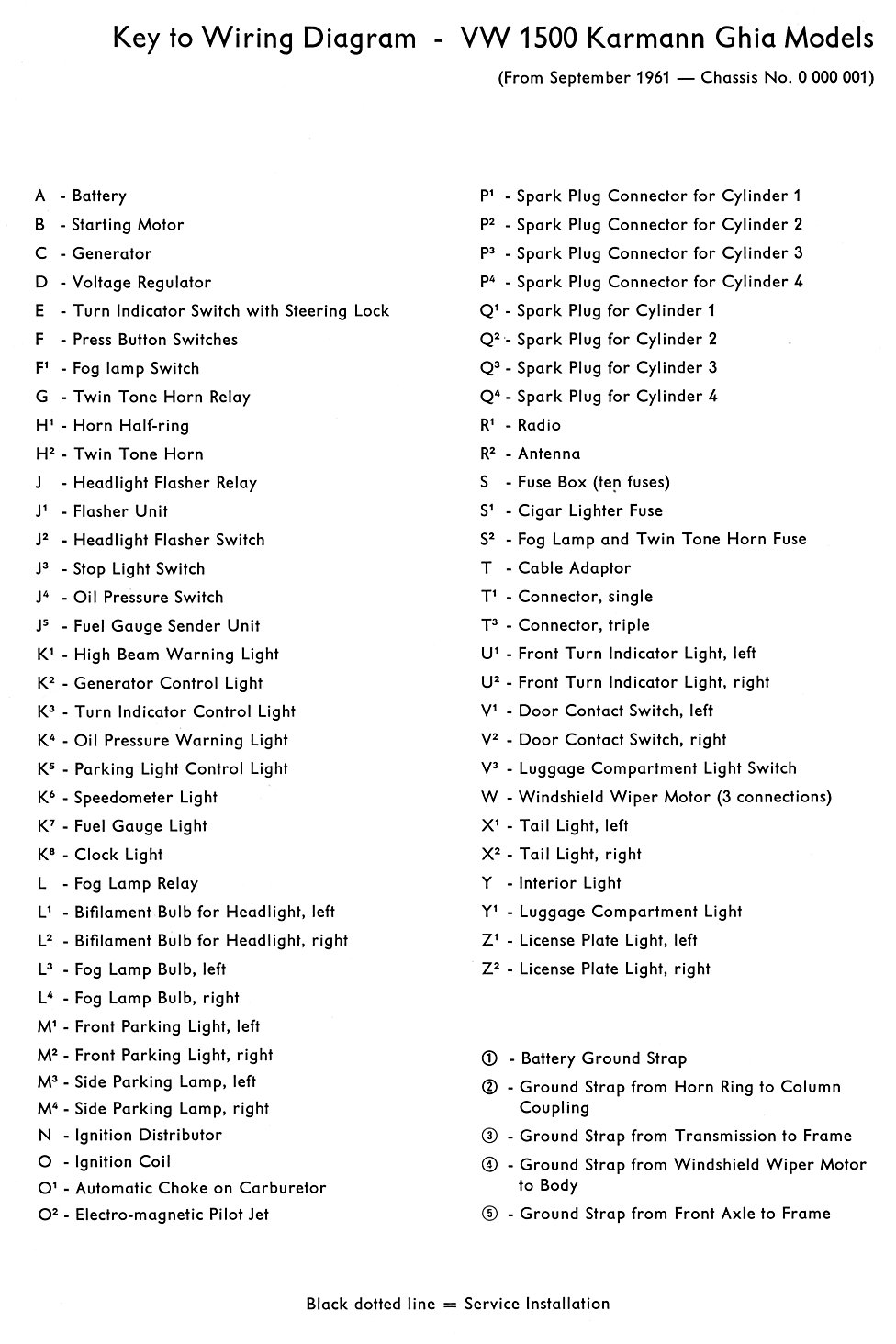

1200 dpi Key

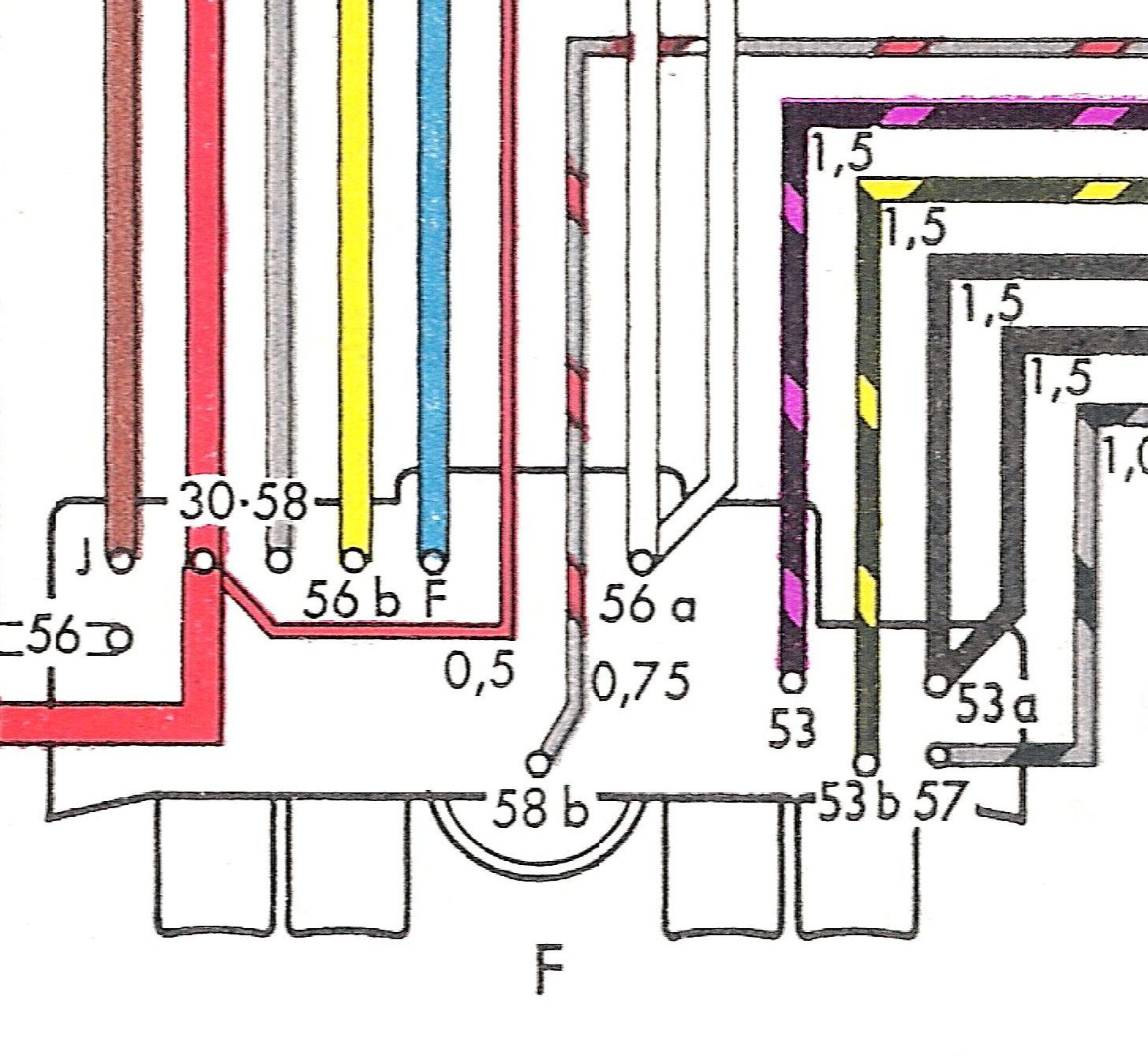

Push button dashPlease right-click to "Save As.." the above diagrams |
| 1964-5 |
 |
 |
 |

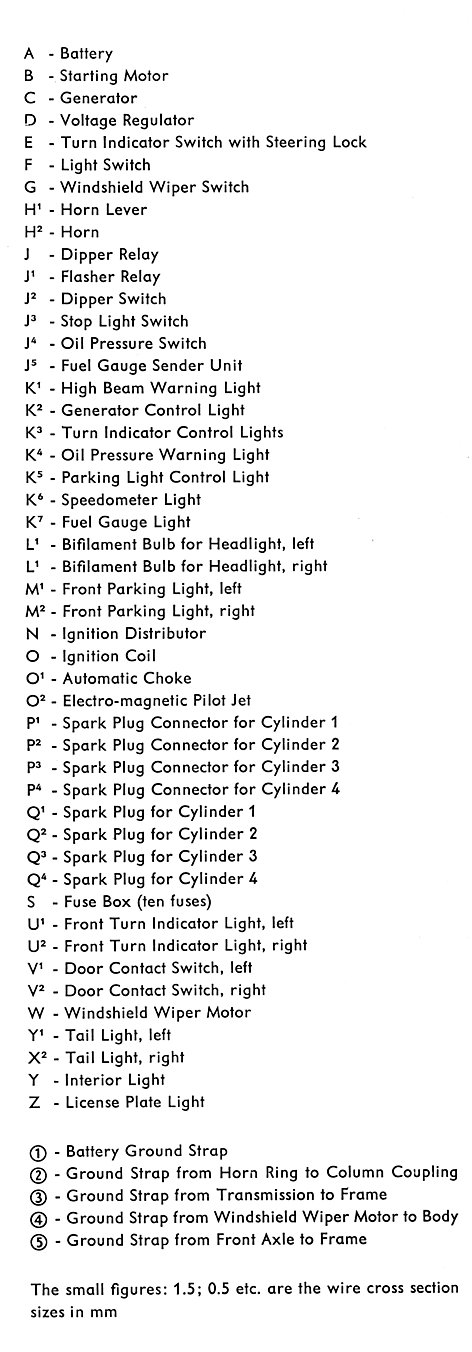

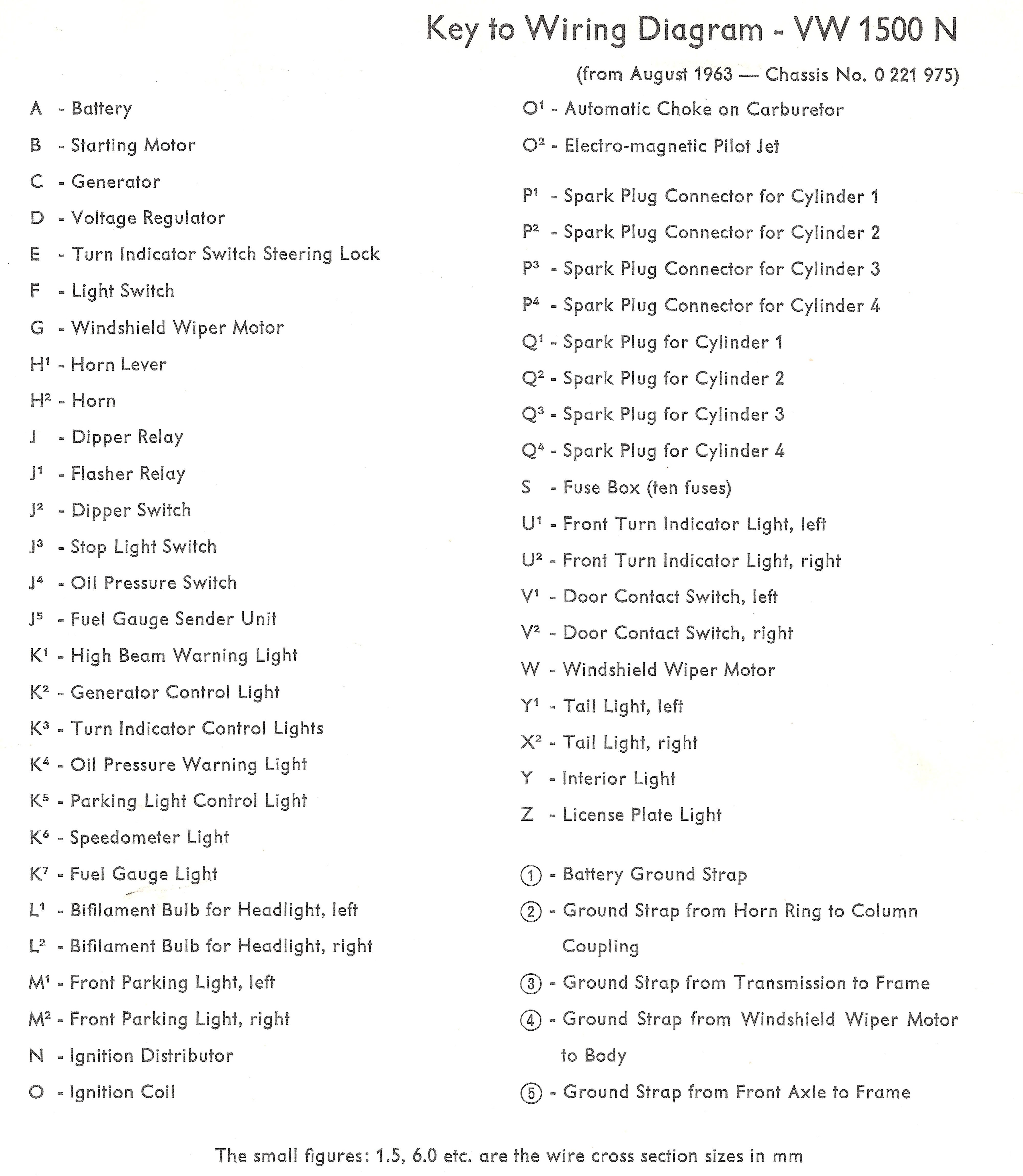

N Model Larger formats:
1200 dpi Key
Fuse boxPlease right-click to "Save As.." the above diagrams |
| 1964-5 |
 |
 |
N Model (Source #2) | |
| 1964-5 |
 |
 |
 |

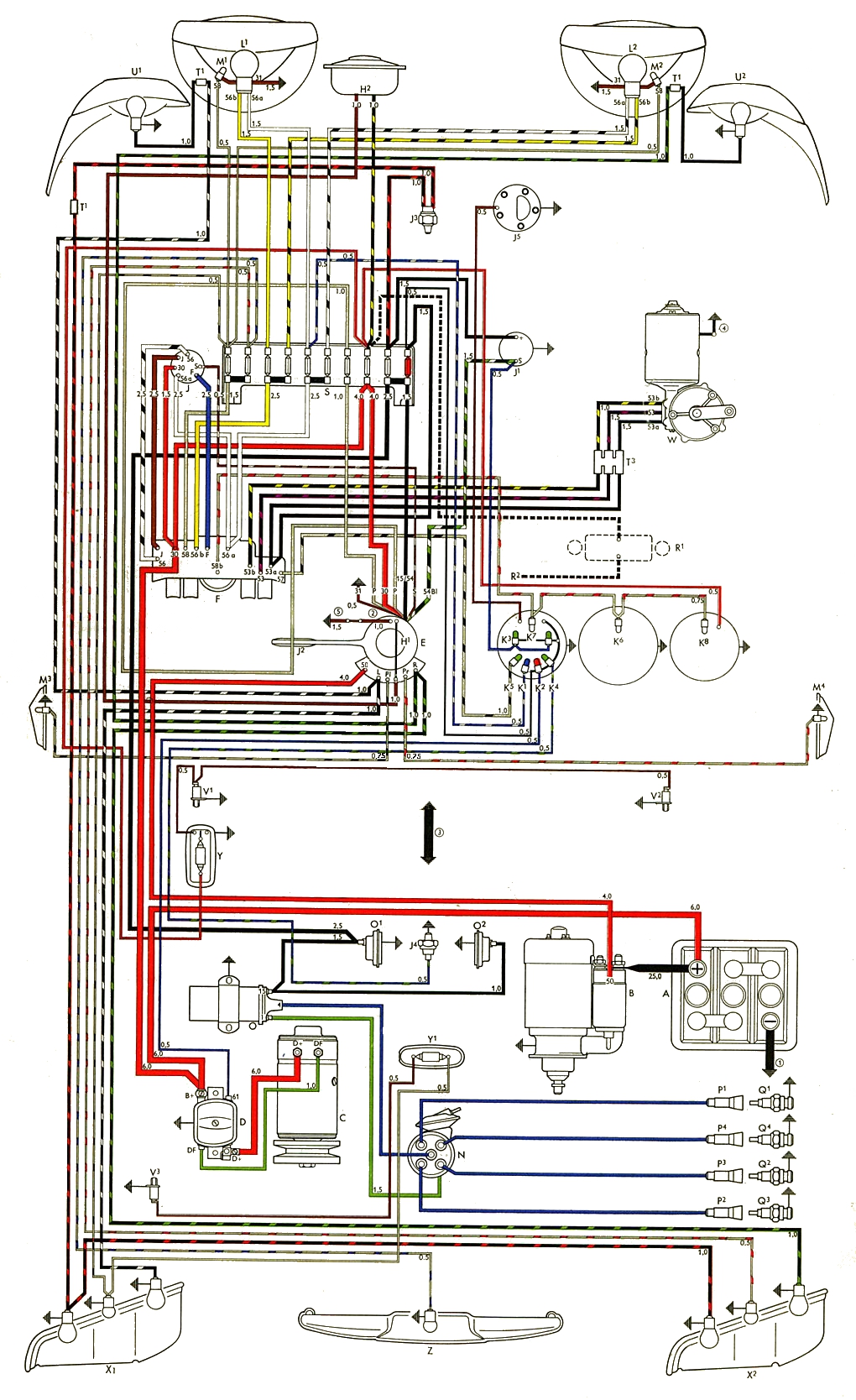

S Model Larger formats:
1200 dpi Key
Fuse box

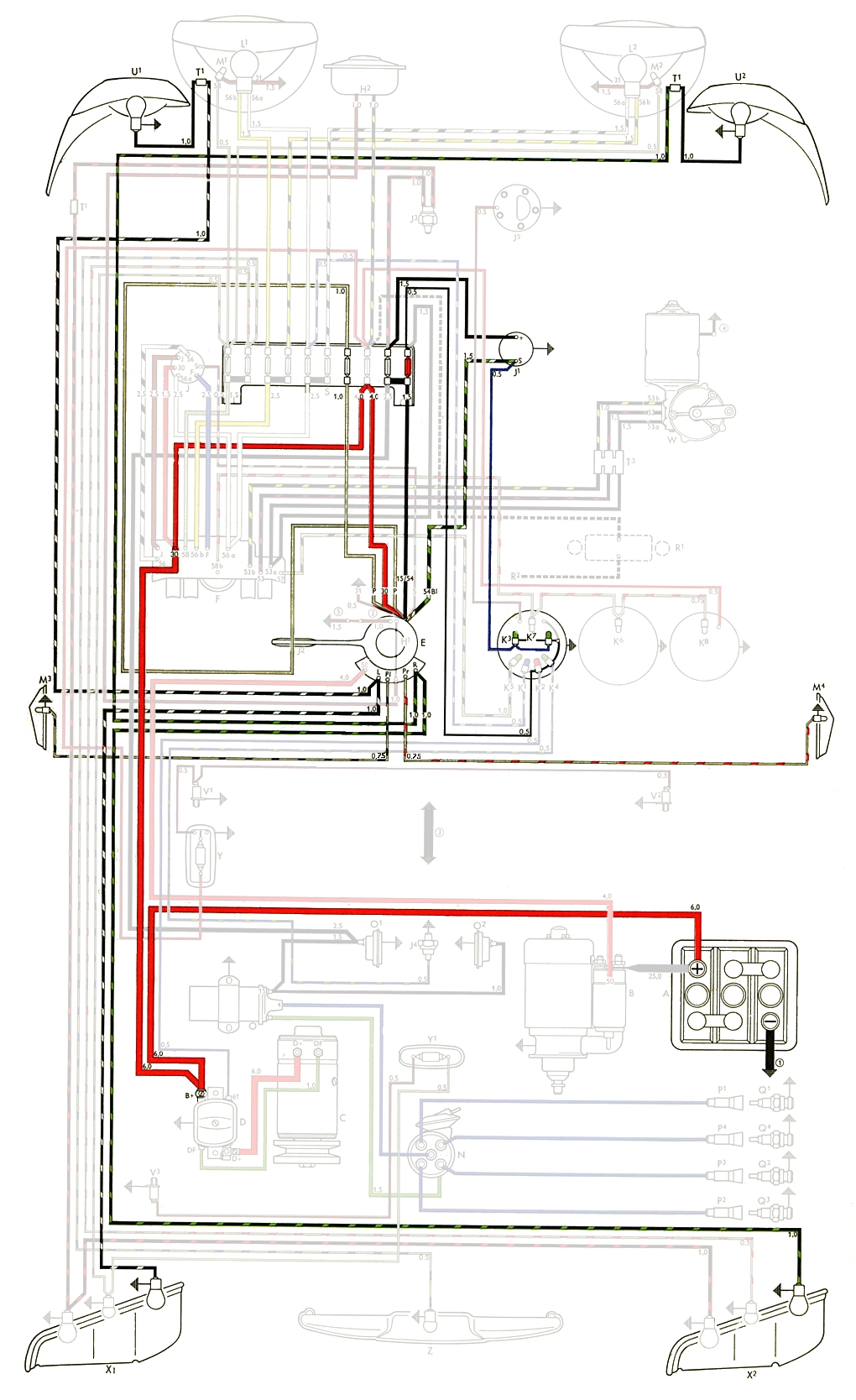

Turn signal highlight
Headlight highlightPlease right-click to "Save As.." the above diagrams |
| 1964-5 |
 |
 |
S Model (Source #2) | |
| 1964-65 |
 |
From National Automotive Service | ||
| 1964-66 |
 |
 |
Source #3 | |
| 1964-6 |
 |
 |

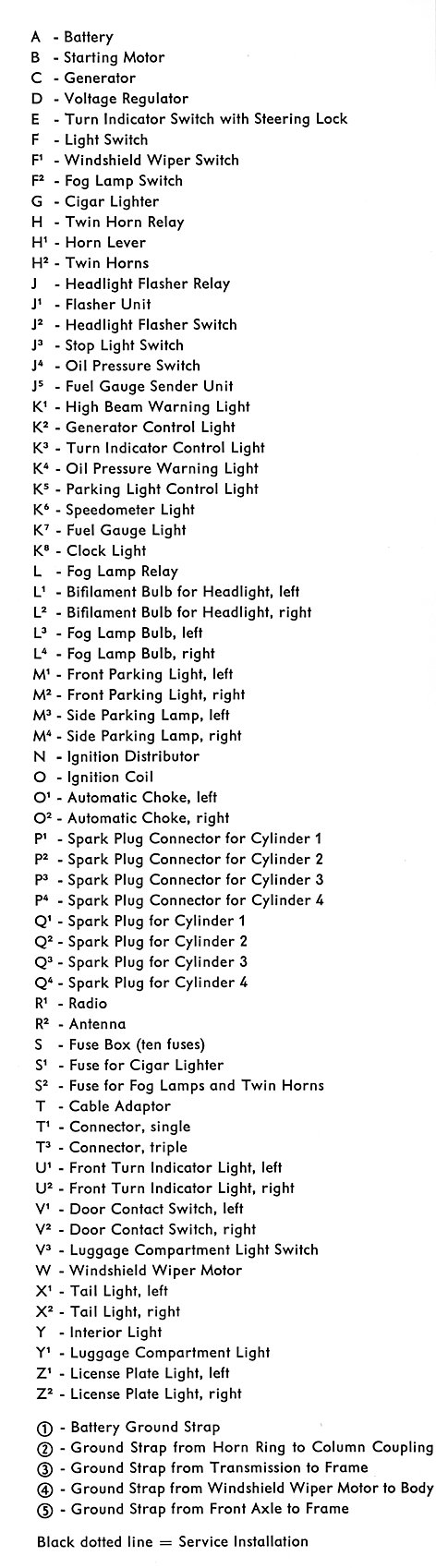

Type 34 - May, 1964 | |
| 1966 |
 |
 |
USA | |
| 1966 |
 |
From Motor's wiring | ||
| 1966-67 |
 |
From National Automotive Service | ||
| 1967 |
 |
 |
 |
USA |
| 1967 |
 |
 |
Non-USA, 1600TL | |
| 1967 |
 |
USA, Source #2 | ||
| 1967 |
 |
Non-USA, Source #2 | ||

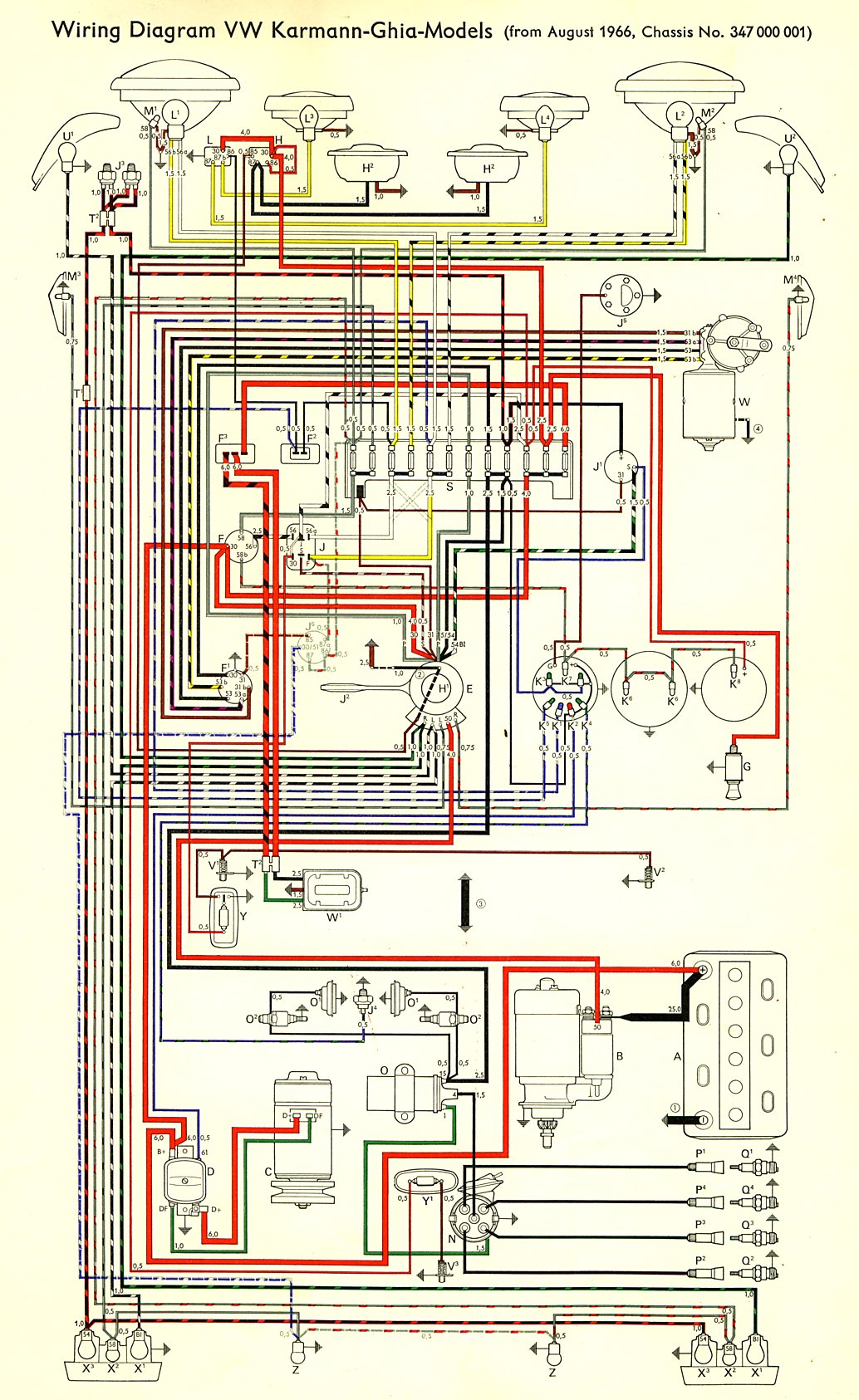

| 1967 |
 |
 |

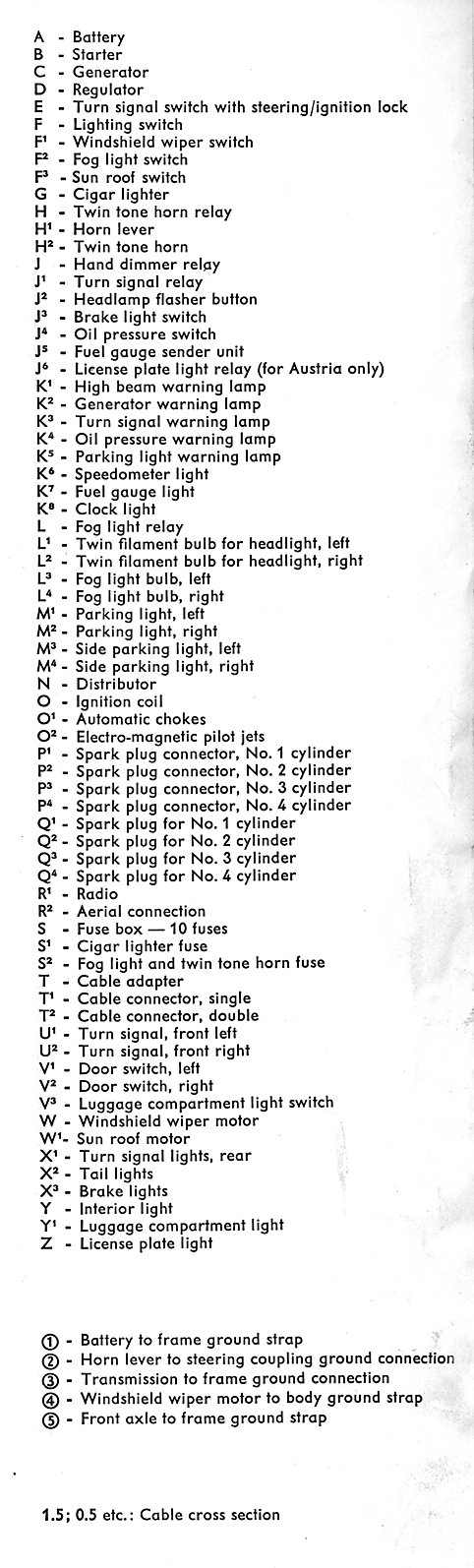

Type 34 | |
| 1967 |
 |
From Motor's wiring | ||
| 1968-70 |
 |
 |
 |
|
| 1968-70 |
 |
From National Automotive Service | ||
| 1970 |
Additional wiring, USA |
|||
| 1971 |
 |
 |
Lighting supplement
Additional wiring |
|
| 1972 |
  |
Lighting supplement |

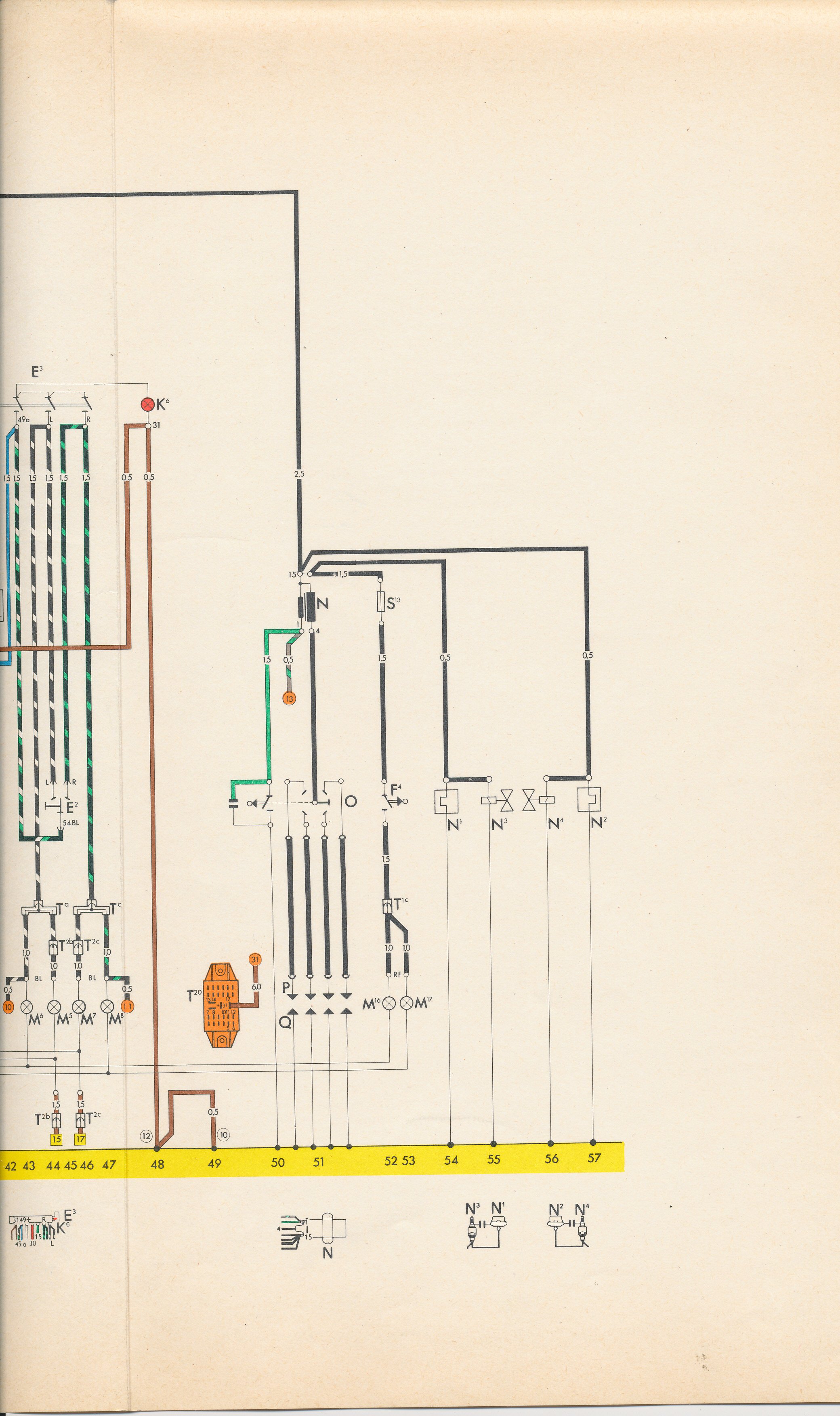

||
| 1973 |
    |

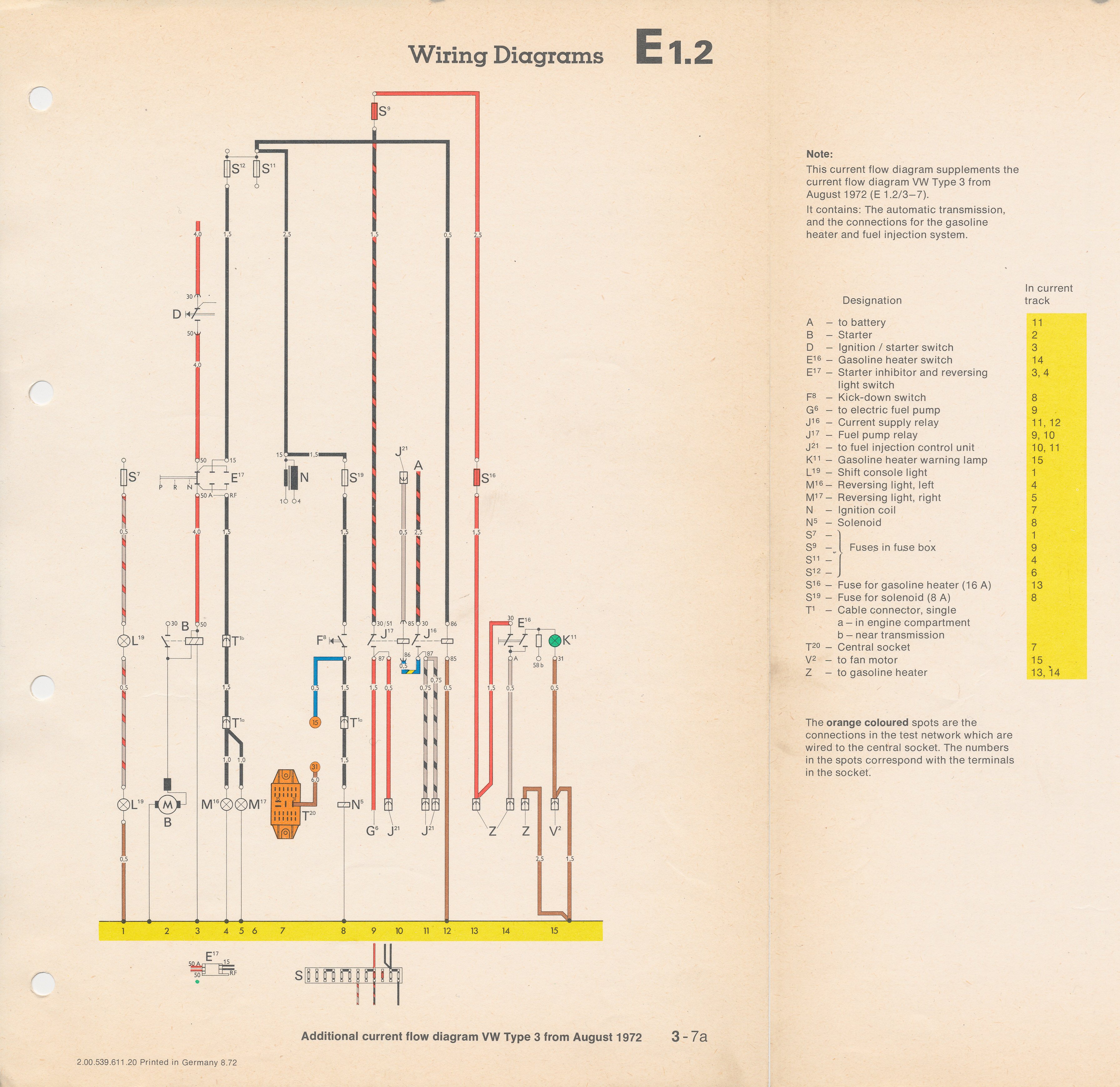

Additional wiring
Additional wiring, USA |
||
| 1973 |
   |
Contributors to this page include Misterbill
